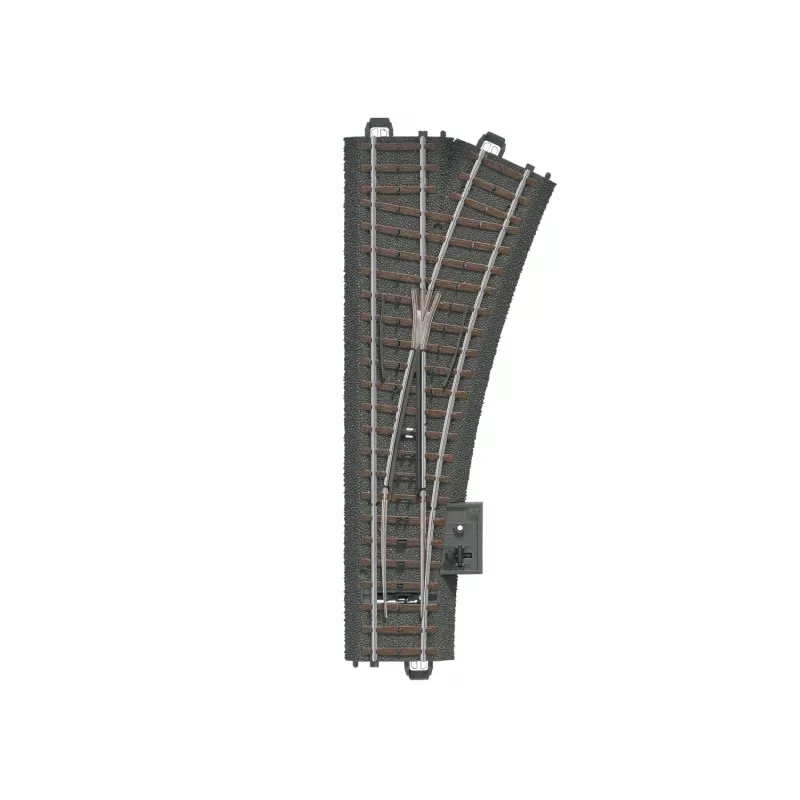

Märklin H0 binario C scambio destro 188,3 mm con massicciata (24612)

Expanding a Märklin H0 layout often means fitting turnouts into tight spaces without sacrificing reliable operation. The Märklin 24612 C-Track right hand turnout solves this with a compact 188.3 mm length and an integrated roadbed that matches the rest of the C-Track system, so you can add sidings, passing loops, or station approaches without complex benchwork.

Who is it for

This turnout is for H0 scale modellers using the Märklin C-Track system, especially those with limited space or a need for a right hand diverging route. It is suitable for both permanent layouts and temporary floor setups, as the built-in roadbed provides stable alignment and easy connection.

Main features

• Right hand turnout with 188.3 mm length and 24.3° diverging angle.

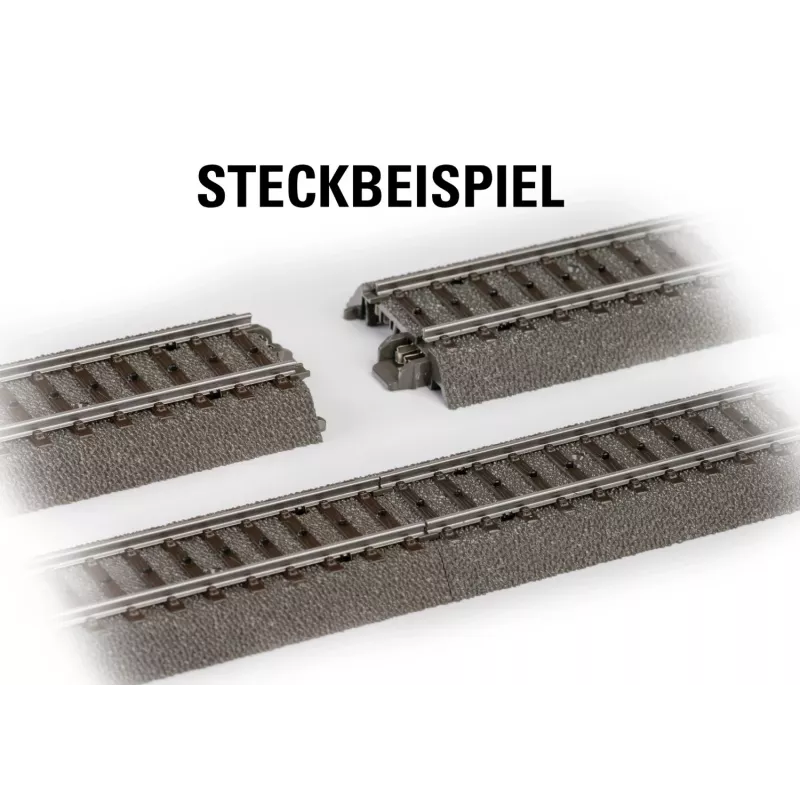

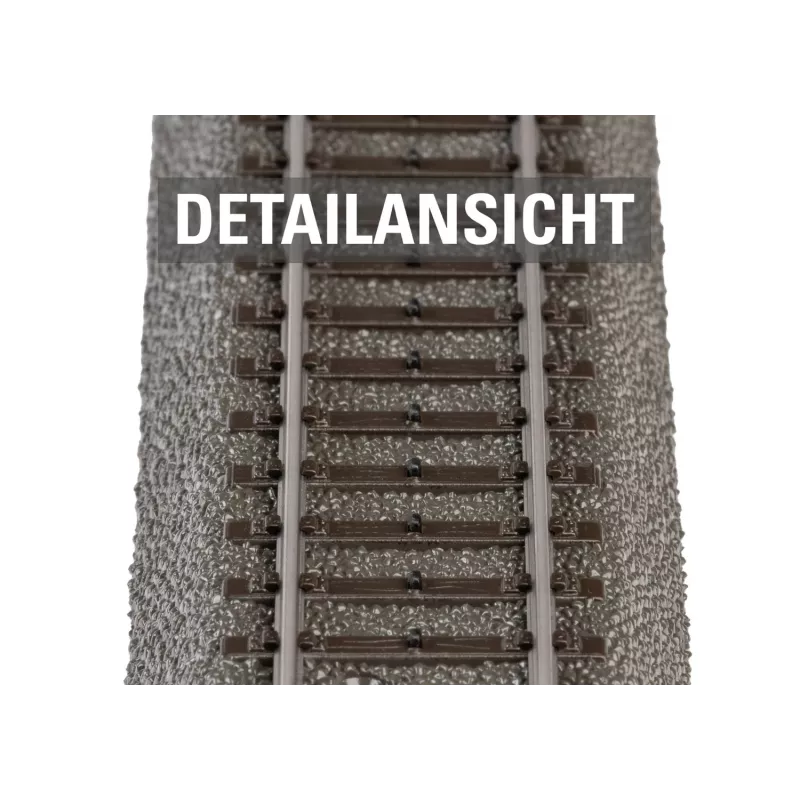

• Integrated plastic roadbed, matching the C-Track profile for seamless integration.
• Metal rails with 16.5 mm gauge for reliable three-rail AC operation.
• Manual operation as standard, upgradeable with electric turnout drive 74491 or digital decoder 74462 (sold separately).
• Diverging radius R2 (437.5 mm) for smooth running of most rolling stock.

Specifications

• Brand: Märklin
• Model: 24612
• MPN: 24612
• EAN: 4001883246123
• Track system: Märklin C-Track
• Scale: H0 (1:87)
• Gauge: 16.5 mm
• Turnout hand: Right
• Track length: 188.3 mm
• Turnout angle: 24.3°
• Diverging radius: R2 (437.5 mm)
• Roadbed: Integrated
• Operation: Manual (upgradeable to electric)
• Material: Plastic roadbed, metal rails

Tips

For remote operation, add the Märklin 74491 electric turnout drive. If you plan to use digital control, install decoder 74462. This turnout works best with other C-Track sections and is ideal for creating a passing siding or a branch line.
