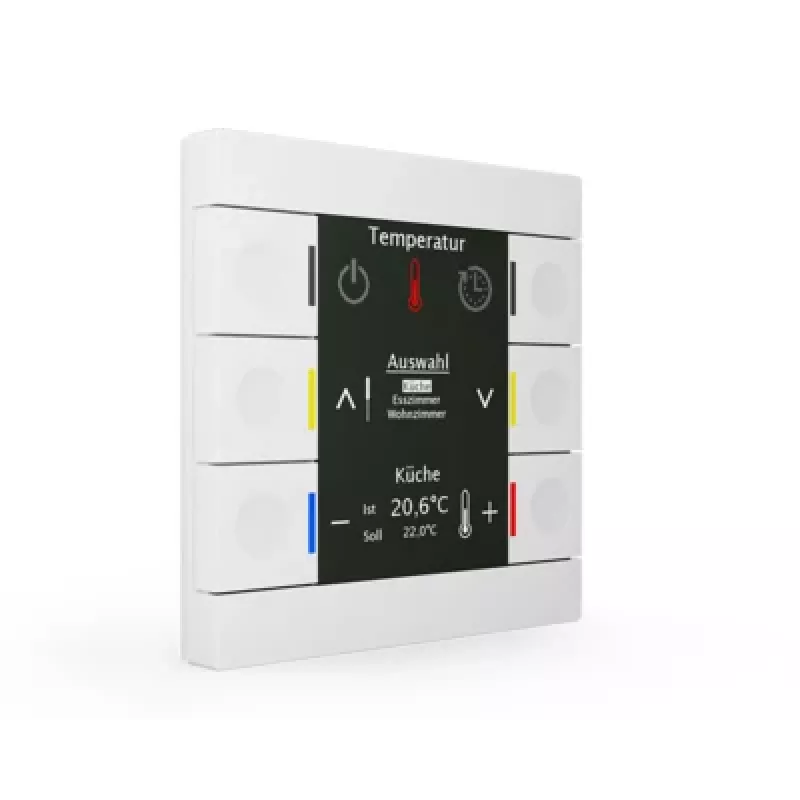

MDT BE-BZS86.01 Smart Control Center 86mm plastica bianco puro lucido

For building automation professionals and KNX integrators, the MDT BE-BZS86.01 Smart Control Center offers a centralized interface for managing room functions. Its 3.5-inch IPS color display and six capacitive touch buttons provide intuitive control over lighting, shading, climate, and scenes directly from the wall.

Key specifications

• System protocol: KNX
• Display: 3.5" IPS color, 320 x 240 pixels
• Operation: 6 capacitive touch buttons
• Integrated sensors: temperature, humidity, air pressure, CO2, brightness, presence (PIR)
• Functions: room thermostat, scene control, timer, logic, alarm, visualization
• Mounting: flush-mounted in 86mm or 60mm box
• Material: plastic, pure white glossy
• Power supply: KNX bus voltage
• Protection class: IP20
• Operating temperature: 0°C to +45°C
• Configurable display pages: up to 12
• Logic blocks: up to 6
• Timer functions: up to 6
• Alarm functions: up to 6
• Firmware update: via KNX ETS
• User interface: customizable icons and backgrounds

Why choose it

This device combines multiple sensors and control functions in one compact unit, reducing the need for separate room controllers. Its customizable interface allows adaptation to specific project requirements, while KNX compatibility ensures seamless integration into existing smart building systems.

Ideal use cases

• Hotel rooms and offices requiring centralized room control
• Residential smart homes with KNX infrastructure
• Meeting rooms needing scene and climate management

Good to know

The control center is powered directly from the KNX bus, eliminating the need for an additional power supply. Configuration is performed via ETS software, allowing integrators to tailor functionality to each installation.
