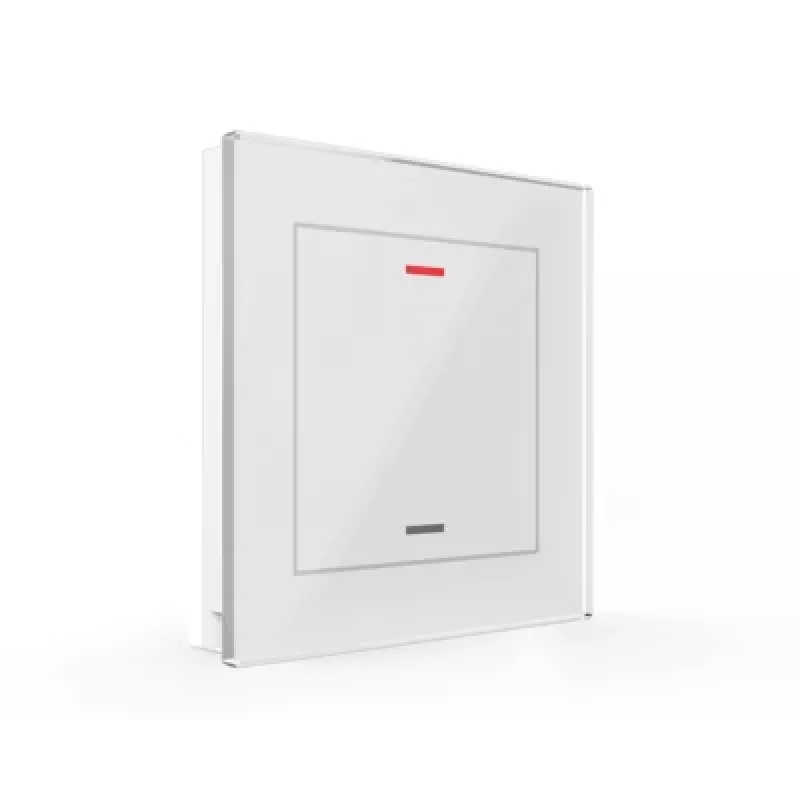

MDT BE-GTL10W.01 Glass Touch Sensor II Light 1 canale RGBW, bianco

The MDT BE-GTL10W.01 Glass Touch Sensor II Light stands out with its capacitive glass surface and RGBW status LEDs, offering precise control and visual feedback for KNX installations. Unlike conventional push-buttons, it combines a sleek white glass design with integrated temperature and brightness sensors, enabling intelligent automation without additional devices.

Highlights

• 1-gang capacitive glass touch surface with up to two functions per button (short/long press, toggle)
• RGBW status LEDs with adjustable colour and brightness for clear indication
• Integrated temperature and brightness sensors for environmental monitoring
• Supports dimming, blind/shutter control, scene control (up to 8 scenes), and logic functions
• Flush-mounted installation in standard wall box, powered directly from KNX bus

In daily use

Configure via ETS5 or higher to tailor each touch surface to your needs. The device operates reliably from 0°C to +45°C, making it suitable for residential and commercial spaces. Its glass and plastic construction ensures durability while maintaining a premium appearance.

Full specifications

• Bus system: KNX
• Number of buttons: 1-gang
• Functions per button: up to 2
• Design: capacitive glass touch surface
• Colour: white
• Status indication: RGBW LEDs (adjustable colour and brightness)
• Orientation light: yes, RGBW (adjustable colour and brightness)
• Integrated temperature sensor: yes
• Integrated brightness sensor: yes
• Installation type: flush-mounted
• Power supply: KNX bus (approx. 10 mA)
• Configuration software: ETS5 or higher
• Material: glass, plastic
• Operating temperature: 0°C to +45°C
• Protection class: IP20
• Firmware update: yes, via ETS
• Logic functions: yes (AND, OR, XOR, gate functions)
• Scene control: yes (up to 8 scenes)
• Dimming control: yes (relative and absolute)
• Blind/shutter control: yes

Final note

With its integrated sensors and versatile control options, the MDT Glass Touch Sensor II Light is a comprehensive solution for modern KNX smart homes and buildings.
