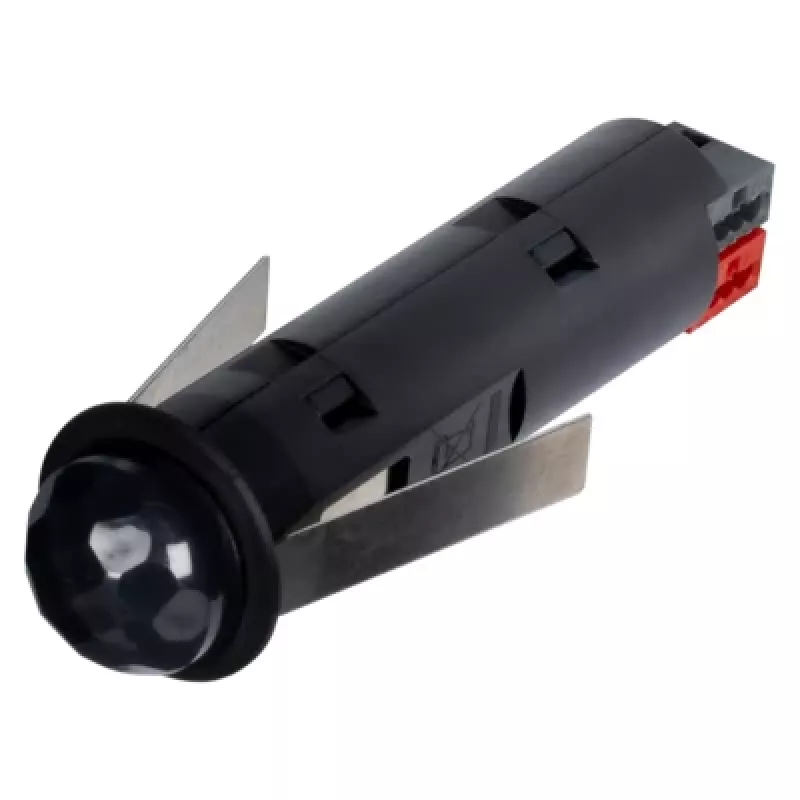

MDT KNX Micro rilevatore di presenza 360° 1 sensore PSE-PMC06.01S

With a 360° detection angle and a single PIR sensor, the MDT KNX Micro Presence Detector covers approximately 28 m² at a mounting height of 2.5 m, making it ideal for small rooms and corridors. It integrates light and temperature sensors, enabling constant light control and HVAC functions directly on the KNX bus.

Overview

The PSE-PMC06.01S is a flush-mounted ceiling presence detector designed for KNX installations. It operates on bus power and requires no external supply. The device is compatible with ETS5 or higher and features a white plastic housing (RAL 9010) with IP20 protection.

What stands out

• 360° detection with a single PIR sensor
• Integrated light sensor for constant light control
• Integrated temperature sensor for HVAC control
• Three independent channels for light, HVAC, and alarm
• Three light value thresholds for flexible automation
• Logic gates and scene recall functions

Technical details

• Detection angle: 360°
• Number of PIR sensors: 1
• Mounting type: Flush-mounted (ceiling)
• Optimal installation height: 2.0 - 3.0 m
• Detection area at 2.5 m height: approx. Ø 6 m (28 m²)
• Integrated light sensor: Yes
• Integrated temperature sensor: Yes
• KNX bus power supply: Yes
• Number of channels: 3
• Light value thresholds: 3
• Protection class: IP20
• Housing material: Plastic
• Color: White (RAL 9010)
• ETS version compatibility: ETS5 or higher
• Operating temperature: 0°C to +45°C
• Current consumption (KNX): approx. 5 mA
• Functions: Constant light control, HVAC control, alarm functions, logic gates, scene recall

Our verdict

A compact and versatile KNX presence detector that combines motion, light, and temperature sensing in one device. Its three channels and logic functions make it a strong choice for efficient building automation.
