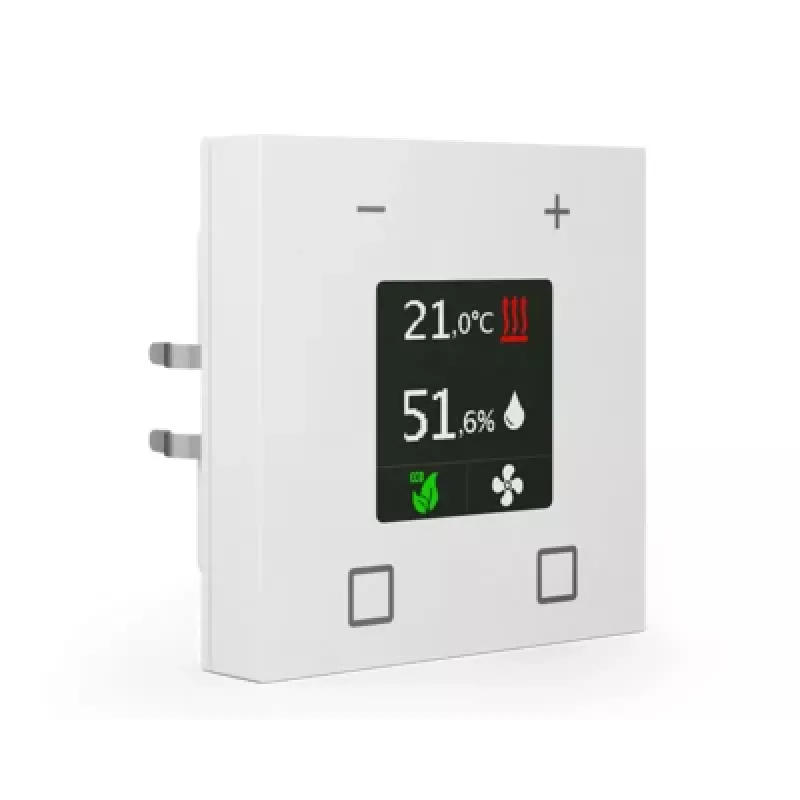

Managing room temperature in a KNX smart building often means choosing between a simple thermostat and a complex touch panel. The MDT SCN-RTR63S.01 Room Temperature Controller Smart 63 solves this by combining precise climate control with a high-resolution 3.5-inch TFT color display in a sleek, flush-mounted design.

Who is it for

This controller is ideal for homeowners and building managers who want intuitive, centralized control of heating, cooling, and ventilation in KNX installations. It suits modern residential and commercial spaces where both functionality and aesthetics matter.

Main features

• 3.5-inch TFT color display for clear visualization of temperature, humidity, time, and operating mode.
• Six touch buttons and a rotary knob with push function for effortless navigation and adjustment.
• Integrated temperature and humidity sensors for accurate climate monitoring.
• Supports heating, cooling, and ventilation control modes, plus comfort, standby, night, and frost protection operating modes.
• Fan control with 3-stage or 0-10V output for flexible air handling.
• Up to 4 logic blocks, 8 scenes, 8 weekly timers, and 8 alarm functions for advanced automation.
• Dew point calculation, presence detection, and maintenance reminders enhance system intelligence.
• Up to 15 customizable display pages for personalized user experience.

Specifications

• Bus System: KNX
• Power Supply: KNX Bus Voltage
• Mounting Type: Flush-mounted (Standard Switch Box)
• Color: Studio White Glossy
• Material: Plastic
• Protection Class: IP20

Tips

For optimal performance, ensure the controller is installed in a location with representative room temperature, away from direct sunlight or drafts. Use the customizable pages to display only the most relevant information for each user.
