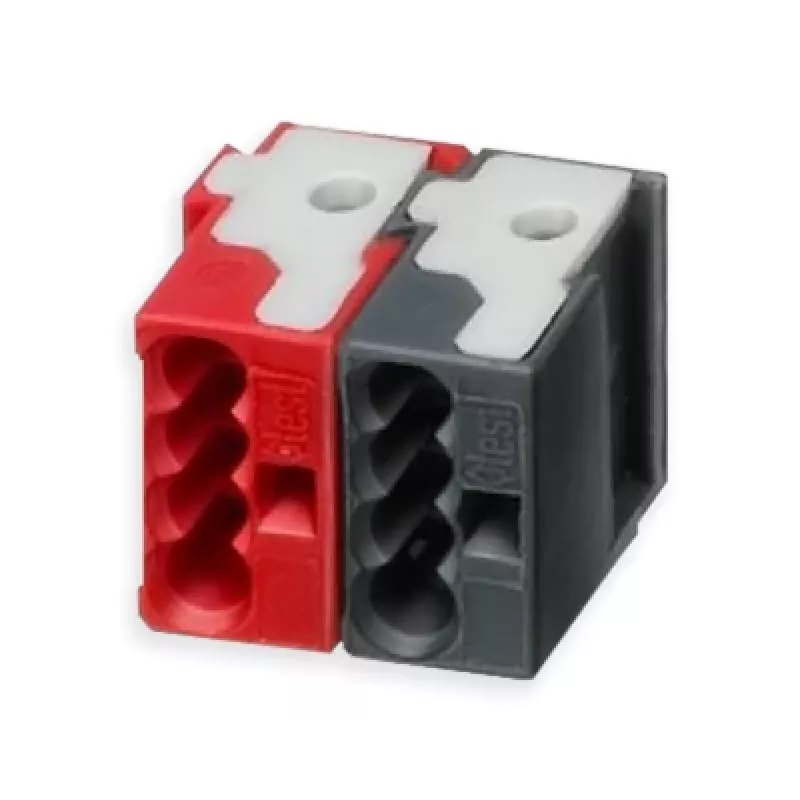

MDT ZBUSKLE morsetto di connessione bus KNX, confezione da 50

Connect KNX bus lines with precision using the MDT ZBUSKLE, a 4-pole terminal employing spring clamp technology for secure, tool-free wire termination. Accepts solid conductors from 0.6 to 0.8 mm², ensuring reliable contact in KNX TP1 installations.

Overview

The MDT ZBUSKLE is a KNX bus connection terminal designed for free wiring or junction box installation. Its push-in mechanism speeds up installation while maintaining a robust connection for the 24-30V DC bus voltage. The housing is made of transparent/grey polyamide, providing durability and easy visual inspection.

What stands out

• Spring clamp technology for quick, secure connections
• 4-pole configuration for standard KNX bus wiring
• Supports solid conductors 0.6–0.8 mm²
• Pack of 50 pieces for large projects
• Operating temperature range: -5°C to +45°C

Technical details

• Connection technology: Spring clamp / Push-in
• Number of poles: 4
• Wire cross-section: 0.6 - 0.8 mm² solid wire
• Bus system: KNX (EIB/KNX TP1)
• Rated voltage: 24-30V DC
• Housing material: Polyamide (PA)
• Contact material: Copper alloy
• Housing colour: Transparent / Grey
• Operating temperature: -5°C to +45°C
• Storage temperature: -25°C to +70°C
• Installation type: Free wiring / Junction box
• Certifications: CE, KNX certified

Our verdict

A reliable and efficient solution for KNX bus connections, the MDT ZBUSKLE combines ease of installation with durable construction, making it ideal for professional building automation projects.
