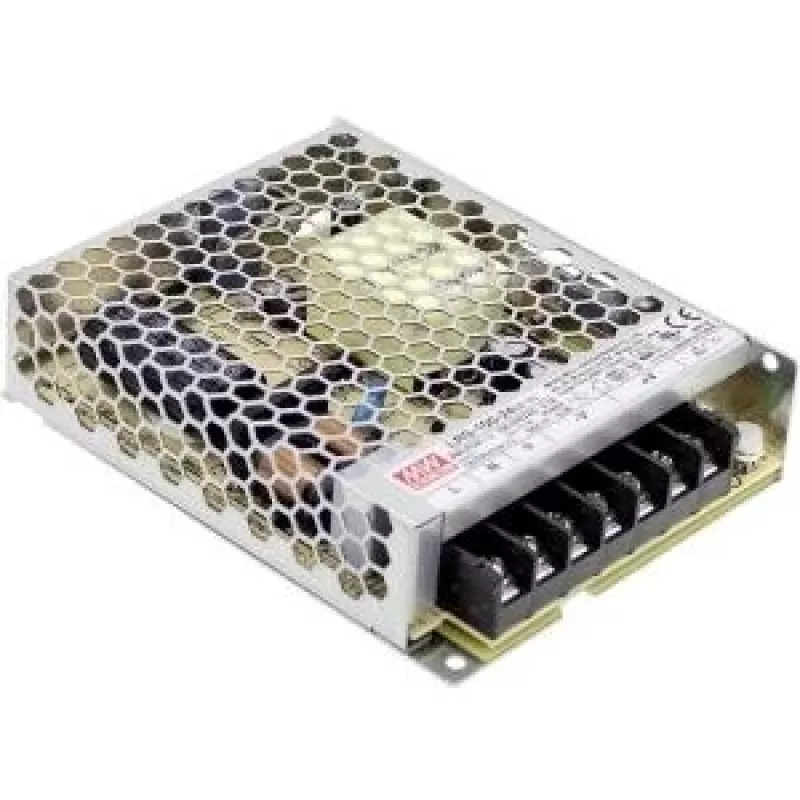

MEAN WELL LRS-100-48 alimentatore switching chiuso 100W 48V DC

Industrial-grade enclosed switching power supply delivering a stable 48V DC output with 100.8W rated power and 90% efficiency. The metal case and free air convection cooling ensure reliable operation in demanding environments.

Advantages

High efficiency reduces energy costs and heat generation. Wide input voltage range accepts 85-264V AC or 120-370V DC, suitable for global use. Comprehensive protections against short circuit, overload, over voltage, and over temperature safeguard connected equipment. Compact metal housing withstands harsh industrial conditions.

Suitable for

• Industrial automation systems
• LED lighting installations
• Telecommunication equipment
• Test and measurement instruments
• General electronic applications requiring 48V DC

Key specifications

• Output: 48V DC, 2.1A, 100.8W
• Input: 85-264V AC or 120-370V DC
• Efficiency: 90%
• Protections: short circuit, overload, over voltage, over temperature
• Cooling: free air convection
• Operating temperature: -30 to +70°C
• Safety standards: UL62368-1, TUV EN62368-1, EAC TP TC 004
• EMC: EN55032 Class B
• No load power consumption: <0.3W
• MTBF: >700,000 hours

Recommendations

Ideal for engineers and system integrators needing a reliable, efficient 48V power source in a compact metal enclosure. Verify output voltage adjustment range (43.2-52.8V) for your specific application.
