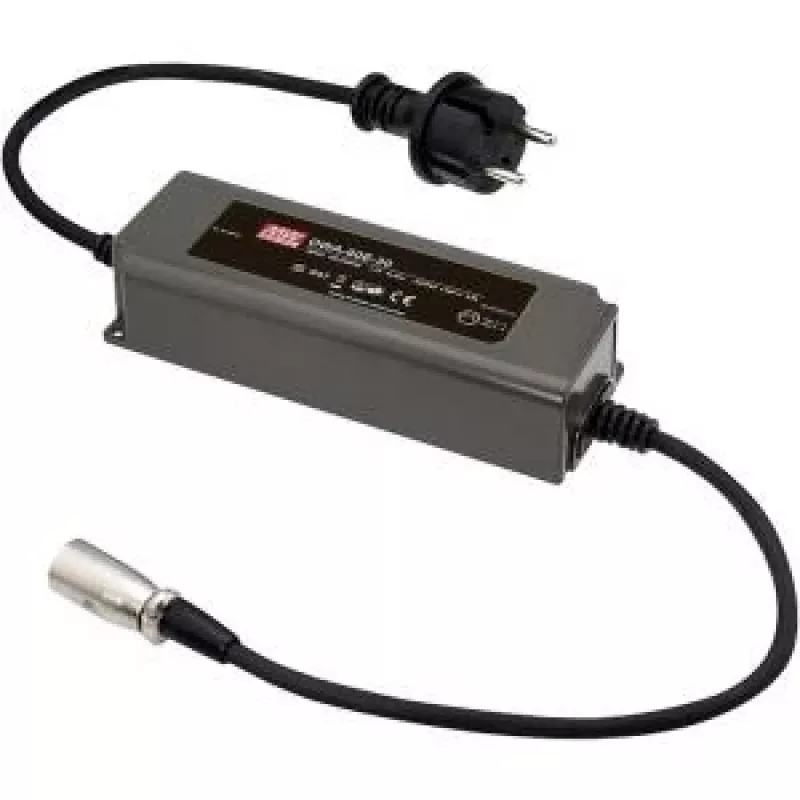

MEAN WELL OWA-90E-24 alimentatore driver LED 90W 24V DC IP67, nero

For installers and maintenance teams working on outdoor LED lighting, signage, or industrial automation, the MEAN WELL OWA-90E-24 delivers reliable 24V DC power in a fully sealed, weatherproof enclosure. This 90W adapter accepts a universal AC input from 90 to 264V, making it suitable for use across different mains voltages without adjustment. Its compact plastic housing and cable connections simplify wiring in tight or exposed locations, while the high efficiency of 91% reduces energy waste and heat buildup.

Key specifications

• Output: 24V DC, 3.75A, 90W
• Input: 90-264V AC (universal)
• Efficiency: up to 91%
• IP67 rated: dust-tight and protected against temporary immersion
• Protections: short circuit, overload, over voltage, over temperature
• Operating temperature: -35°C to +70°C (free air convection cooling)
• No-load power consumption: <0.15W
• Ripple & noise: 150mVp-p
• Hold-up time: 16ms at 230VAC full load
• MTBF: 199.7K hours
• Safety standards: UL62368-1, TUV EN62368-1, EAC TP TC 004
• EMC compliance: EN55032 Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55035
• Enclosure material: plastic
• Connections: input cable (2 wires), output cable (2 wires)

Why choose it

The OWA-90E-24 is built for harsh environments where dust and moisture are present. Its fully potted plastic case and IP67 rating mean it can be mounted outdoors without an additional enclosure. The wide input voltage range and high efficiency make it a cost-effective solution for global projects, while comprehensive protection features ensure long service life even under demanding conditions.

Ideal use cases

• Outdoor LED lighting and signage
• Industrial control panels and automation equipment
• Telecommunication and networking devices in remote locations
• Any application requiring a reliable 24V DC power source with weatherproofing

Good to know

The unit is cooled by free air convection, so no fan is required, reducing noise and maintenance. It is designed to meet international safety and EMC standards, ensuring compliance in most markets. The cable connections allow flexible installation, and the compact size helps save space in crowded enclosures.
