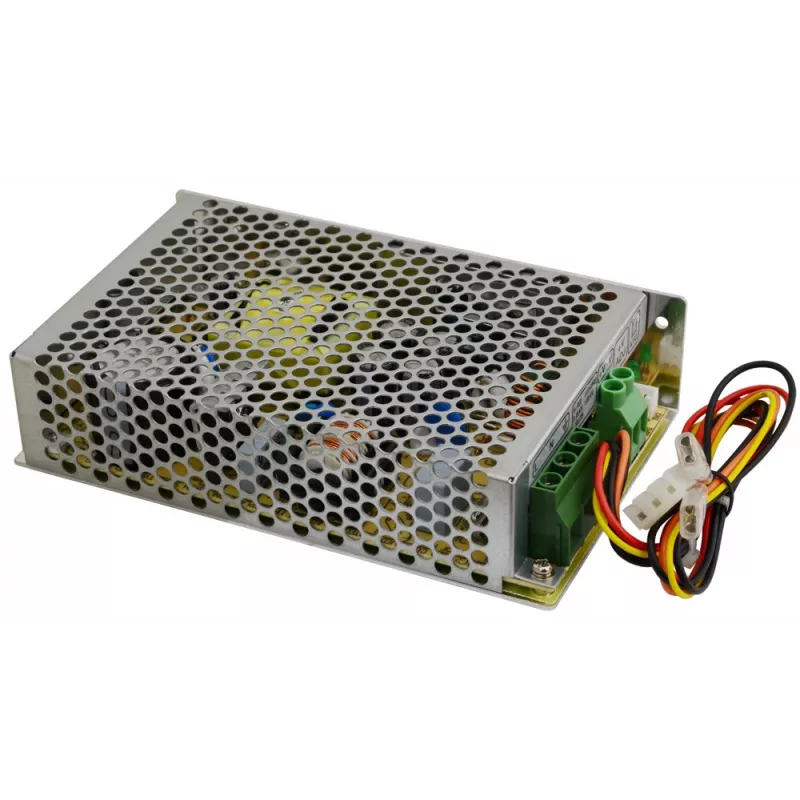

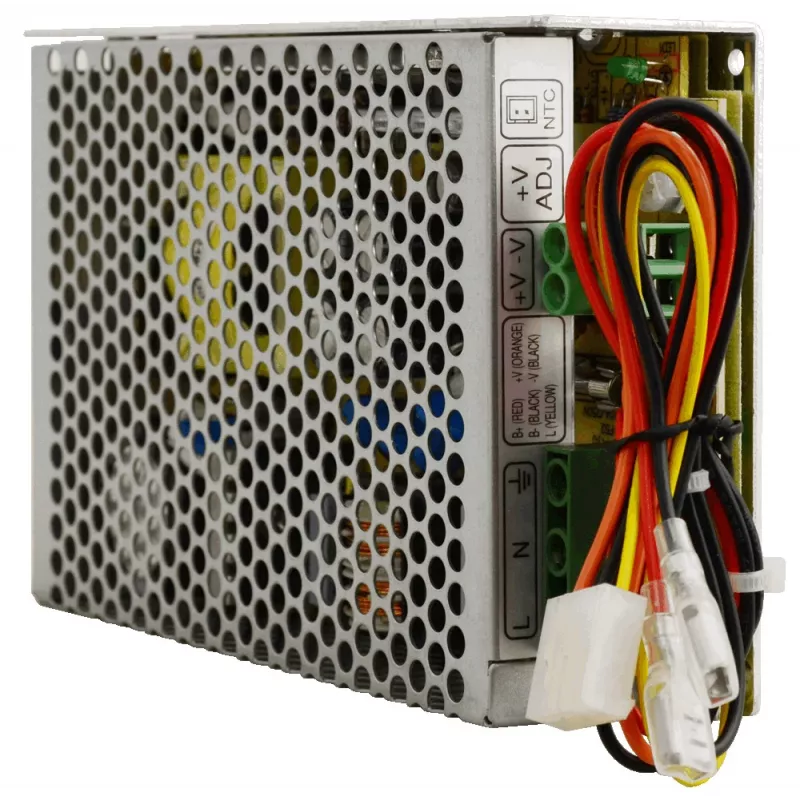

Mean Well SCP-75-12 13,8V/5,4A alimentatore switching da incasso con funzione tampone

The Mean Well SCP-75-12 is a built-in switching buffer power supply delivering 13.8V at up to 5.4A. It is designed for uninterrupted power supply to devices requiring a stabilized 13VDC (±15%) voltage, automatically switching to battery power when mains fails.

Key features

• Input voltage: 88-264VAC, 124-370VDC
• Protections: short circuit, overvoltage, overload, and reverse battery polarity
• Output voltage adjustment range: -5% to +15% of nominal value
• No-load power consumption: <0.75W
• Thermal compensation of output voltage possible
• Cooling by free air convection
• Operating temperature: -20 to +60°C
• Compliance with multiple standards and certifications
• DIN rail mounting possible (with accessories)

Specifications

• Brand: Mean Well
• Model: SCP-75-12
• Output: 13.8V, 0~5.4A
• Tolerance: ±1%
• Ripple and noise: 120mV
• Efficiency: 0.81
• Max power: 75W
• Dimensions: 159 x 97 x 38 mm
