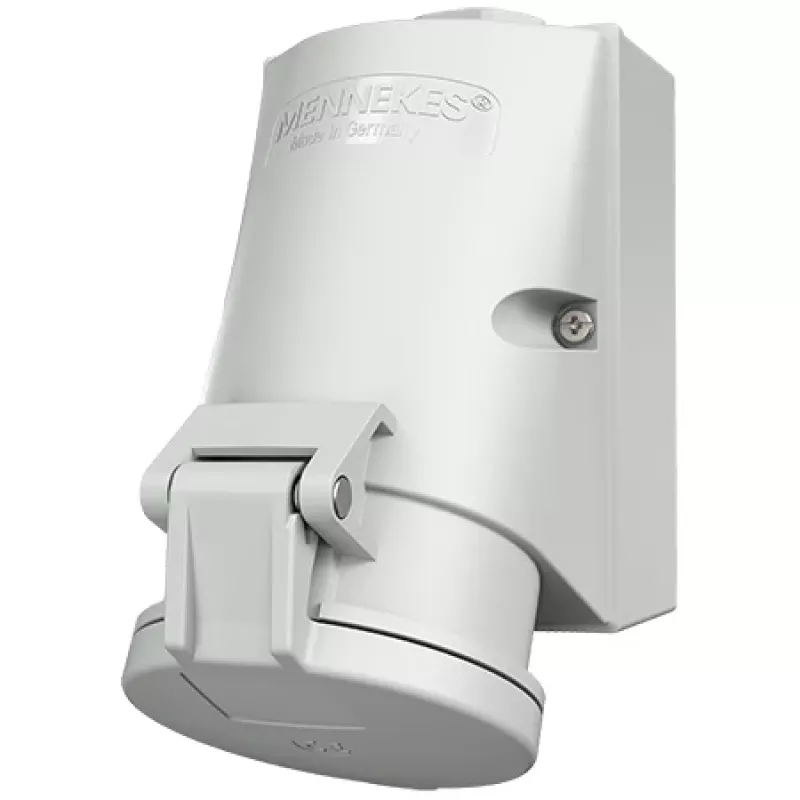

MENNEKES 32A presa da parete 4 poli 1h IP44 viola 2983A

This CEE wall-mounted socket delivers a robust 32 A connection for industrial power distribution, featuring a 4-pole (3P+E) configuration with a 1h earth contact position for correct phase alignment.

Advantages

Built with a violet Amaplast housing, this socket withstands demanding environments. Its IP44 protection guards against splashing water and solid objects, while screw terminals ensure a secure, maintenance-friendly connection.

Suitable for

• Industrial workshops and production lines
• Commercial kitchens and catering equipment
• Construction sites with temporary power needs
• Marinas and outdoor installations

Key specifications

• Rated current: 32 A
• Number of poles: 4 (3P+E)
• Earth contact position: 1h
• IP protection class: IP44
• Mounting type: Wall-mounted
• Connection technology: Screw terminals
• Housing material: Amaplast (Polyamide 6)
• Colour: Violet
• Cable entries: 2x M25/M32 (top), 1x M25/M32 (bottom), 2x M25/M32 (rear)
• Max. conductor cross-section: 10 mm²
• Min. conductor cross-section: 2.5 mm²
• Frequency: 50/60 Hz
• Operating temperature: -25°C to +40°C

Recommendations

For reliable and safe power distribution in industrial settings, this MENNEKES wall socket is an excellent choice. Its robust construction and compliance with IEC 60309 standards ensure long-term performance.
