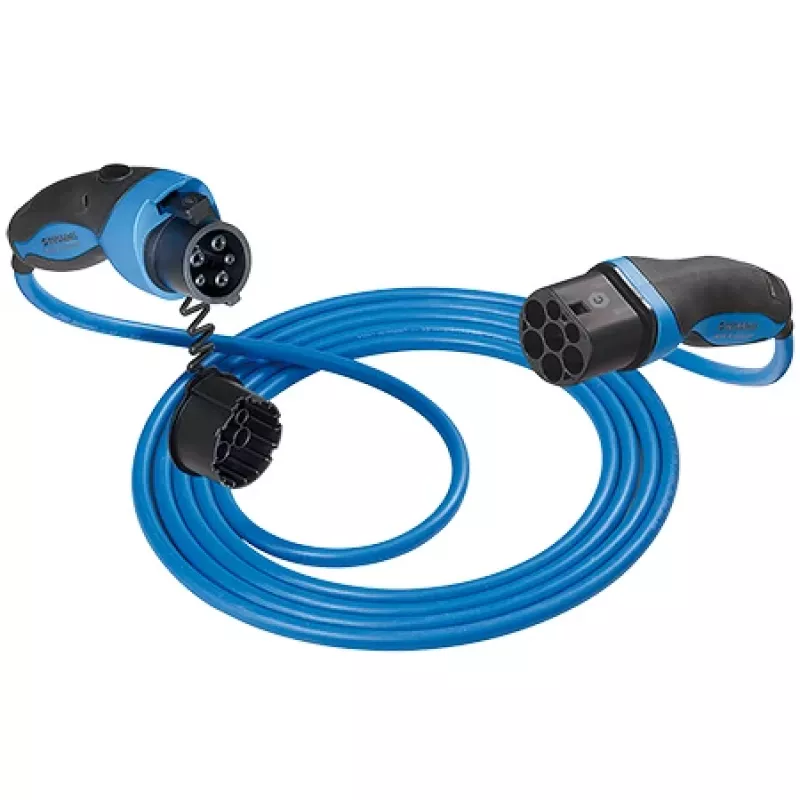

MENNEKES 36283 cavo di ricarica EV Mode 3 Type 2 su Type 1 20A 1 fase 7,5m

Mode 3 charging cable with Type 2 infrastructure plug and Type 1 vehicle connector, delivering up to 4.6 kW for electric vehicles with a Type 1 inlet. The 7.5-metre cable provides flexible reach at charging stations with a Type 2 socket.

Advantages

Robust PUR jacket withstands frequent handling and outdoor conditions. 20 A single-phase rating ensures reliable charging for compatible EVs.

Suitable for

• Electric vehicles with Type 1 (SAE J1772) charging inlet
• Charging stations with Type 2 socket in Mode 3

Key specifications

• Charging mode: Mode 3 (IEC 61851-1)
• Connector 1: Type 2 (infrastructure)
• Connector 2: Type 1 (vehicle)
• Maximum current: 20 A
• Phases: 1
• Maximum power: 4.6 kW
• Nominal voltage: 230 V AC
• Cable length: 7.5 m
• Cable colour: Black
• Operating temperature: -30 °C to +50 °C

Recommendations

Verify your vehicle's inlet type before purchase. This cable is not compatible with Type 2 vehicle inlets without an adapter.
