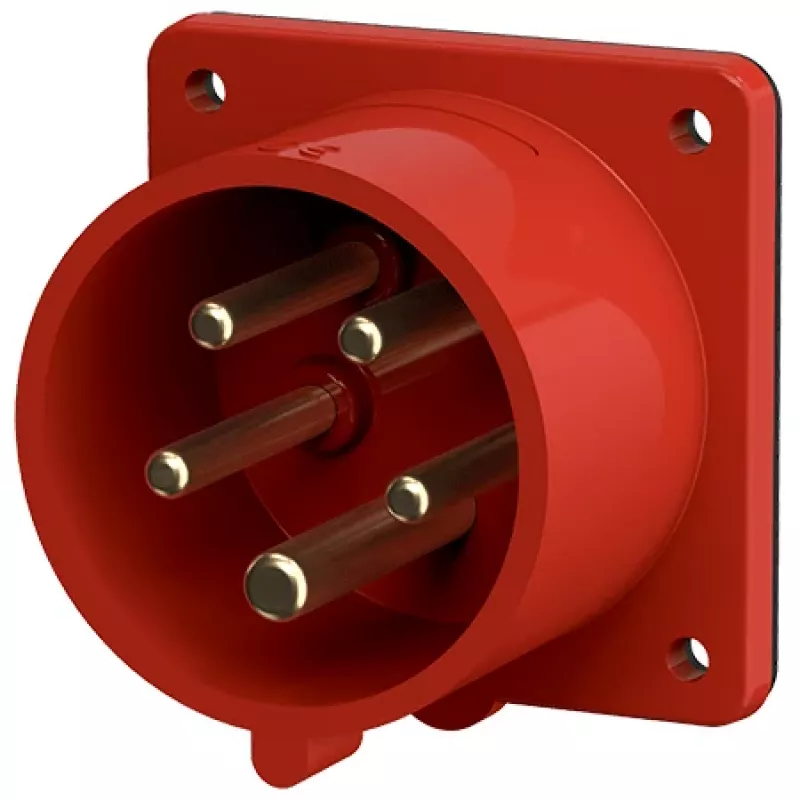

MENNEKES spina da incasso TA 16A 5p 6h 400V IP44 1408

Industrial electricians and panel builders use the MENNEKES 1408 panel mounted plug to create a secure, rear-entry power connection point on machinery, distribution boards, and equipment enclosures. This 16 A, 5-pole (3P+N+PE) plug with 6h earth position is rated for 400 V and 50/60 Hz, making it suitable for three-phase industrial power circuits.

Key specifications

• Connector type: Panel mounted plug
• Rated current: 16 A
• Number of poles: 5 (3P+N+PE)
• Rated voltage: 400 V
• Frequency: 50/60 Hz
• Earth contact position: 6 h
• Ingress protection: IP44
• Connection technology: Screw terminals
• Housing material: Polyamide (PA6)
• Colour: Red
• Mounting type: Flange mounting
• Cable entry direction: Straight (rear)
• Contact material: Brass
• Operating temperature range: -25°C to +40°C
• Flammability rating: UL94 V-2
• Series: TA

Why choose it

The MENNEKES TA series is a proven choice for heavy-duty industrial environments. The IP44 rating protects against splashing water and solid objects, while the robust polyamide housing withstands mechanical stress. Screw terminals ensure a reliable, maintenance-friendly connection.

Ideal use cases

• Panel-mounted power inlet for industrial machines
• Distribution boards and control cabinets
• Heavy-duty equipment requiring a secure 400 V connection

Good to know

This plug complies with IEC 60309-1 and IEC 60309-2 standards, ensuring compatibility with other industrial connectors. The red colour indicates a 400 V, 6h configuration as per international colour coding.
