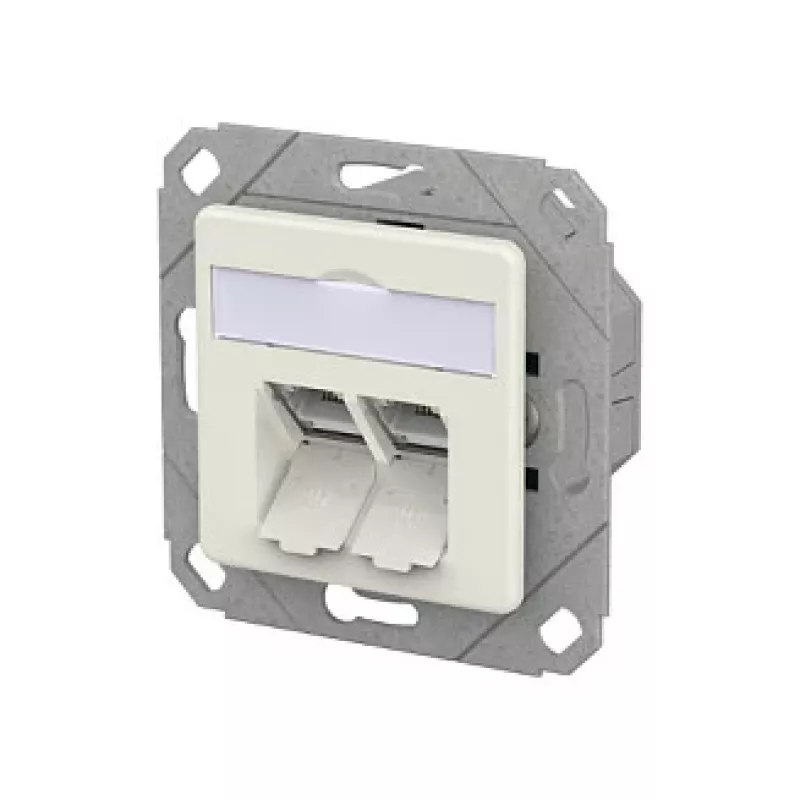

METZ CONNECT 130D381102-I E-DAT Cat.6A IDC UPk bianco puro jack Keystone RJ45

The METZ CONNECT 130D381102-I E-DAT Cat.6A IDC UPk is a high-performance shielded RJ45 keystone jack designed for reliable 10 Gigabit Ethernet networks. Engineered for Category 6A (Class EA) performance, this flush-mount module supports frequencies up to 500 MHz and is ideal for demanding data center, enterprise, and industrial applications. The tool-free IDC termination simplifies installation, while the robust metal shielding ensures excellent EMI protection.

Advantages

Tool-free termination reduces installation time and errors. Shielded design minimizes electromagnetic interference for stable data transmission. Supports Power over Ethernet (PoE, PoE+, 4PPoE) for flexible device powering. Gold-plated contacts ensure reliable connectivity over 750 mating cycles. Compact flush-mount design fits standard wall plates and patch panels.

Suitable for

• 10GBASE-T networks in data centers and server rooms
• Enterprise LAN cabling infrastructure
• Industrial Ethernet environments requiring high reliability
• PoE-powered devices such as IP cameras, access points, and IoT sensors

Key specifications

• Product Type: Network Module (Keystone Jack)
• Connector Type: RJ45
• Category: Cat.6A (Class EA)
• Shielding: Shielded (STP)
• Termination: IDC, tool-free
• Wiring Standard: TIA/EIA 568A/B
• Number of Ports: 1
• Mounting: Flush-mount
• Color: Pure White (RAL 9010)
• Data Rate: 10 Gbps
• Frequency Range: 500 MHz
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Contact Plating: Gold-plated
• Housing Material: Plastic with metal shielding
• Conductor Gauge: AWG 24-22 solid wire
• Re-termination Cycles: Up to 5
• Mating Cycles: > 750
• Operating Temperature: -40°C to +70°C
• Standards: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2

Recommendations

For optimal performance, pair with Cat.6A shielded patch cables and ensure proper grounding of the cabling system. Suitable for use with METZ CONNECT E-DAT patch panels and wall outlets.
