METZ CONNECT cavo di rete - 5m Cat6a S/FTP M12 a RJ-45 verde

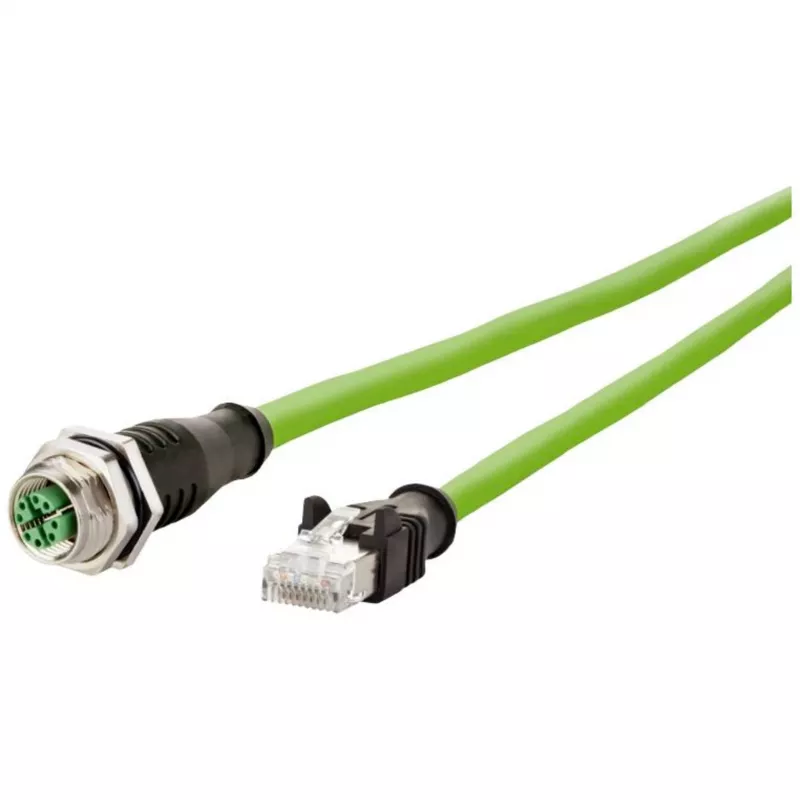

The METZ CONNECT 142M2X25050 is a high-performance industrial network cable designed for reliable data transmission in demanding environments. With a length of 5.0 meters and Cat6a certification, it supports 10 Gigabit Ethernet (10GBASE-T) and is ideal for industrial Ethernet applications. The cable features an M12 X-coded male connector on one end and an RJ45 male connector on the other, ensuring secure and robust connections.

Advantages

This cable offers exceptional shielding with S/FTP construction, providing protection against electromagnetic interference. The halogen-free jacket material ensures safety in case of fire, making it suitable for use in confined spaces. The stranded conductor construction provides flexibility for easy routing, while the X-coded M12 connector guarantees high-speed data transfer and compatibility with industrial equipment.

Suitable for

• Industrial Ethernet networks requiring high bandwidth and reliability
• Connecting M12 X-coded devices to RJ45 ports
• Applications where halogen-free cabling is mandatory
• Power over Ethernet (PoE, PoE+, PoE++) devices

Key specifications

• Cable Type: Network Cable
• Cable Category: Cat6a
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 5.0 m
• Connector 1: M12 Male, X-coded, 8-pin
• Connector 2: RJ45 Male
• Conductor: Stranded
• Jacket Material: Halogen-free
• Cable Diameter: 6.4 mm
• Colour: Green
• Data Transfer Rate: Up to 10 Gbit/s
• PoE Support: Yes (PoE, PoE+, PoE++)

Recommendations

For optimal performance, ensure that both connected devices support Cat6a standards and that the M12 connector is properly mated. This cable is an excellent choice for industrial automation, machine building, and other harsh environment applications.
