METZ CONNECT Cavo di rete M12 angolare a estremità aperta, 10m, SF/FTP, CAT 5e, senza alogeni, verde

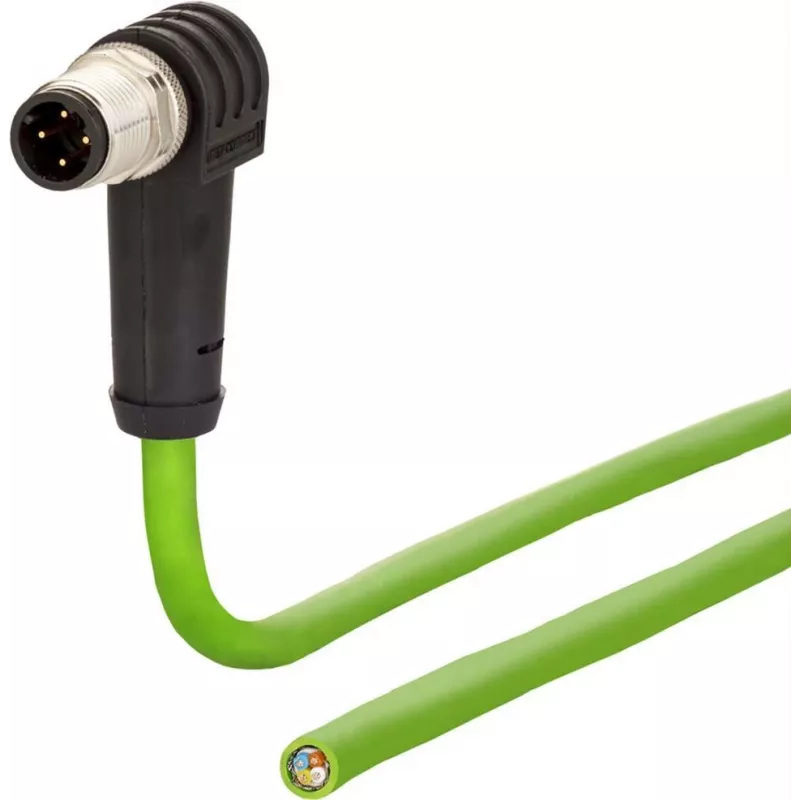

The METZ CONNECT 142M1D90100 is a high-quality industrial network cable designed for reliable data transmission in demanding environments. Featuring an M12 angled plug on one end and an open end on the other, this cable is ideal for connecting sensors, actuators, and other industrial Ethernet devices. With a length of 10.0 meters and robust SF/FTP shielding, it ensures excellent protection against electromagnetic interference.

Advantages

This cable offers superior signal integrity and durability. The D-coded M12 connector ensures correct pin assignment for Ethernet networks, while the halogen-free jacket enhances safety in case of fire. The stranded conductor construction provides flexibility for easy routing in tight spaces.

Suitable for

• Industrial Ethernet applications (10/100 Mbit/s)
• Sensor and actuator cabling in automation systems
• Connecting devices in harsh environments requiring robust connectors

Key specifications

• Cable Type: Network Cable
• Length: 10.0 m
• Category: CAT 5e
• Shielding: SF/FTP (S-Foil/Foil Twisted Pair)
• Conductor: Stranded
• Jacket Material: Halogen-free
• Jacket Color: Green
• Cable Diameter: 6.5 mm
• Connector 1: M12 Plug, D-coded, 4-pin, Angled
• Connector 2: Open End (Unterminated)
• Data Transfer Rate: 10/100 Mbit/s
• Frequency Bandwidth: 100 MHz
• Impedance: 100 Ohm

Recommendations

For optimal performance, ensure that the open end is terminated with a compatible connector or device. This cable is suitable for use in PROFINET and other industrial Ethernet networks.
