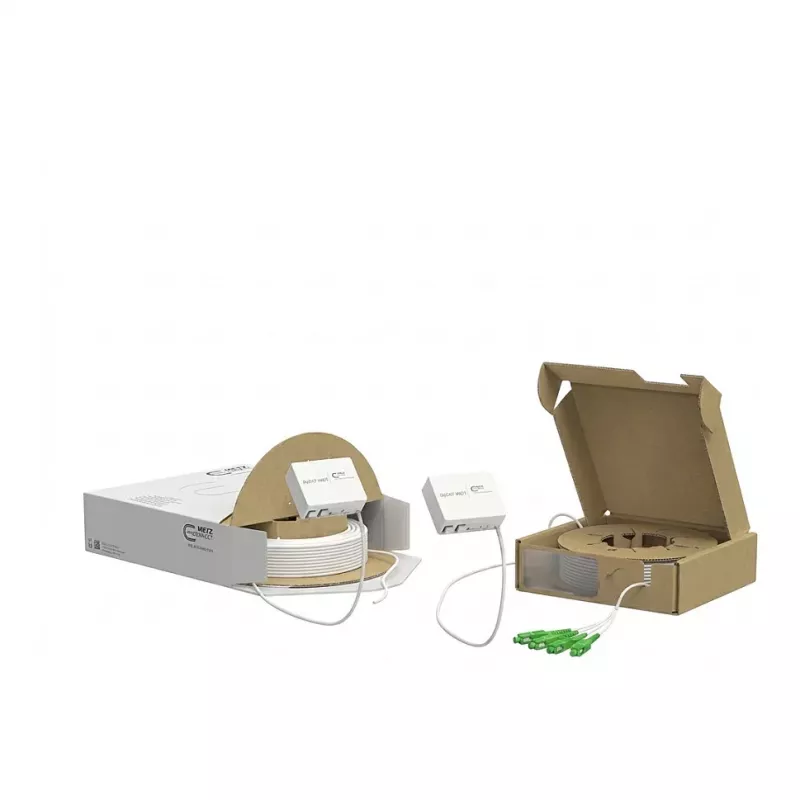

METZ CONNECT OpDAT VADT Cassetta di giunzione 4x LC APC OS2 50m

The METZ CONNECT OpDAT VADT Splice Cassette is a high-quality fiber optic splice cassette designed for single-mode OS2 networks. It features 4 pre-terminated LC APC connectors with a 50-meter pigtail, providing a reliable and low-loss solution for fiber optic splicing and patch panel integration. The cassette is part of the OpDAT VADT series, known for its robust construction and excellent optical performance.

Advantages

This splice cassette offers low insertion loss (≤0.2 dB) and high return loss (≥60 dB), ensuring optimal signal integrity. The APC polish minimizes back reflection, making it ideal for high-speed data transmission. The LSZH (Low Smoke Zero Halogen) jacket material enhances safety in enclosed spaces. The compact design facilitates easy installation in distribution boxes, terminal boxes, or rack splice boxes.

Suitable for

• Fiber optic splicing in FTTH, FTTB, and data center applications
• Integration into patch panels and distribution frames
• Single-mode OS2 networks requiring low loss and high return loss

Key specifications

• Product Type: Fiber Optic Splice Cassette
• Fiber Type: Single-mode (OS2)
• Number of Fibers: 4
• Connector Type: LC APC
• Fiber Core/Cladding Diameter: 9/125 µm
• Cable Length: 50 m
• Polish Type: APC (Angled Physical Contact)
• Insertion Loss (typical): ≤ 0.2 dB
• Return Loss (typical): ≥ 60 dB
• Pigtail Diameter: 0.9 mm
• Pigtail Jacket Material: LSZH
• Connector Color: Green
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH
• Brand Series: OpDAT VADT

Recommendations

For optimal performance, use with compatible LC APC adapters and ensure proper cleaning of connectors before mating. This cassette is ideal for high-density fiber management in telecommunications and data centers.
