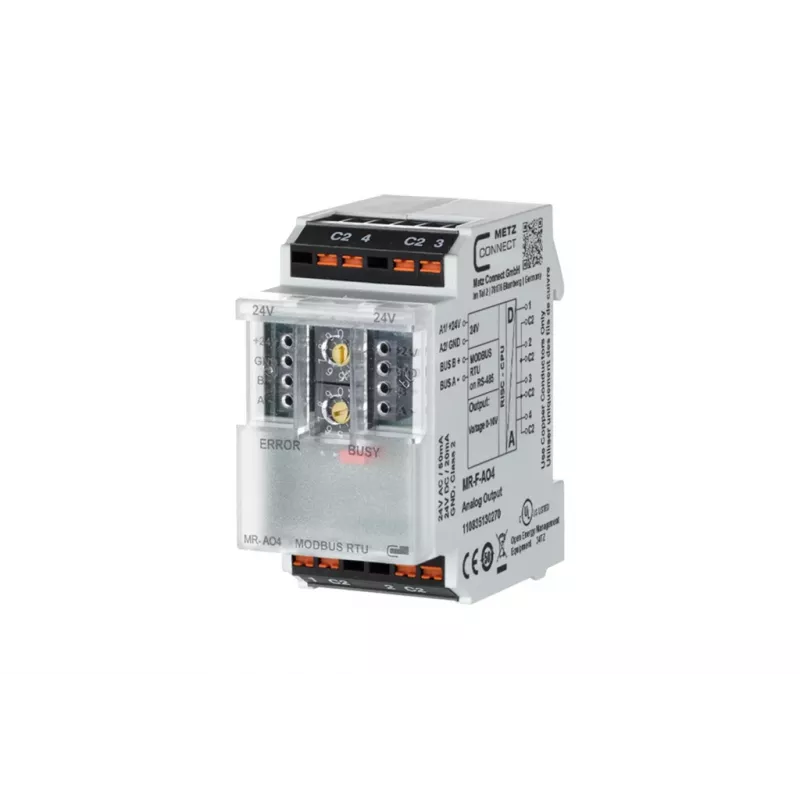

METZ MR-F-AO4 modulo di uscita analogica Modbus RTU, 4 canali, RS485, 16 bit, guida DIN 110835130270

Four 16-bit analog output channels with 3-way isolation and Modbus RTU over RS485 make the METZ MR-F-AO4 a precise actuator interface for industrial automation.

Overview

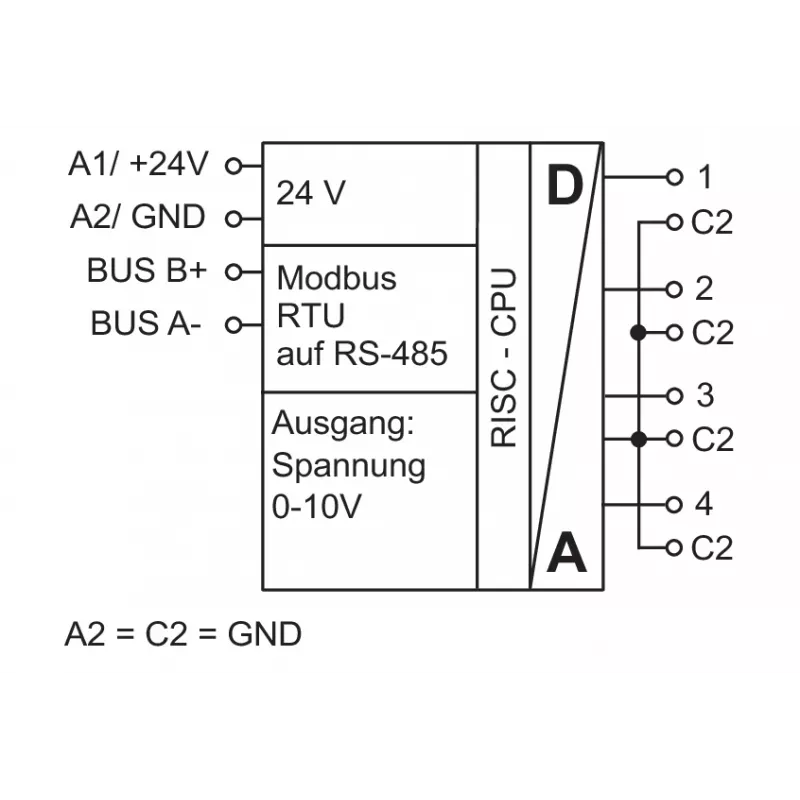

The METZ 110835130270 MR-F-AO4 is a Modbus RTU analog output module that converts digital commands into analog signals. It provides four individually configurable channels, each capable of voltage (0-10 V, ±10 V) or current (0-20 mA, 4-20 mA, ±20 mA) output. The module communicates over RS485 with baud rates from 1200 to 115200 bps and supports none, even, or odd parity with 1 or 2 stop bits. Configuration is done via DIP switches and Modbus registers.

What stands out

• Four 16-bit analog outputs for precise control
• 3-way isolation between supply, RS485, and analog outputs
• Wide supply range: 18-30 V DC, max 2.5 W consumption
• DIN rail mounting per EN 60715, pluggable screw terminals
• Operating temperature -25 °C to +70 °C, IP20

Technical details

• Product type: Analog output module
• Communication protocol: Modbus RTU
• Interface: RS485
• Number of analog outputs: 4
• Output signal types: Voltage (0-10 V, ±10 V), current (0-20 mA, 4-20 mA, ±20 mA)
• Output resolution: 16-bit
• Supply voltage: 24 V DC (18-30 V DC)
• Power consumption: Max. 2.5 W
• Isolation: 3-way (supply / RS485 / analog outputs)

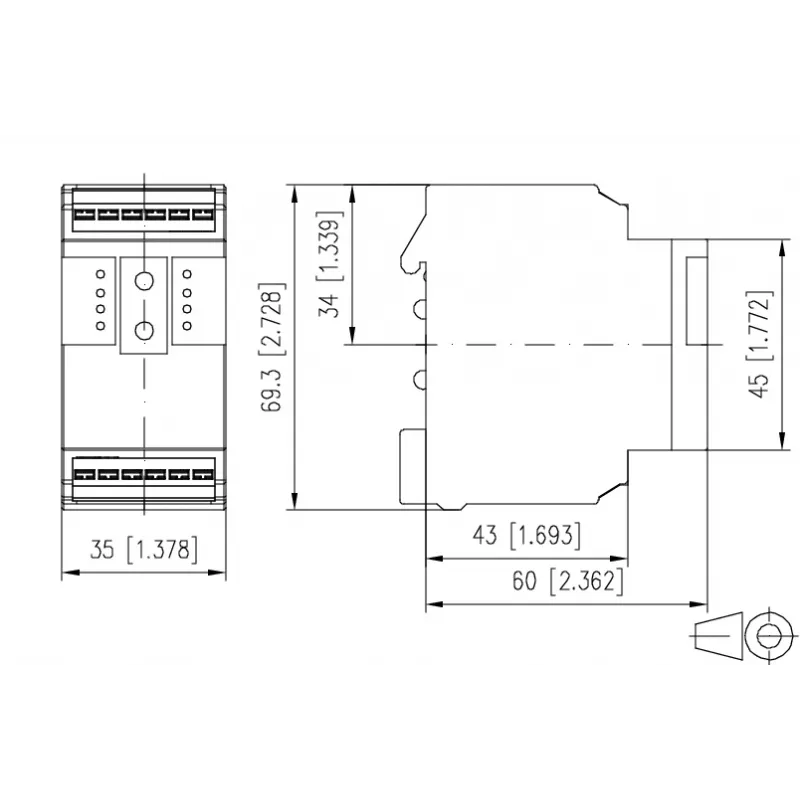

• Mounting: DIN rail (EN 60715)
• Operating temperature: -25 °C to +70 °C
• Protection class: IP20
• Configuration: DIP switches, Modbus registers

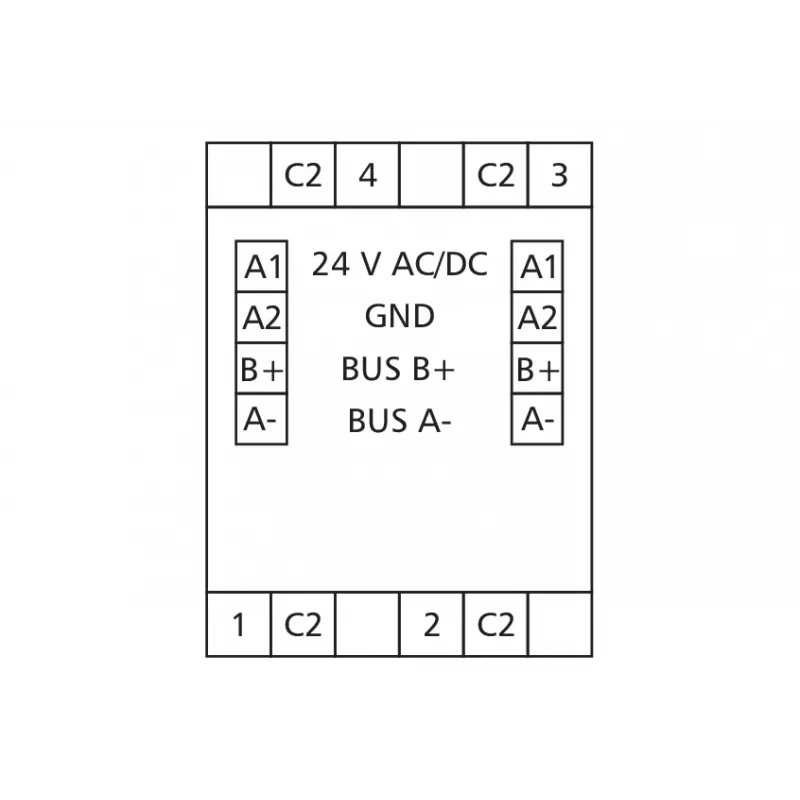

• Connection: Pluggable screw terminals
• Baud rates: 1200 - 115200 bps
• Parity: None, even, odd
• Stop bits: 1, 2

Our verdict

The MR-F-AO4 delivers flexible, isolated analog outputs in a compact DIN rail module, ideal for building automation and process control.
