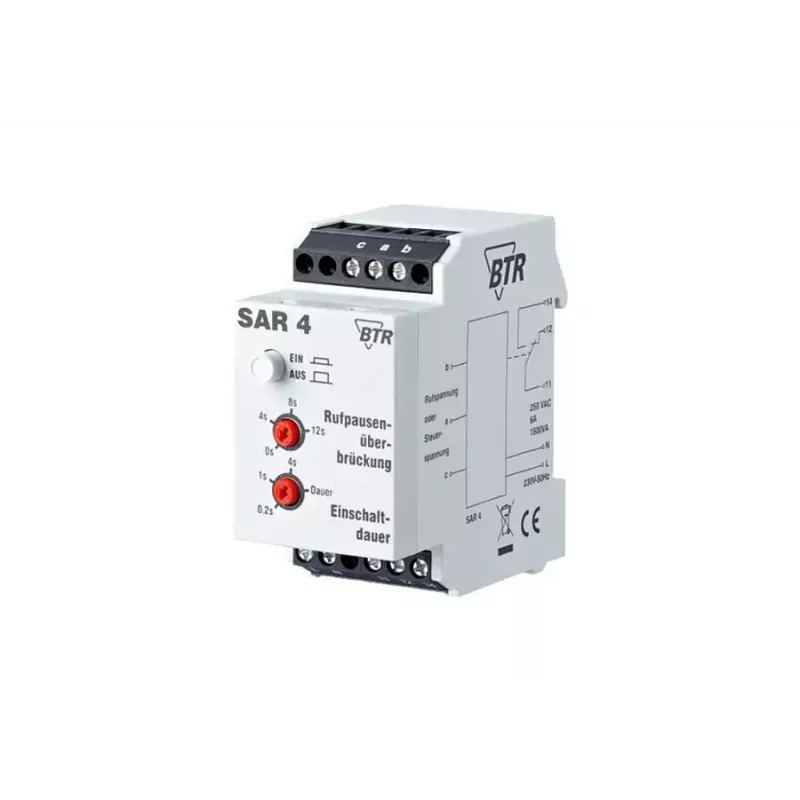

Relè elettrico BTR NETCOM 130283-I bianco

The BTR NETCOM 130283-I White is an electrical relay designed for switching external signal emitters when activated by a call voltage or separate control voltage. It supports AC input voltages in the range 32–80 V and operates at frequencies between 23–54 Hz. With compact dimensions of 35 x 60 x 68 mm and a white housing, the relay is intended for installation where space is limited and a clean appearance is required.

Advantages

The relay accepts both a telecommunications access line or a separate AC/DC control voltage source and can be configured to respond either to call voltage only or to control voltage. It drives external signal devices such as bells, horns, or lamps and can use its own power supply or the device’s separate supply. The compact size and robust construction provide straightforward installation and reliable operation in various environments.

Suitable for

• Connection to telecommunications access lines or building control circuits
• Activation of external signal emitters (bell, horn, lamp)
• Applications requiring compact relay modules with 32–80 V AC input

Key specifications

• Model: BTR NETCOM 130283-I
• Input voltage (AC): 32–80 V
• Frequency: 23–54 Hz
• Dimensions: 35 × 60 × 68 mm
• Color: White
• MPN: 130283-I
• EAN: 4250184101703

How to use

Connect the SAR input to the telecommunications access line or to a separate AC/DC control voltage source according to the system wiring diagram. Configure the relay to react either to the call voltage or to the control voltage as required. Wire the relay output to the external signal emitter, ensuring the emitter has its own power supply or is connected to a suitable separate supply. Verify correct polarity and secure all terminals before energizing the circuit.

Recommendations

Use the relay within the specified voltage and frequency ranges and follow local electrical codes. Verify compatibility between the relay and the external signal emitter’s power requirements. Perform installation and maintenance by qualified personnel to ensure safe and reliable operation.
