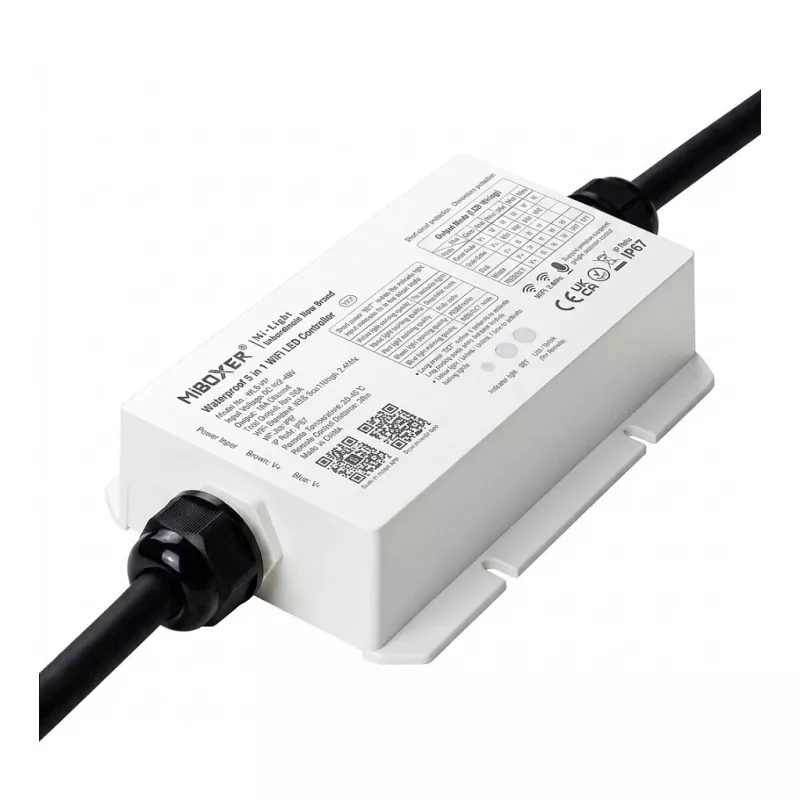

Miboxer WL5-WP controller LED impermeabile 5 in 1, 2.4G + WiFi, IP67, 12-48V DC, 6A/canale

For installations where moisture, dust, and rough handling would sideline ordinary controllers, the Miboxer WL5-WP steps up with a fully sealed IP67 housing and a five-channel architecture that handles single colour, CCT, RGB, RGBW, and RGB+CCT strips from one unit. No need to stock different controllers per strip type—this model adapts on the fly, and dual 2.4GHz RF plus Wi-Fi control means you can run it from the MiBoxer app, a handheld remote, or a gateway for voice commands.

Highlights

• 5-in-1 output: single colour, CCT, RGB, RGBW, RGB+CCT
• IP67 waterproof and dustproof, PC housing for harsh environments
• Dual wireless: 2.4GHz RF (30m range) and Wi-Fi 802.11b/g/n
• Wide 12–48V DC input, 6A per channel, 10A total
• 0–100% dimming, overload and short-circuit protection
• Works with MiBoxer app, RF remotes, and smart home gateways

In daily use

Wire the controller to a 12V, 24V, or 48V DC supply and connect your LED strip to the five output channels. Pair it with the MiBoxer app over Wi-Fi for scene scheduling, grouping, and brightness control from your phone, or use a 2.4G RF remote for direct, lag-free adjustments up to 30 metres away. The sealed PC enclosure shrugs off splashes and dust, making it suitable for outdoor facades, bathrooms, or industrial bays. At 48V, it can drive up to 480W of LED load—enough for long runs without voltage drop issues.

Full specifications

• Product type: 5-in-1 LED controller
• Compatible strips: single colour, CCT, RGB, RGBW, RGB+CCT
• IP rating: IP67
• Wireless: 2.4GHz RF, Wi-Fi 802.11b/g/n
• Input voltage: DC 12-48V
• Max output current: 6A per channel, 10A total
• Max output power: 120W @12V, 240W @24V, 480W @48V
• Dimming range: 0-100%
• Operating temperature: -20°C to 60°C
• Static power consumption: <1W
• Housing material: PC
• Protection: overload, short circuit
• Control distance: 30m (RF)
• Voice control: via MiBoxer gateway and smart assistants

Final note

One controller for every LED strip type, built to survive the elements and controlled from anywhere.
