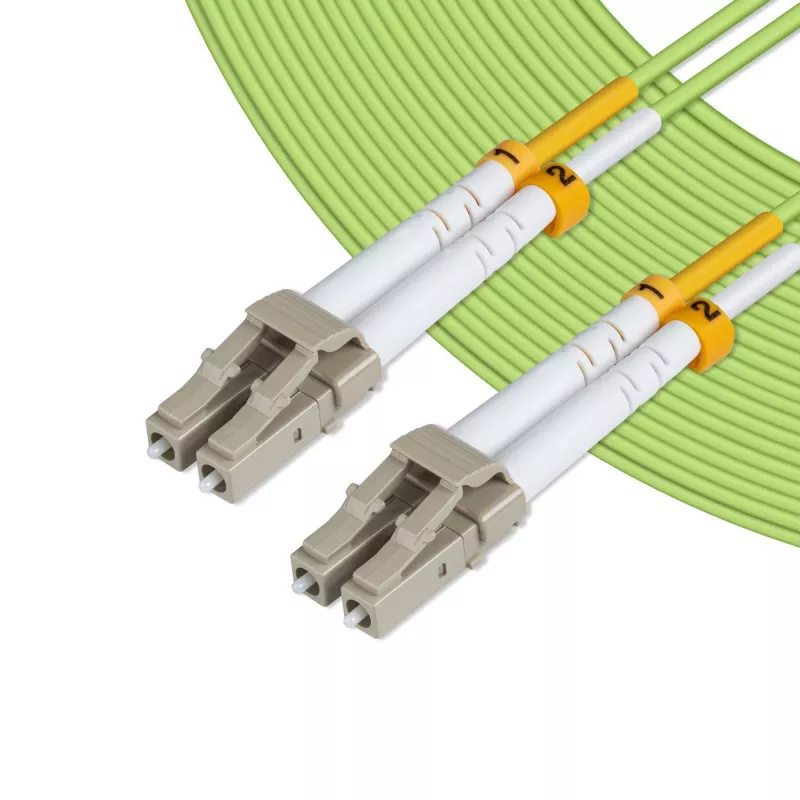

Microconnect FIB551010 cavo InfiniBand/in fibra ottica 10 m LC verde

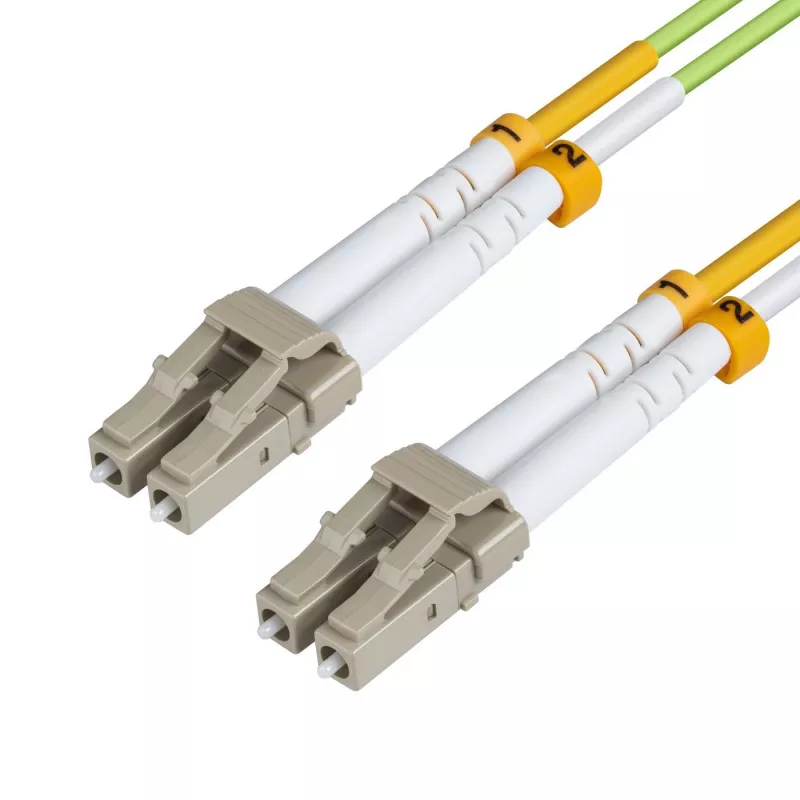

The Microconnect FIB551010 is a 10 m fibre optic patch cable with LC to LC connectors and OM5 multimode fibre. With a 50 µm core diameter and support for full-duplex transmission, this green OM5 cable is designed to meet increasing bandwidth demands and to provide reliable high-speed data links in network environments.

Advantages

OM5 (Wideband Multimode Fiber) offers improved bandwidth performance for short-reach multimode applications and is backward-compatible with OM3/OM4 equipment. The LC connectors provide a compact, widely adopted interface, and the 10 m length gives flexibility for rack-to-rack and equipment-to-equipment connections. The cable's green jacket identifies it as OM5 according to common colour conventions.

Suitable for

• Short-reach data centre links
• High-speed LAN and server connections
• Full-duplex multimode applications
• Patch panels and switch-to-switch cabling

Key specifications

• Brand: MicroConnect
• Model / MPN: FIB551010
• EAN: 5711783852872
• Fibre type: OM5 (WBMMF)
• Core diameter: 50 µm
• Connectors: LC — LC
• Cable length: 10 m
• Colour: Green
• Weight: 0.09 kg

How to use

Inspect connector endfaces for contamination and clean if necessary before insertion. Route the cable following standard bend-radius guidelines and connect the LC connectors into matching LC ports on patch panels, switches or transceivers. Use both fibres for full-duplex links and secure the cable to prevent strain at connectors.

Recommendations

Use OM5 fibre for short-reach, high-bandwidth multimode links and ensure compatibility with existing OM3/OM4 equipment. Keep connectors clean and avoid tight bends to maintain optimal signal performance.
