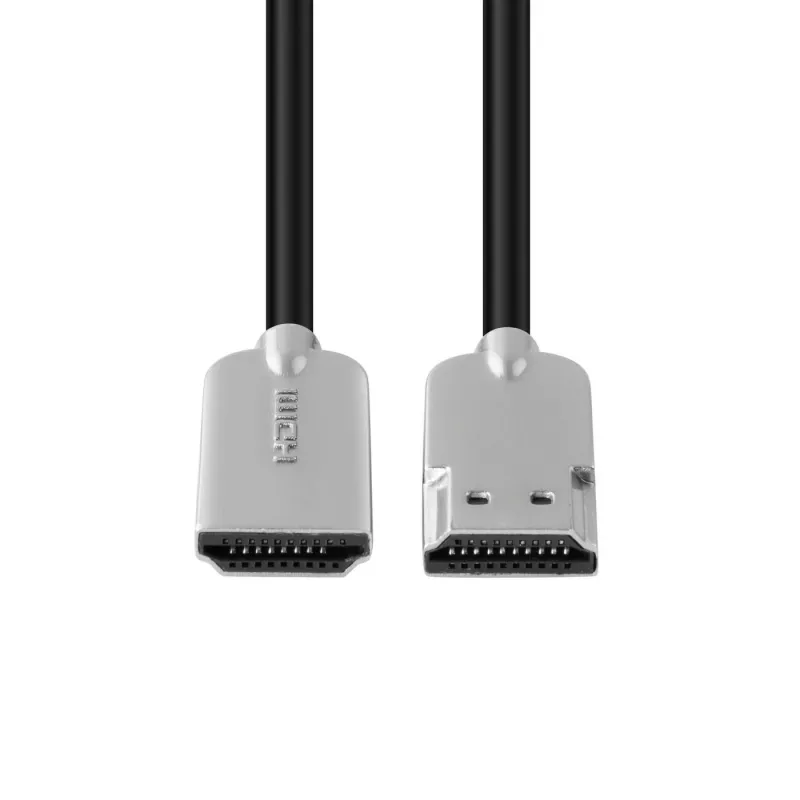

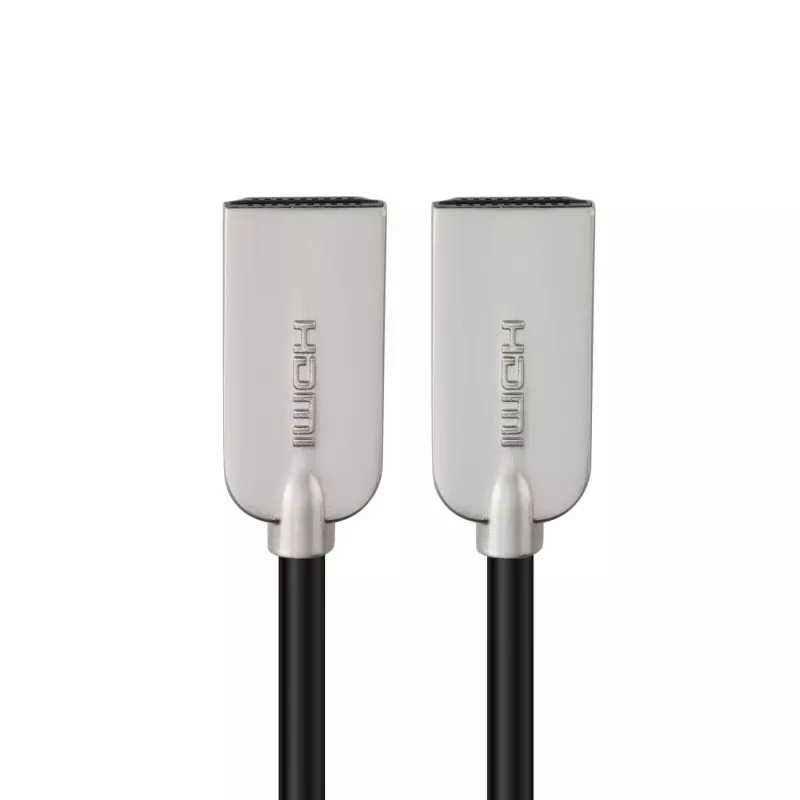

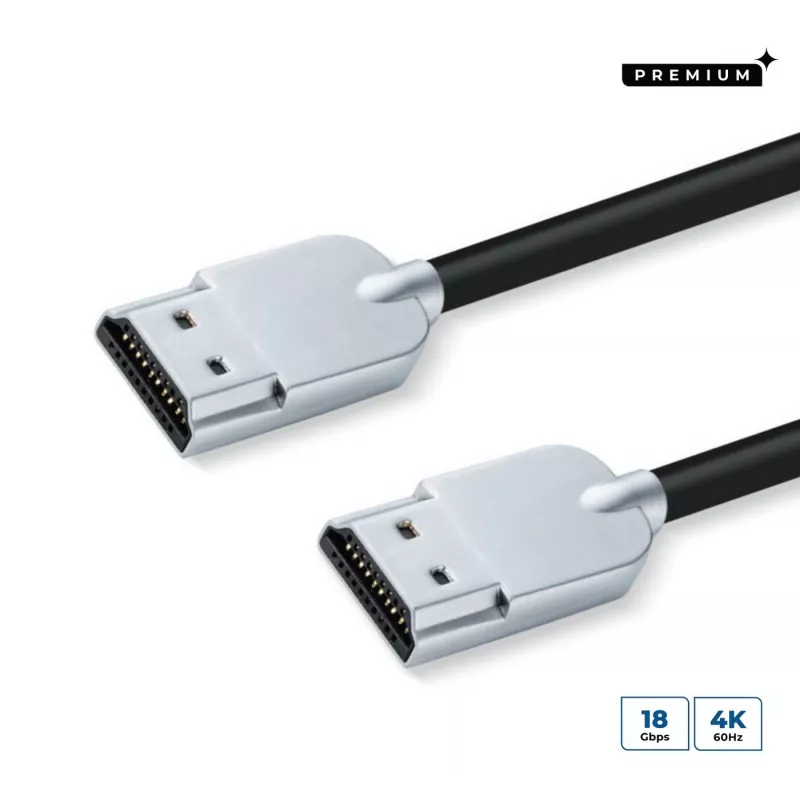

Microconnect HDMISUPERSLIM1M cavo HDMI 1 m HDMI Type-A (Standard) nero, metallizzato

The MicroConnect HDMISUPERSLIM1M is a 1 m ultra-slim HDMI 2.0 cable with HDMI Type A male connectors. It supports 4K*2K@60Hz, a maximum data transfer rate of 18 Gbit/s, 3D formats and Audio Return Channel (ARC). The cable features a slim 36AWG copper conductor, an outer diameter of 3.6 mm with PVC jacket and a silver metal connector shell in black finish, designed for reliable high-quality audio and video transmission between TVs, projectors, consoles and other HDMI devices.

Advantages

The ultra-slim construction reduces cable bulk and improves routing in tight spaces while maintaining HDMI 2.0 bandwidth up to 18 Gbit/s. Small diameter and flexible PVC jacket make the cable easy to install behind wall mounts and in entertainment centers. Metal connector shells provide durable contact points and a consistent connection with HDMI Type A ports.

Suitable for

• Connecting 4K@60Hz TVs and projectors
• Linking gaming consoles and media players to displays
• Small AV setups and wall-mounted installations with limited space
• Devices requiring ARC or 3D signal support

Key specifications

• Length: 1 m
• HDMI version: 2.0
• Maximum bandwidth: 18 Gbit/s
• Resolution support: up to 4K*2K @ 60 Hz
• Conductors: 36AWG copper (CU)
• Outer diameter: 3.6 mm (PVC jacket)
• Connectors: HDMI Type A male to HDMI Type A male
• Features: 3D, ARC
• Colour: Metallic connectors, black jacket
• Weight: 0.044 kg

How to use

Plug one HDMI Type A connector into the HDMI output of your source device (for example a Blu-ray player, gaming console or set-top box) and the other connector into the HDMI input of your display (TV or projector). Ensure both devices are powered on and select the corresponding HDMI input on the display. For ARC functionality, connect between TV and audio system’s HDMI ARC ports and enable ARC in both devices' settings if required.

Recommendations

Avoid sharp bends and heavy pulling on the cable; the slim 36AWG construction is flexible but can be damaged by excessive force. For wall routing use cable clips or conduits and keep the cable away from strong electromagnetic sources to preserve signal integrity.
