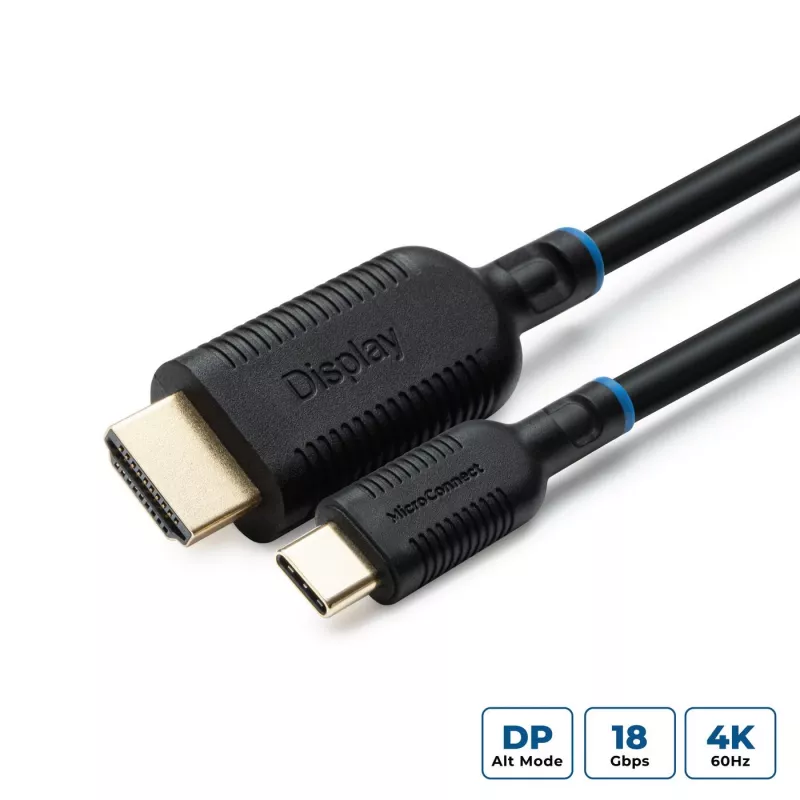

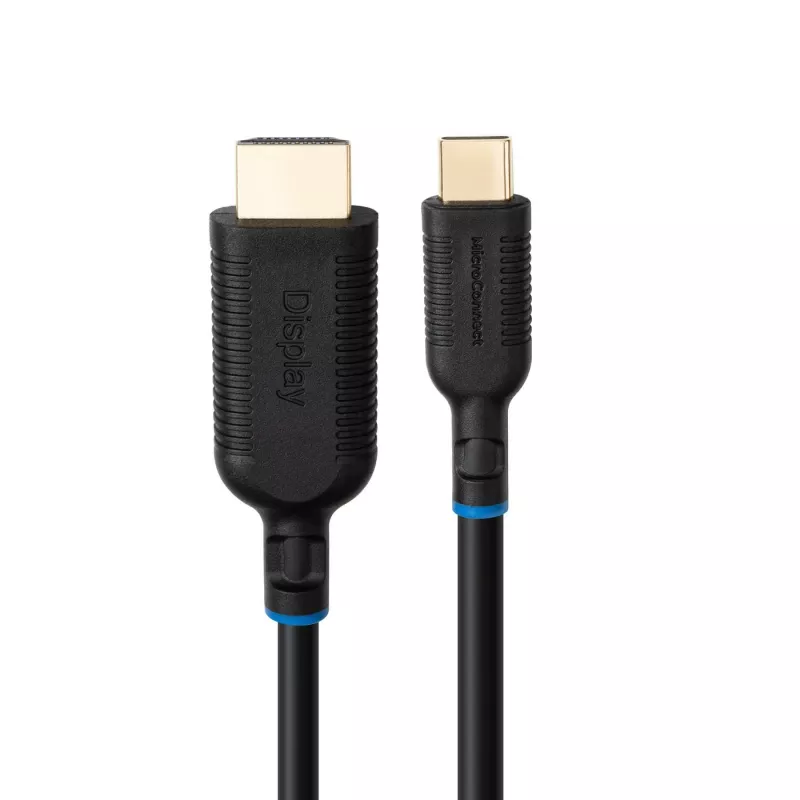

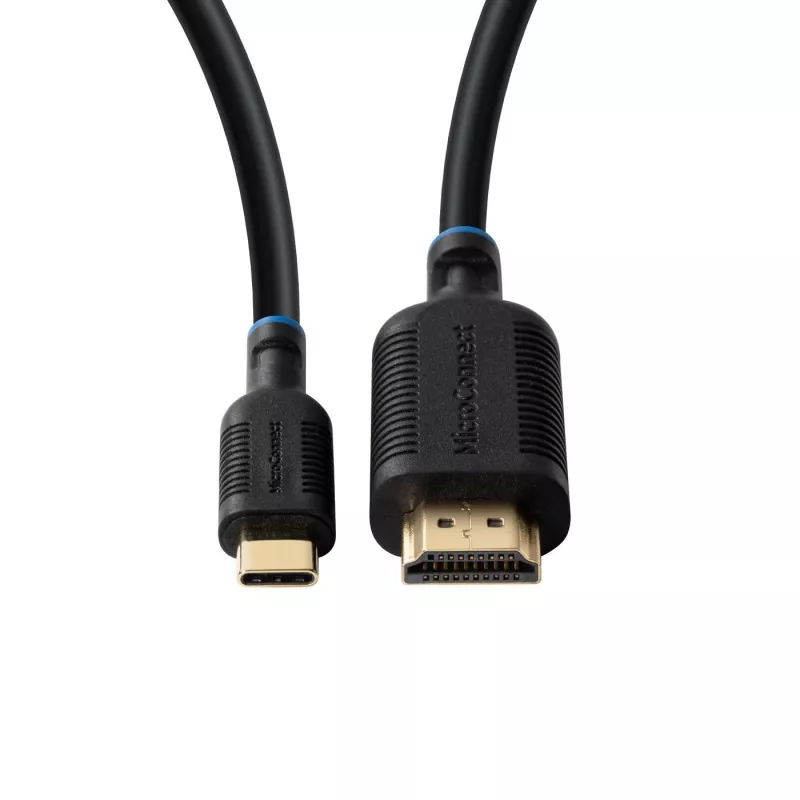

Microconnect MC-USBCHDMI5 adattatore cavo video 5 m HDMI Type-A (standard) USB Type-C nero

The Microconnect MC-USBCHDMI5 is a 5 m USB-C to HDMI video cable adapter designed to connect USB Type-C devices (with DP Alt Mode) or Thunderbolt 3 ports to HDMI displays. The cable supports HDR10 for improved contrast and color reproduction and is compatible with HDMI 2.0b equipment, providing up to 4K at 60Hz (3840x2160) and bandwidths up to 18 Gbps. With 4:4:4 chroma subsampling, the adapter preserves full color detail and remains backward compatible with earlier HDMI versions.

Advantages

This USB-C to HDMI cable offers high-resolution video transmission up to 4K 60Hz and HDR10 support for enhanced brightness and contrast. The 4:4:4 chroma subsampling ensures accurate color per pixel, and compatibility with HDMI 2.0b and older HDMI versions provides broad device support. The 5 m length and slim 4.8 mm diameter make the cable suitable for flexible setups while maintaining a lightweight profile (50 g).

Suitable for

• Connecting laptops or tablets with USB-C (DP Alt Mode) to TVs and monitors
• Connecting Thunderbolt 3 devices to HDMI displays
• Home entertainment systems requiring 4K HDR playback
• Presentations and video output in offices and classrooms

Key specifications

• Length: 5 m
• Connectors: USB Type-C to HDMI Type A
• Maximum resolution: 4K (3840x2160) at 60Hz
• Bandwidth: up to 18 Gbps
• Chroma subsampling: 4:4:4
• HDR: HDR10 support
• Diameter: 4.8 mm
• Weight: 50 g
• Standards: HDMI 2.0b compatible; backward compatible with earlier HDMI versions
• Compliance: RoHS

How to use

Connect the USB Type-C end of the Microconnect MC-USBCHDMI5 to a compatible source device that supports DP Alt Mode or to a Thunderbolt 3 port. Plug the HDMI Type A connector into an HDMI input on a display or TV. Set the display input to the corresponding HDMI port and, if necessary, configure the source device's display settings to the desired resolution and refresh rate (up to 4K 60Hz). Ensure the source device supports HDR10 to enable HDR functionality.

Recommendations

For reliable performance, avoid sharp bends and excessive tension along the 5 m cable. Use directly between source and display or through short, passive adapters when required; active signal extenders may be needed for longer runs. Verify that your source device supports DP Alt Mode or Thunderbolt 3 and that the display supports HDMI 2.0b and HDR10 to use full capabilities.
