Microconnect USB3.1CMDP2 Adattatore grafico USB 3840 x 2160 pixel nero

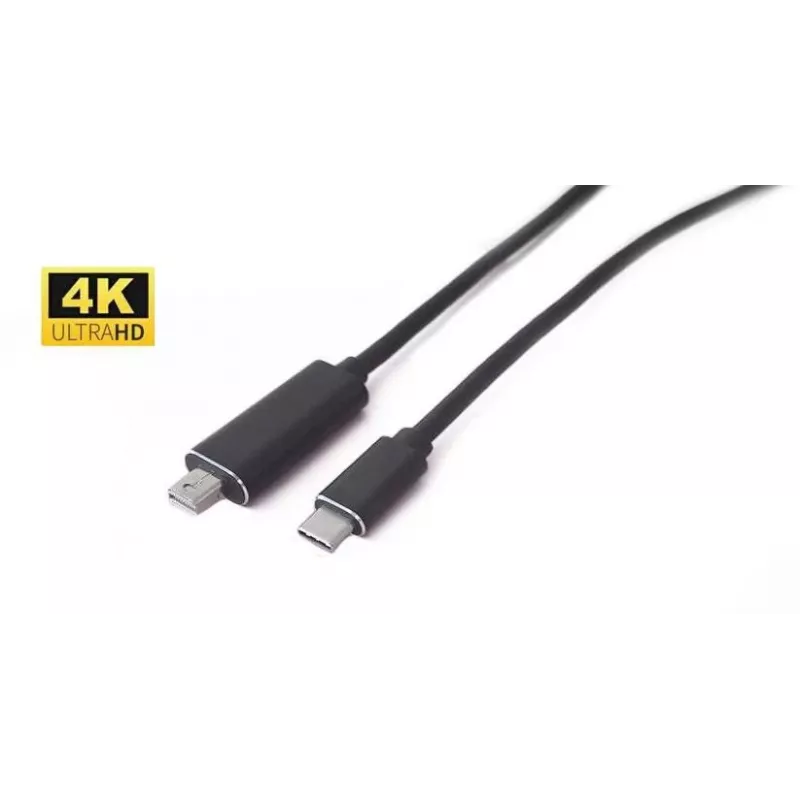

This USB-C male to Mini DisplayPort male adapter with a 1.83 m cable (MicroConnect USB3.1CMDP2) connects a Type‑C or Thunderbolt 3 source to a Mini DisplayPort monitor. It transmits DisplayPort video and supports up to 3840×2160 at 60 Hz when used with a host that provides DP 1.2 Alt Mode or with a Thunderbolt 3 host. The adapter is compact, lightweight (approx. 40 g) and finished in black.

Advantages

The adapter provides high-resolution video up to 4K@60Hz and is compatible with common video modes such as 1080p and 2160p. With a 1.83 m cable length it offers flexible placement between host and display. It works with USB-C hosts that support DP 1.2 Alt Mode and transmits DP signal from Thunderbolt 3 hosts, ensuring broad compatibility with modern laptops and devices.

Suitable for

• Connecting USB-C or Thunderbolt 3 laptops to Mini DisplayPort monitors
• Extending or mirroring a desktop display for productivity
• Using high-resolution external displays for video playback or presentations

Key specifications

• Model: MicroConnect USB3.1CMDP2
• Cable/connectors: USB-C male to Mini DisplayPort male
• Cable length: 1.83 m
• Maximum resolution: 3840 × 2160 @ 60 Hz
• Supported video modes: 1080p, 2160p
• Compatibility: USB-C hosts with DP 1.2 Alt Mode; Thunderbolt 3 hosts (DP signal)
• Colour and weight: Black, approx. 0.04 kg
• MPN / EAN: USB3.1CMDP2 / 5706998664518

How to use

Connect the USB-C male plug to a compatible Type‑C or Thunderbolt 3 source that supports DP 1.2 Alt Mode. Plug the Mini DisplayPort male connector into the Mini DisplayPort input of the monitor. Set the display mode (extend or mirror) in the host operating system display settings. Ensure the host device is configured to output video through its USB‑C/Thunderbolt port.

Recommendations

For best results use with hosts that explicitly support DP 1.2 Alt Mode or Thunderbolt 3. Verify monitor input selection and system display settings if no image appears. Avoid sharp bends in the cable and keep connections dry and free from dust.
