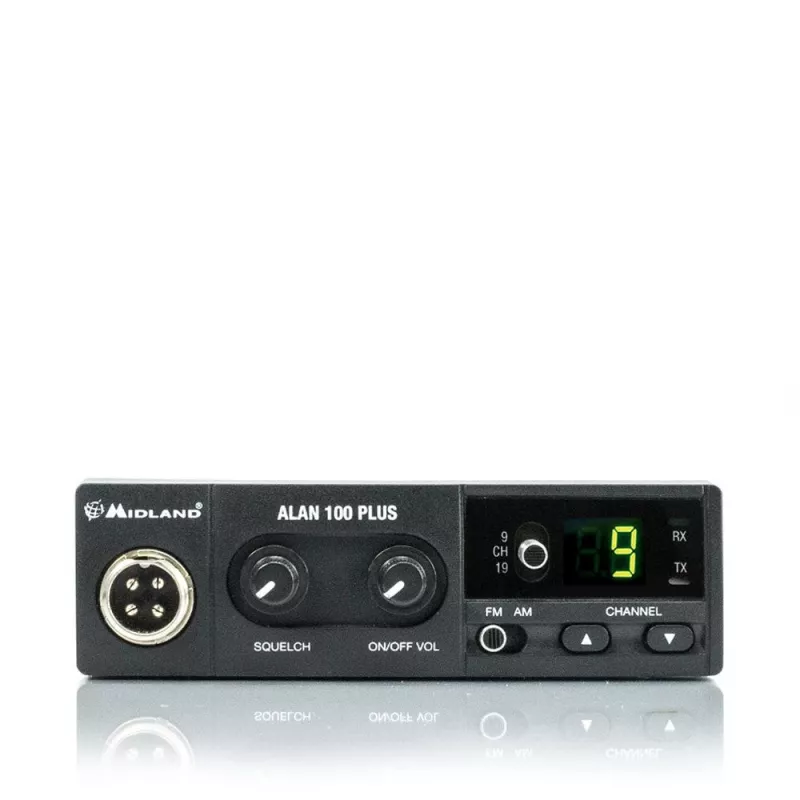

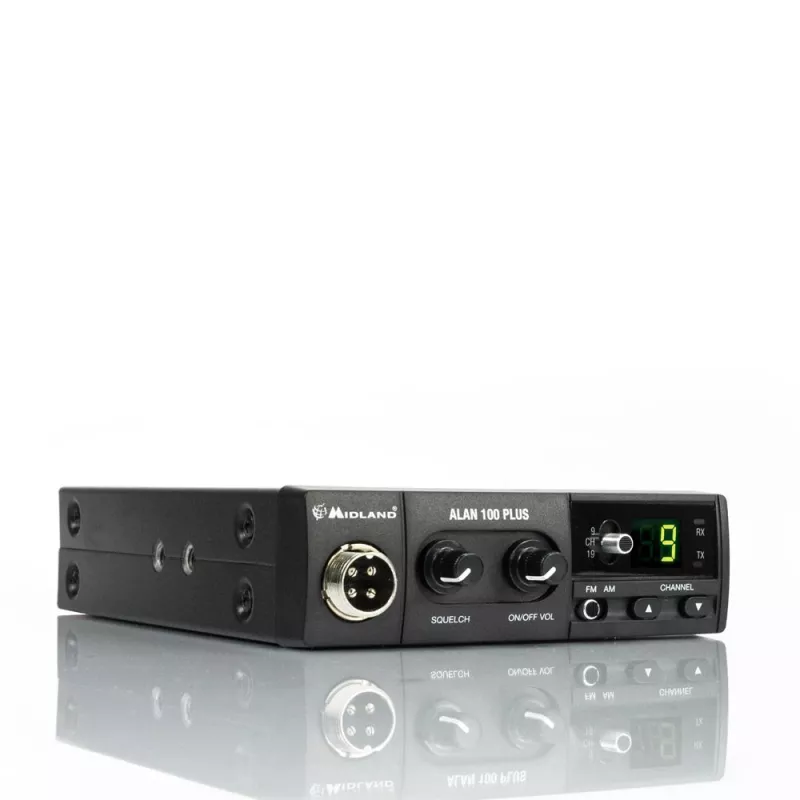

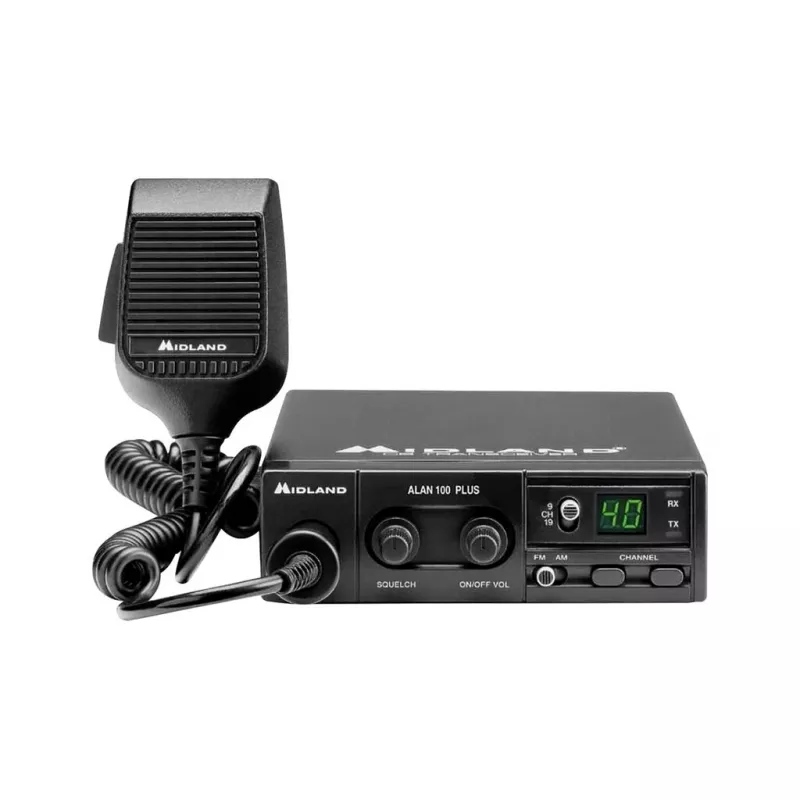

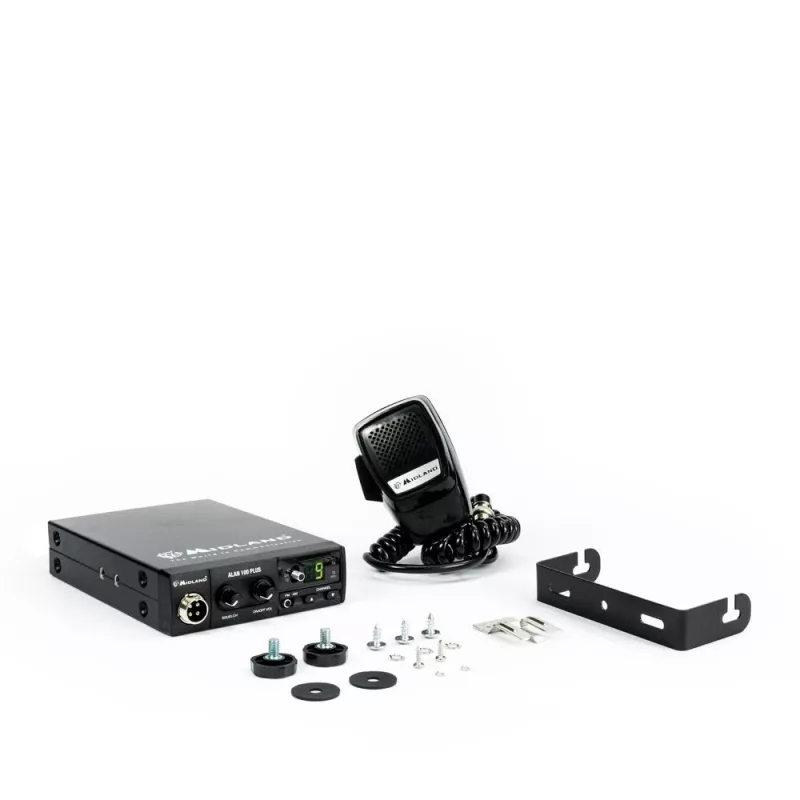

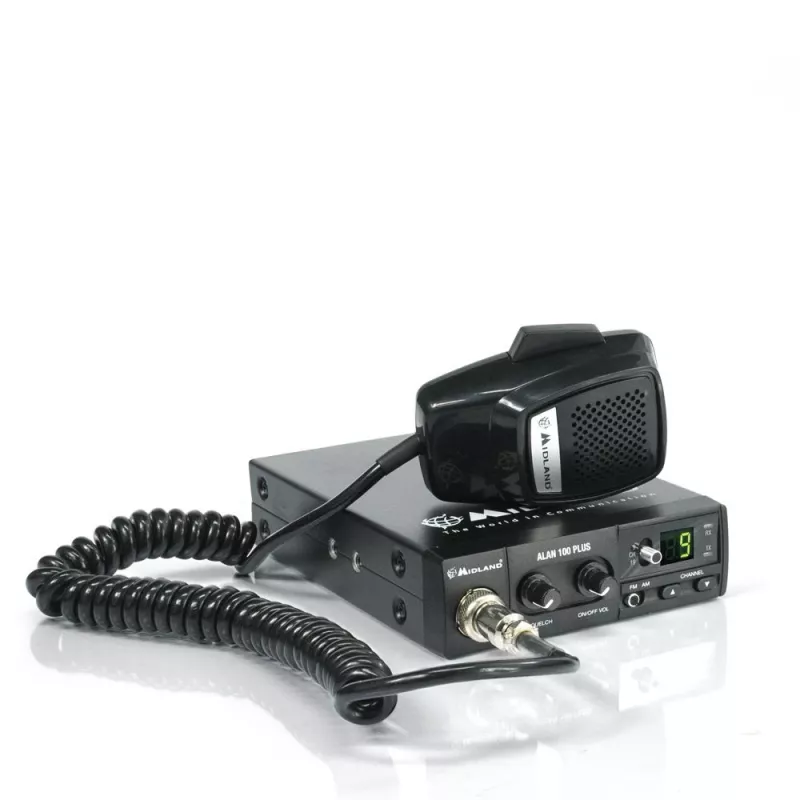

Midland ALAN 100+ B ricetrasmettitore CB AM/FM

The Midland ALAN 100+ B is a reliable and versatile CB radio station designed for both AM and FM operation. With 40 channels and a robust 4W output power, it ensures clear communication over short to medium distances. Ideal for truckers, off-road enthusiasts, and emergency communication, this mobile CB radio combines essential features with ease of use.

Advantages

Dual AM/FM modulation provides flexibility for different communication needs. The built-in Automatic Noise Limiter (ANL) reduces background noise for clearer reception. Quick access to emergency channels 9 and 19 via dedicated switch enhances safety. The bright LED channel display ensures easy readability even in low light conditions.

Suitable for

• Truck drivers and fleet operators
• Off-road and 4x4 enthusiasts
• Emergency and disaster communication
• Hobbyist radio operators

Key specifications

• Channels: 40 AM/FM
• Frequency range: 26.965 - 27.405 MHz
• RF output power: 4W (AM and FM)
• Power supply: 12.6 VDC nominal
• Antenna connector: SO-239 (UHF Female)
• Display: LED channel display
• Squelch: Manual
• Noise reduction: ANL (Automatic Noise Limiter)
• External speaker jack: Yes (3.5mm mono)
• Microphone connector: 4-pin
• Controls: Channel selector, Volume with ON/OFF, Squelch, AM/FM switch, ANL switch, CH9/19 switch
• Receiver sensitivity: 0.5 µV (AM 10dB S/N), 0.5 µV (FM 20dB S/N)
• Audio output power: 2.0W @ 8 Ohm
• Operating temperature: -10°C to +55°C

Recommendations

For optimal performance, pair with a high-quality CB antenna and ensure proper grounding. The Midland ALAN 100+ B is a solid choice for reliable two-way communication in various environments.
