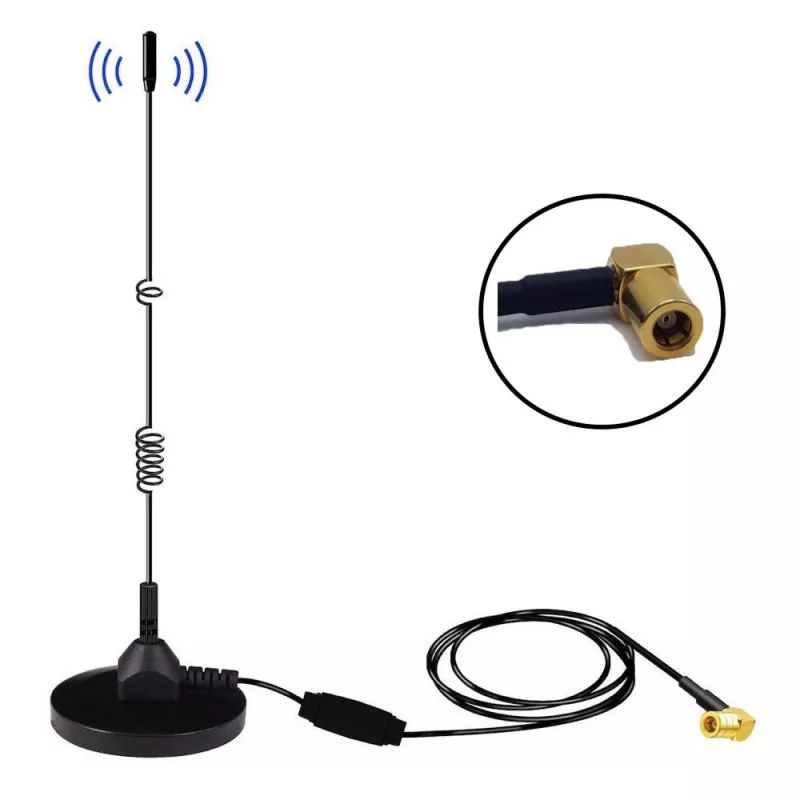

Midland Albrecht MAG31 antenna magnetica DAB+ con amplificatore, banda III, cavo 3 m, connettore SMB 62336

Experience enhanced DAB+ reception in your vehicle with the Midland Albrecht MAG31 magnetic base antenna. Featuring an integrated amplifier with ~20 dB gain, it boosts weak signals across Band III (174-240 MHz) for clear digital radio.

Overview

The MAG31 is a compact magnetic mount antenna designed for DAB+ vehicle radio reception. It includes a 3-meter cable terminated with an SMB connector, making installation straightforward. The amplifier is powered via phantom power (5-12V) through the SMB connection, eliminating the need for a separate power cable.

What stands out

• Integrated amplifier with ~20 dB gain for improved reception
• Magnetic base for easy mounting on vehicle roof or metal surface
• 3-meter cable with SMB connector for flexible installation
• Supports DAB+ Band III frequencies (174-240 MHz)
• 50 Ohm impedance for optimal signal transfer

Technical details

• Antenna Type: Magnetic Base Antenna
• Radio Standard: DAB+
• Frequency Band: Band III
• Frequency Range: 174 - 240 MHz
• Amplifier Gain: ~20 dB
• Cable Length: 3 meters
• Connector Type: SMB (male)
• Impedance: 50 Ohm
• Power Supply (Amplifier): 5-12V (Phantom Power via SMB)
• Antenna Height: 14.5 cm
• Base Diameter: 30 mm
• Colour: Black
• Material: ABS Plastic, Metal (base)

Our verdict

The MAG31 offers a practical solution for adding DAB+ to your vehicle, with a built-in amplifier and easy magnetic mounting. Its compact size and included cable make it a solid choice for improved digital radio reception.
