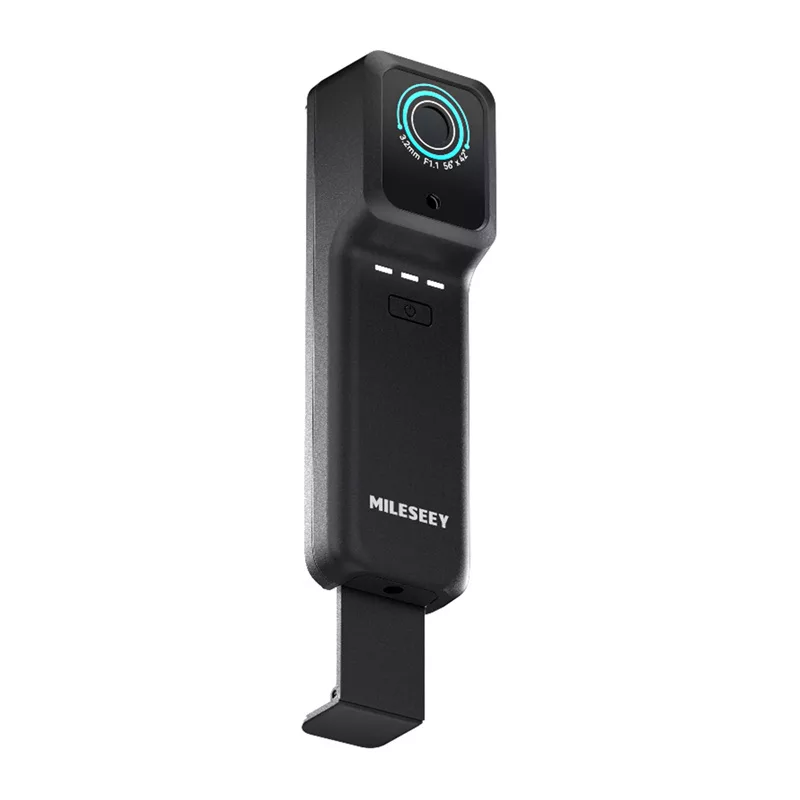

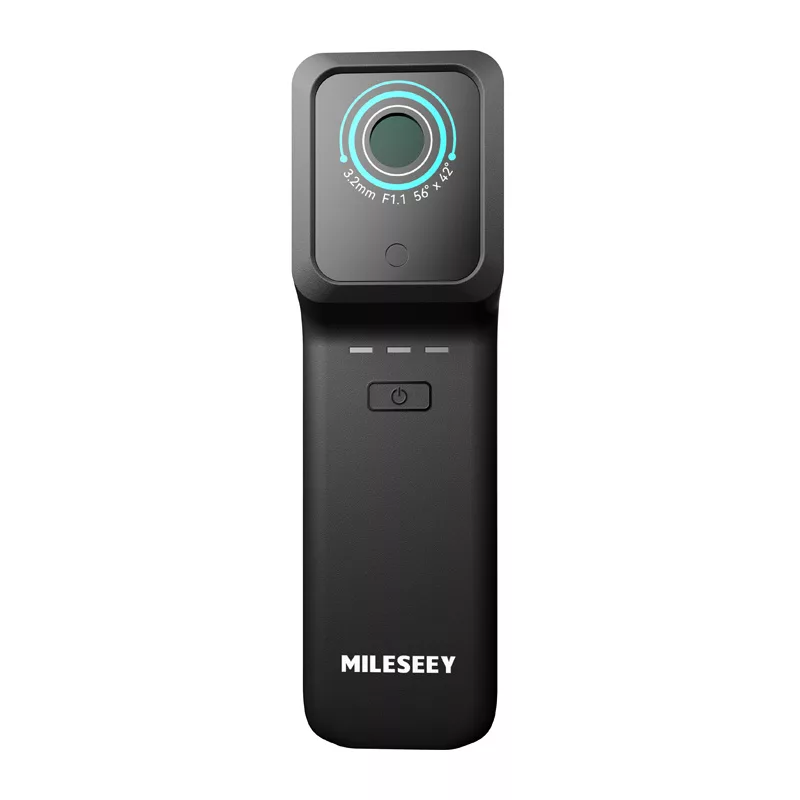

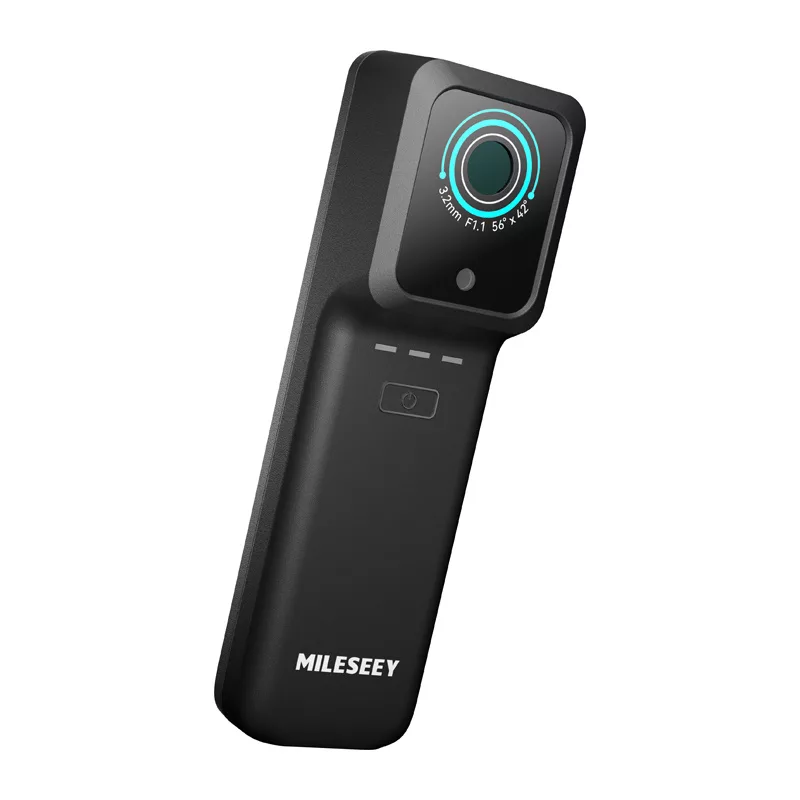

Mileseey TP2 Plus termocamera Wi-Fi

The Mileseey TP2 Plus is a professional-grade Wi-Fi thermal imaging camera designed for building diagnostics, electrical inspections, and preventive maintenance. With a high-resolution 256x192 infrared sensor and a 5MP visual camera, it delivers clear thermal and fusion images to quickly identify temperature anomalies.

Advantages

High thermal sensitivity (<40mK) ensures accurate detection of subtle temperature differences. The 3.5-inch LCD display with 640x480 resolution provides crisp image viewing. Built-in Wi-Fi enables easy image sharing and remote analysis via smartphone app. IP54 rating offers protection against dust and water splashes for reliable use in challenging environments.

Suitable for

• Building envelope inspections (heat loss, moisture)
• Electrical panel and component troubleshooting
• HVAC system diagnostics
• Mechanical equipment monitoring
• Preventive maintenance and energy audits

Key specifications

• Infrared Resolution: 256 x 192 pixels
• Thermal Sensitivity (NETD): <40mK (@25°C, F#1.0)
• Temperature Range: -20°C to 550°C (-4°F to 1022°F)
• Accuracy: ±2°C or ±2% of reading
• Field of View: 56° x 42°
• Display: 3.5-inch LCD, 640x480 pixels
• Image Modes: Thermal, Visual, Fusion (Picture-in-Picture)
• Visual Camera: 5 Megapixel
• Connectivity: Wi-Fi, USB Type-C
• Internal Storage: 16GB eMMC
• Battery Life: Up to 8 hours
• IP Rating: IP54
• Emissivity Adjustment: 0.01 to 1.00
• Laser Pointer: Yes

Recommendations

For best results, ensure the target's emissivity is set correctly. The fixed focus lens is optimized for distances >0.5m. Use the included USB cable for charging and data transfer. The device is not intended for medical or human temperature screening.
