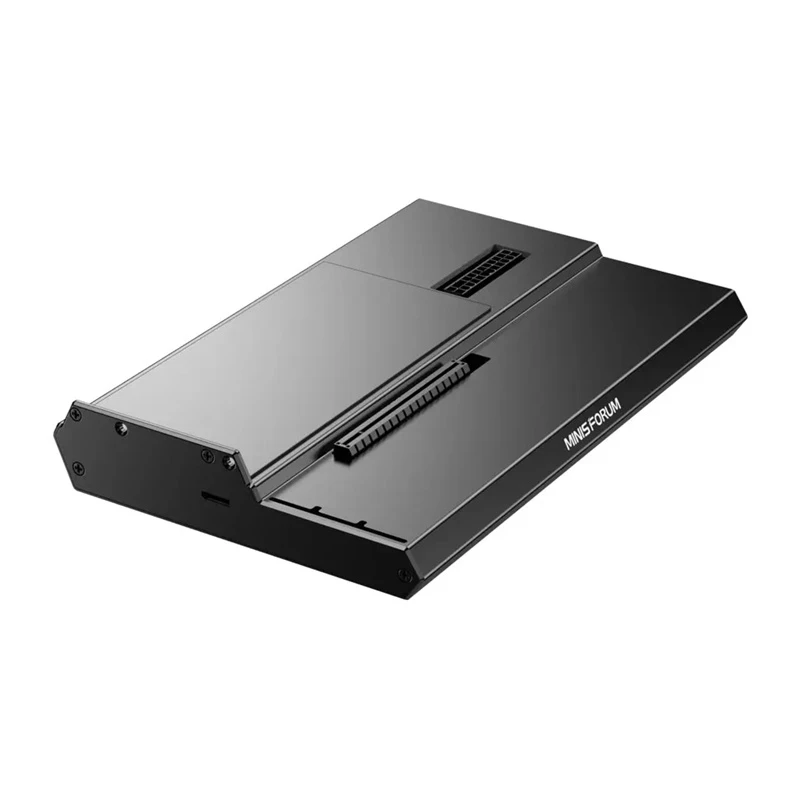

MINIS FORUM DEG1 OCuLink Docking Station

The MINIS FORUM DEG1 OCuLink Docking Station is a high-performance external GPU enclosure designed to expand the graphics capabilities of compatible Mini PCs. Featuring an OCuLink interface (SFF-8612) with PCIe 4.0 x4 electrical lanes, it delivers up to 64 Gbps bandwidth for smooth gaming, content creation, and professional workloads. The aluminum alloy chassis supports full-size, triple-slot GPUs and relies on passive cooling, leaving the GPU's own cooling system to manage thermals. Power is supplied by a user-provided SFX power supply (not included).

Advantages

Unlock desktop-class graphics performance on your Mini PC with minimal latency. The OCuLink connection offers dedicated bandwidth superior to Thunderbolt alternatives, ensuring high frame rates and fast data transfers. The compact, sturdy design integrates seamlessly into any workspace.

Suitable for

• Gamers seeking to upgrade Mini PCs like UM790 Pro or UM780 XTX
• Content creators needing dedicated GPU power for rendering and video editing
• Professionals requiring multiple displays or VR-ready performance

Key specifications

• Host Connection Interface: OCuLink (SFF-8612)
• GPU Slot: PCIe 4.0 x16 (physical), x4 (electrical)
• Max Bandwidth: 64 Gbps
• Power Supply: SFX (user-supplied, not included)
• Supported GPU Size: Full-size, up to triple-slot
• Enclosure Material: Aluminum Alloy
• Cooling: Passive
• Color: Black
• Included Accessories: 1x OCuLink Cable
• Compatibility: Minisforum Mini PCs with OCuLink port and other compatible systems

Recommendations

For optimal performance, pair with a high-quality SFX power supply rated for your GPU's requirements. Ensure your Mini PC has an OCuLink port (e.g., UM790 Pro, UM780 XTX). The docking station is designed for desktop use and does not include a GPU or power supply.
