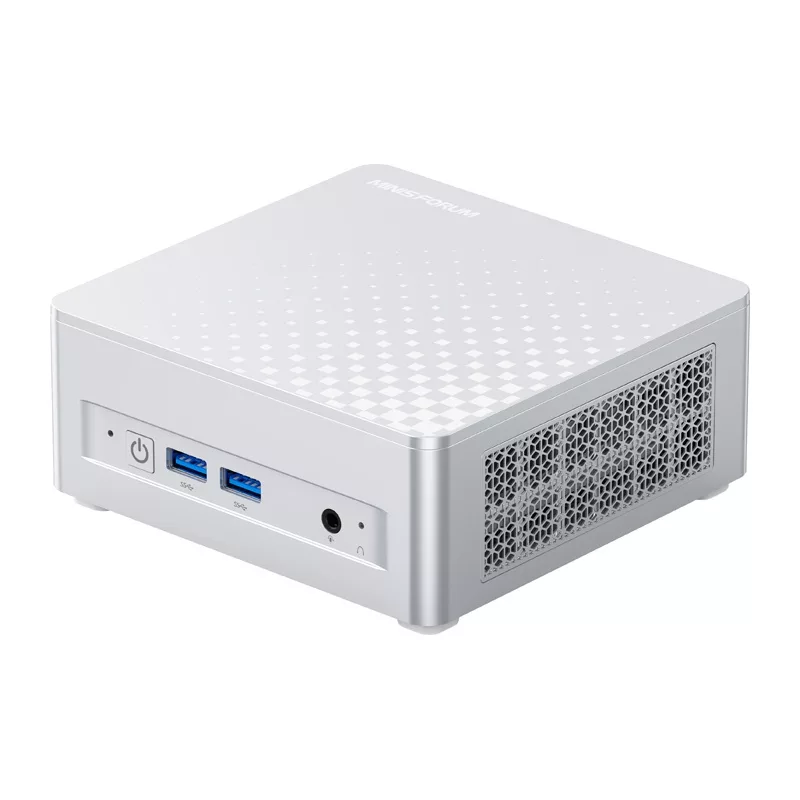

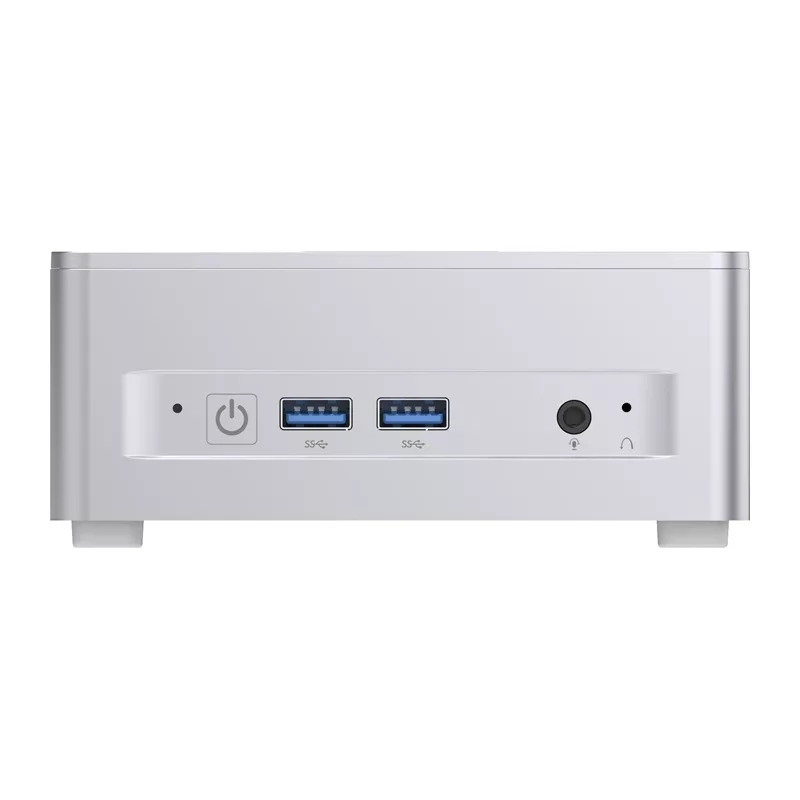

MINIS FORUM M1 Plus Core i5-12600H Mini PC Barebone

The MINIS FORUM M1 Plus is a compact and powerful barebone mini PC designed for users who demand high performance in a small footprint. Powered by the Intel Core i5-12600H processor with 12 cores and 16 threads, it delivers exceptional multitasking and computing capabilities. This barebone system comes without RAM, storage, or operating system, allowing you to customize it to your exact needs.

Advantages

With its ultra-compact form factor, the M1 Plus saves valuable desk space while providing desktop-level performance. The dual-channel DDR4 SO-DIMM slots support up to 64GB of RAM, and the M.2 PCIe 4.0 NVMe slot ensures lightning-fast storage speeds. Additionally, a 2.5-inch SATA bay offers flexible storage expansion. Connectivity options include 2.5 Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.2, and multiple video outputs (HDMI 2.0, DisplayPort 1.4, USB-C with DP Alt Mode) for multi-monitor setups.

Suitable for

• Home office and productivity tasks
• Media centers and light gaming
• Digital signage and kiosks
• Compact workstation for developers

Key specifications

• Processor: Intel Core i5-12600H (12 cores, 16 threads, up to 4.5 GHz)
• Graphics: Intel Iris Xe Graphics (80 EUs)
• Memory: 2x DDR4 SO-DIMM slots, up to 64GB (not included)
• Storage: 1x M.2 2280 PCIe 4.0 NVMe slot, 1x 2.5-inch SATA bay (not included)
• Ethernet: 1x 2.5 Gigabit RJ45
• Wireless: Wi-Fi 6 (802.11ax), Bluetooth 5.2
• Video Outputs: 1x HDMI 2.0, 1x DisplayPort 1.4, 1x USB-C (DP Alt Mode)
• USB Ports: 2x USB 3.2 Gen2 Type-A, 2x USB 2.0 Type-A, 1x USB 3.2 Gen2 Type-C
• Audio: 3.5mm combo jack
• Power: DC 19V external adapter
• Cooling: Active fan cooling
• VESA mount compatible

Recommendations

This barebone system is ideal for users who want to build a custom mini PC with their choice of RAM, storage, and operating system. Its powerful processor and versatile connectivity make it suitable for a wide range of applications.
