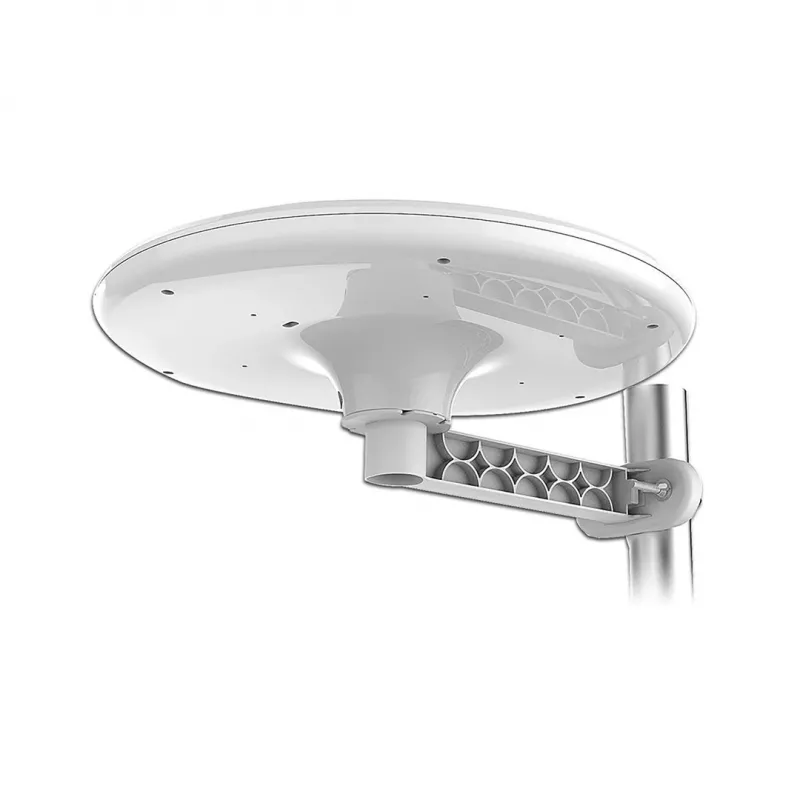

Mistral MI-ANT07 UFO Antenna - bianco

The Mistral MI-ANT07 UFO Antenna is a high-performance active omnidirectional antenna designed for superior reception of DVB-T, DVB-T2, DAB, and FM radio signals. Its compact UFO design and robust construction make it ideal for both indoor and outdoor use, delivering clear and stable signal reception even in challenging environments.

Advantages

With a gain of up to 30 dB in UHF and 28 dB in VHF, this antenna ensures excellent signal amplification for weak signals. The weather-resistant, UV-protected housing guarantees long-lasting performance outdoors. Easy to mount on a pole, wall, or balcony, it offers flexible installation options.

Suitable for

• Home and office TV and radio reception
• Outdoor and indoor use
• Areas with weak or distant broadcast signals

Key specifications

• Antenna Type: Active Omnidirectional
• Signal Reception: DVB-T, DVB-T2, DAB, FM Radio
• Frequency Range: VHF 174-230 MHz, UHF 470-790 MHz, FM 87.5-108 MHz
• Gain: Up to 28 dB (VHF), Up to 30 dB (UHF)
• Impedance: 75 Ohm
• Noise Figure: < 3 dB
• VSWR: < 2.0
• Polarization: Horizontal and Vertical
• Connector Type: F-type
• Power Supply: DC 5V (via coaxial cable) or DC 12V (via included power injector/adapter)
• Power Consumption: < 1W
• Mounting Options: Pole, Wall, Balcony
• Weather Resistance: UV-resistant, Waterproof housing
• Material: ABS Plastic
• Color: White
• Included Accessories: Power injector, AC/DC adapter, Mounting kit
• Application Environment: Outdoor and Indoor

Recommendations

For optimal performance, ensure the antenna is mounted in a location with minimal obstructions. Use high-quality coaxial cables to maintain signal integrity. This antenna is an excellent choice for users seeking reliable reception of digital terrestrial TV and radio broadcasts.
