MITON MT-P121 scatola di derivazione da parete, grigio (RAL 7035), IP65, 8 ingressi cavo

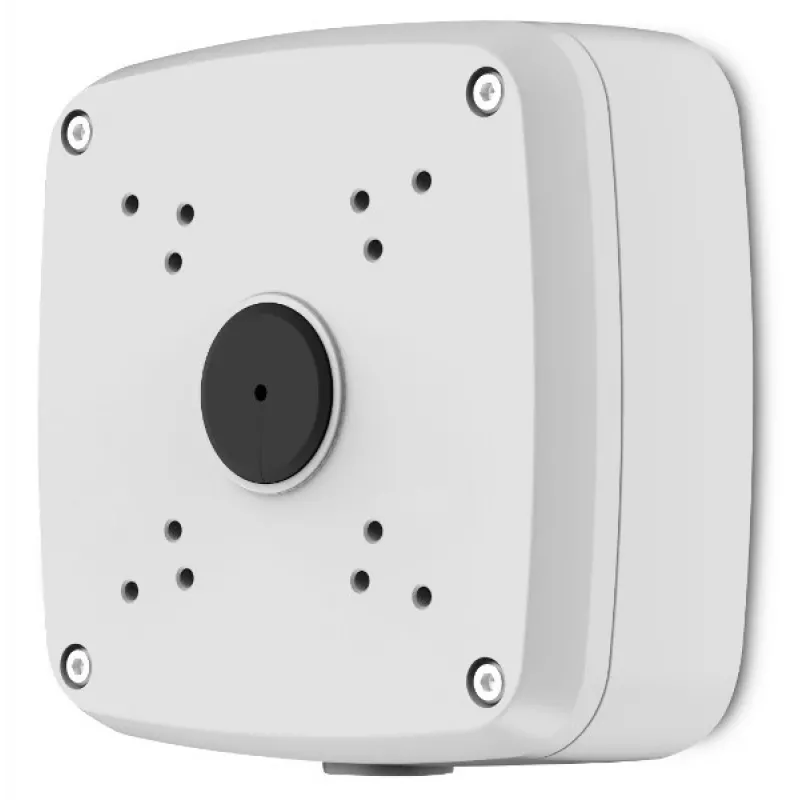

The MITON MT-P121 is a high-quality surface-mounted junction box designed for reliable electrical installations in both indoor and outdoor environments. Manufactured from durable polypropylene (PP) with a screw-on lid and TPE seal, this box offers IP65 protection against dust and water ingress, making it suitable for demanding applications. With 8 flexible membrane cable entries and a compact internal depth of 45 mm, it provides ample space for wiring connections while maintaining a low profile.

Advantages

Robust construction with UV resistance and halogen-free materials ensures long-lasting performance and safety. The IP65 rating guarantees protection against dust and low-pressure water jets, while the IK07 impact resistance adds mechanical durability. The screw-on lid with TPE seal provides a secure and weatherproof closure.

Suitable for

• Electrical junction and connection boxes for power and control circuits
• Outdoor lighting, garden power outlets, and security systems
• Industrial control panels and automation enclosures
• Telecommunications and network infrastructure

Key specifications

• Protection Rating: IP65
• Mounting Type: Surface-mounted
• Material: Polypropylene (PP)
• Color: Grey (RAL 7035)
• Lid Type: Screw-on
• Number of Cable Entries: 8 flexible membrane entries
• Glow Wire Test: 650°C
• Operating Temperature Range: -25°C to +60°C
• Impact Resistance: IK07
• Halogen-Free: Yes
• UV Resistant: Yes
• Rated Insulation Voltage: 690 V AC
• Internal Depth: 45 mm
• Seal Material: TPE (Thermoplastic Elastomer)
• Application Environment: Indoor and Outdoor
• Type of Enclosure: Junction Box / Installation Box
• Screw Material: Polyamide (PA)
• Flammability Class: V-2
• Certification: CE, RoHS

Recommendations

For optimal performance, ensure that cable glands are properly tightened to maintain the IP65 seal. This box is ideal for use with cables up to appropriate diameters for the membrane entries. Always follow local electrical codes and regulations during installation.
