Modem ALLNET ALL-MC116VDSL2 160 Mbit/s 2x RJ45 SFP nero

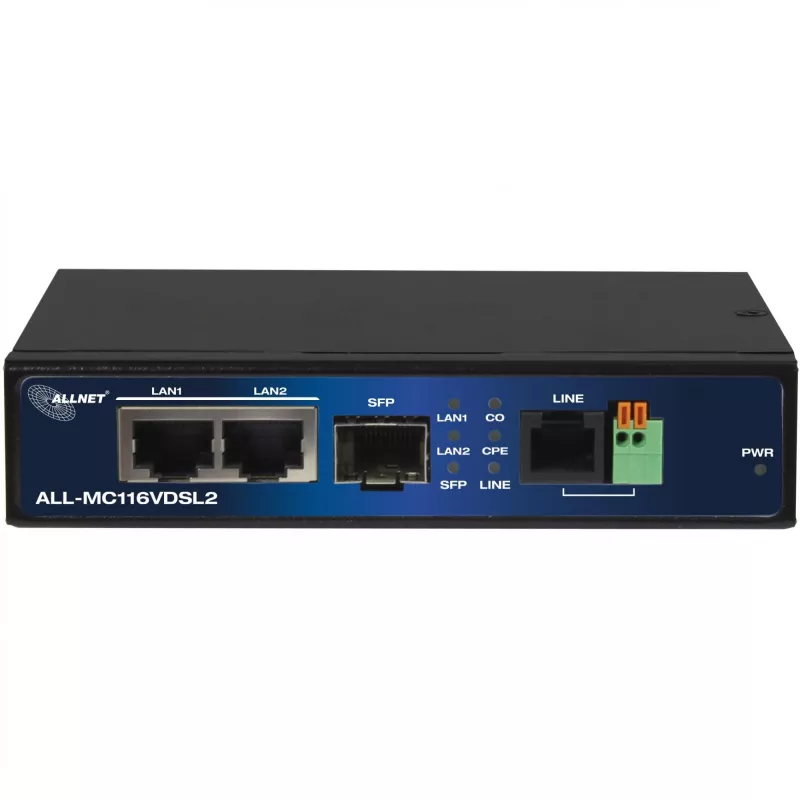

The ALLNET ALL-MC116VDSL2 is a single-port VDSL2 bridge modem designed for point-to-point connections over a two-wire line (typically a telephone line). It provides VDSL2 performance with RJ11 and terminal jack options for copper wiring, an optional Gigabit SFP slot for fiber or copper GBIC modules, and two Gigabit RJ45 ports for network integration. The metal housing and available grounding option (compatible with ALL95100 lightning protection) support stable operation and protection in professional or residential installations.

Advantages

The modem supports up to 160 Mbit/s throughput and offers flexible interface options — RJ11, terminal jacks, two Gigabit RJ45 ports and an optional Gigabit SFP slot — to adapt to different media and network topologies. A DIP switch allows quick selection between master and slave modes, and front-panel LEDs provide clear status indication. The device’s metal housing and compliance with common certifications ensure durability and safe operation.

Suitable for

• Point-to-point VDSL2 links over existing telephone copper pairs
• Bridging legacy copper lines to modern Ethernet networks
• Small office or home installations requiring up to 160 Mbit/s VDSL2
• Environments where optional fibre connectivity via SFP is needed

Key specifications

• Maximum data transfer rate: 160 Mbit/s
• Ethernet LAN (RJ-45) ports: 2 (Gigabit)
• SFP: optional Gigabit SFP slot (for fibre or GBIC modules)
• VDSL2 single-port bridge with RJ11 and terminal jack connections
• Housing: metal; Product colour: Black
• Weight: 0.34 kg
• Certifications: CE, FCC, RoHS (as stated by manufacturer)

How to use

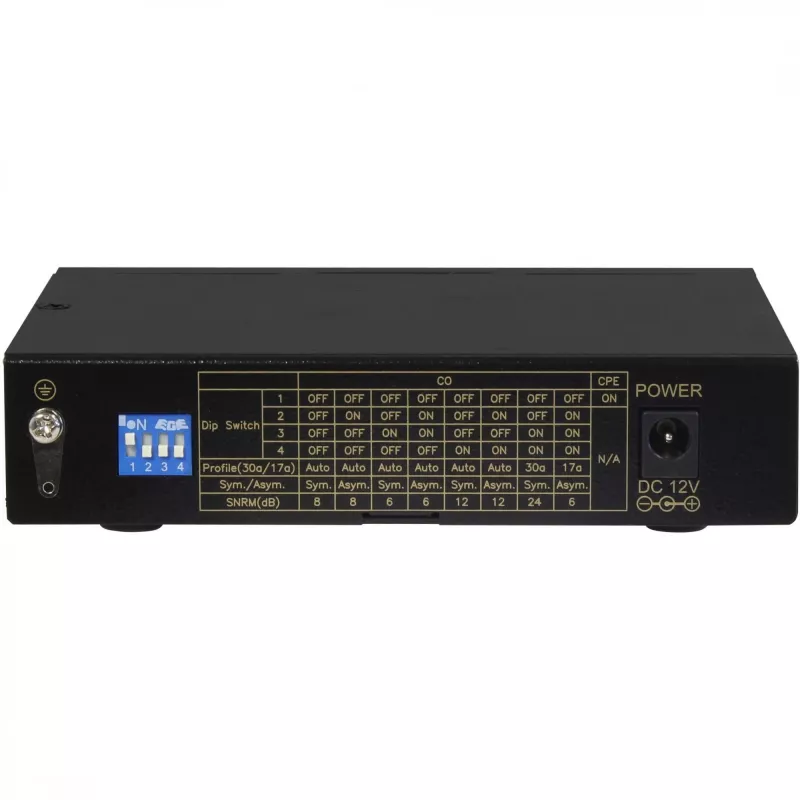

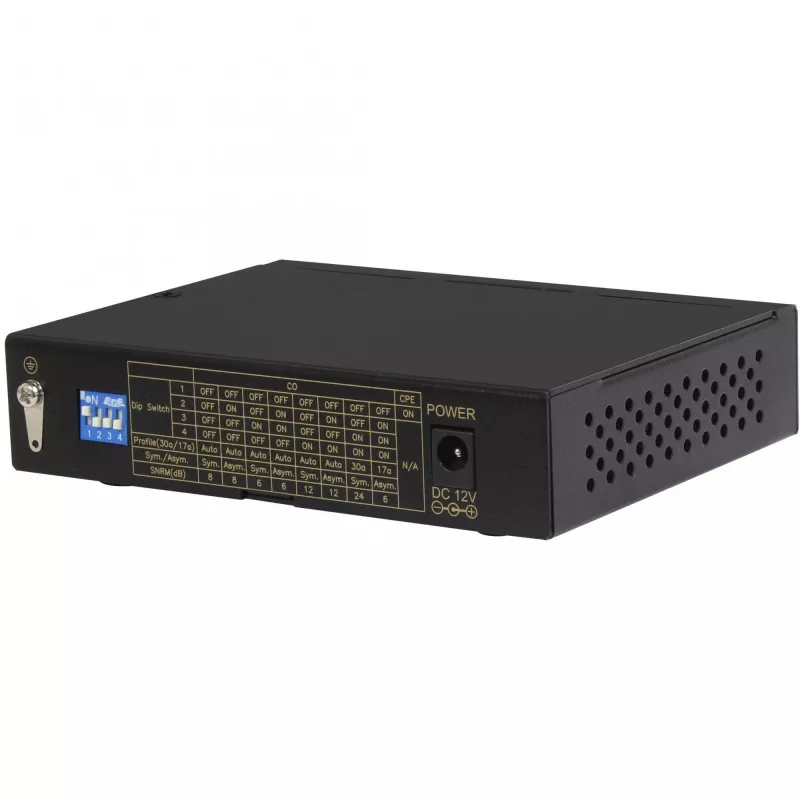

Connect the VDSL2 line using the RJ11 jack or terminal jacks to the existing two-wire telephone pair. Use the Gigabit RJ45 ports to integrate the modem into the local network; install an SFP module in the optional slot if fibre or alternative GBIC connectivity is required. Configure the device as master or slave using the DIP switch on the unit and monitor operation via the front-panel LEDs.

Recommendations

For installations in areas with lightning risk, use the dedicated grounding and pair the modem with the ALL95100 lightning protection device. Place the device in a ventilated, dry location and ensure firmware and network settings follow operator or site-specific requirements for VDSL2 services.
