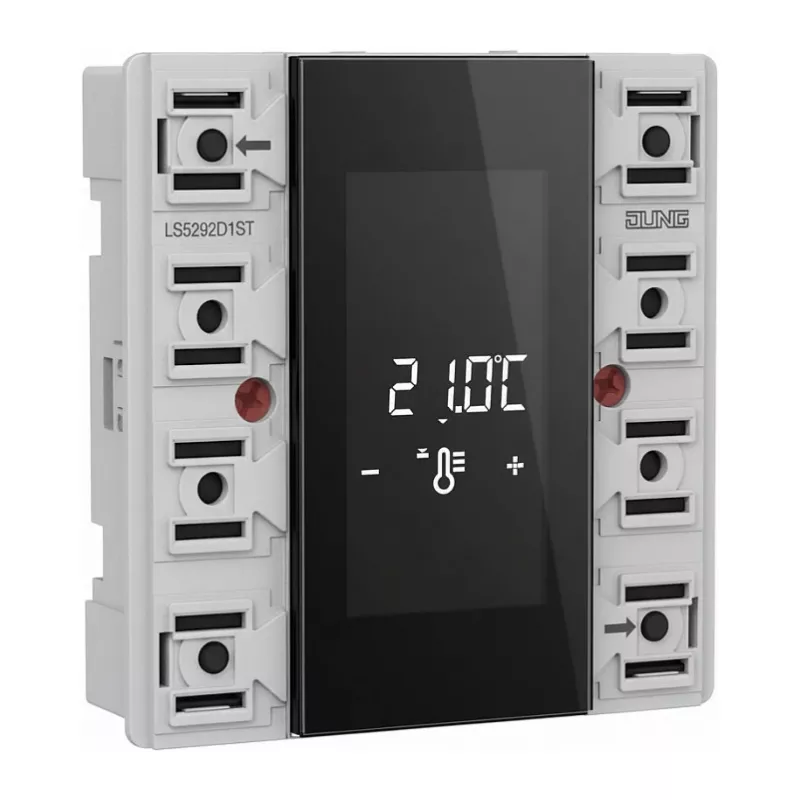

Modulo controllore ambiente jung LS 5292 D1 ST KNX controllore ambiente compatto 2 moduli F50

The jung LS 5292 D1 ST KNX Kompakt-Raumcontroller 2‑gang F50 is a compact KNX room controller module designed for integration into KNX building automation. It provides two independent channels to control room functions such as heating setpoint switching, connecting room sensors and actuators, and executing basic automation logic. The module's compact form factor makes it suitable for installation on DIN rail or within control panels where space is limited, while maintaining compatibility with standard KNX systems.

Advantages

The device offers two separately addressable channels, allowing independent control of two circuits or zones from a single module. Its compact dimensions make installation in confined electrical cabinets straightforward. Designed for KNX environments, it supports interoperability with sensors, thermostats and actuators from the same bus system. The controller also simplifies wiring and reduces the need for multiple devices by consolidating functions into one unit.

Suitable for

Key specifications

How to use

Install the module on a DIN rail or within a control panel according to electrical installation regulations and KNX wiring standards. Connect the KNX bus and wire the outputs to actuators or relay inputs as required for the two channels. Configure group addresses and parameters using ETS software to assign functions such as temperature setpoints, switching thresholds and sensor inputs. Test each channel after configuration to verify correct communication on the KNX bus and proper actuation of connected devices.

Recommendations

For reliable operation, use certified KNX installation practices: separate power and signal wiring where specified, protect the module from moisture and excessive heat, and perform ETS configuration only after physical wiring is complete. Match sensor and actuator types to the intended control strategy and verify compatibility within the KNX installation.
