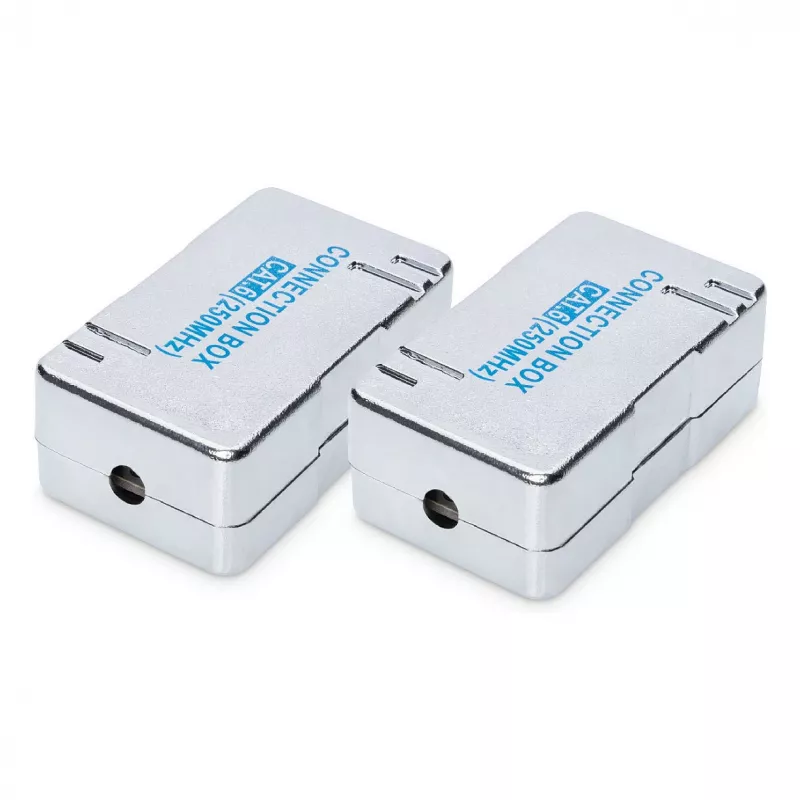

Modulo di connessione Digitus CAT 6 per cavi twisted-pair, 2 pezzi, LSA, dorato, bianco

The Digitus CAT 6 Connection Module is a compact module for connecting or extending twisted pair cables in structured networks. Compliant with Category 6 transmission properties and designed for use up to 250 MHz / 1GBase-T, the module supports standard installation methods and provides gold‑plated contacts and LSA termination for reliable electrical contact. The white ABS housing and integrated strain relief make it suitable for flush, surface and trunking installations.

Advantages

The module meets ISO/IEC 11801 (3rd Ed.), EN 50173-1 and EIA/TIA 568-C norms and offers gold-plated RJ45 contact surfaces for improved conductivity and corrosion resistance. It includes Krone LSA+ termination clamps compatible with EIA/TIA 568 A & B color coding, supports AWG 22–26 cables, and has robust physical and dielectric properties for professional network installations.

Suitable for

• Extending existing twisted pair installation cables
• Replacing defective cable links in horizontal or backbone cabling
• Installations in trunking, surface-mounted and flush-mounted outlets
• 1 Gbit/s Ethernet networks up to 250 MHz

Key specifications

• Transmission category: Cat 6
• Frequency / speed: Up to 250 MHz, 1GBase-T (1 Gbit/s)
• Standards: ISO/IEC 11801 (3rd Ed.), EN 50173-1, EIA/TIA 568-C
• Connectors: LSA termination (Krone LSA+), RJ45 female with tinned phosphor bronze and 0.5 µm gold-plated contacts
• Cable compatibility: AWG 22–26, solid and stranded conductor
• Housing material: ABS (UL-94V-0), colour: white
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
• Contact resistance: < 20 mΩ; Insulation resistance: > 500 MΩ
• Operating temperature: -20 °C to +70 °C
• Package quantity: 2 pieces

How to use

Prepare the installation cable and strip the outer sheath according to standard practices. Terminate each conductor into the color-coded LSA clamp following EIA/TIA 568 A or B wiring. Insert the cable into the integrated strain relief and secure it. Plug the RJ45 connector into the female port to establish the connection. Use two modules where a pair is required or to create a continuous extension of an existing link.

Recommendations

For predictable network performance, maintain installation practices consistent with Cat 6 guidelines: keep cable lengths within specified channel limits, avoid sharp bends and electromagnetic interference, and verify the terminated link with appropriate network testers after installation.
