Modulo di controllo Eltako FSG71/1-10V interfaccia dimmer 1–10V per controllo luci

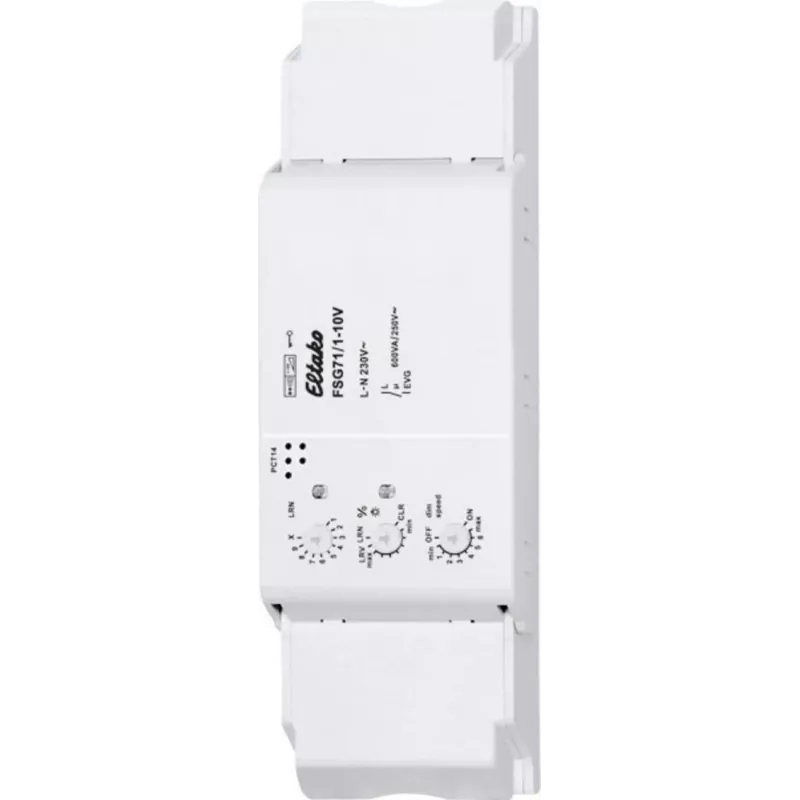

Eltako FSG71/1-10V is a control module that provides a standard 1–10V dimming interface for LED drivers and ballasts. It is designed for lighting control applications in building automation, commercial and residential installations where smooth, centralized or local brightness adjustment is required.

Advantages

The FSG71/1-10V offers a standard-compatible 1–10V output for reliable dimming, compact integration into control systems and compatibility with a wide range of LED drivers and electronic ballasts. Its design supports stable brightness control and straightforward wiring for retrofit or new installations.

Suitable for

Key specifications

How to use

Connect the FSG71/1-10V to the control bus or controller output and wire the 1–10V output to the dimmable LED driver or electronic ballast following the manufacturer's wiring diagram. Ensure correct polarity and observe any grounding or shielding recommendations for the control cable. Configure the upstream controller or automation system to provide the appropriate 1–10V control signal for the desired dimming range.

Recommendations

Use with compatible 1–10V drivers and ballasts and follow Eltako installation guidelines. Verify compatibility with the lighting fixtures and, if needed, consult the driver or ballast datasheet for recommended control wiring and maximum cable lengths.
