Modulo keystone DeLOCK 86743

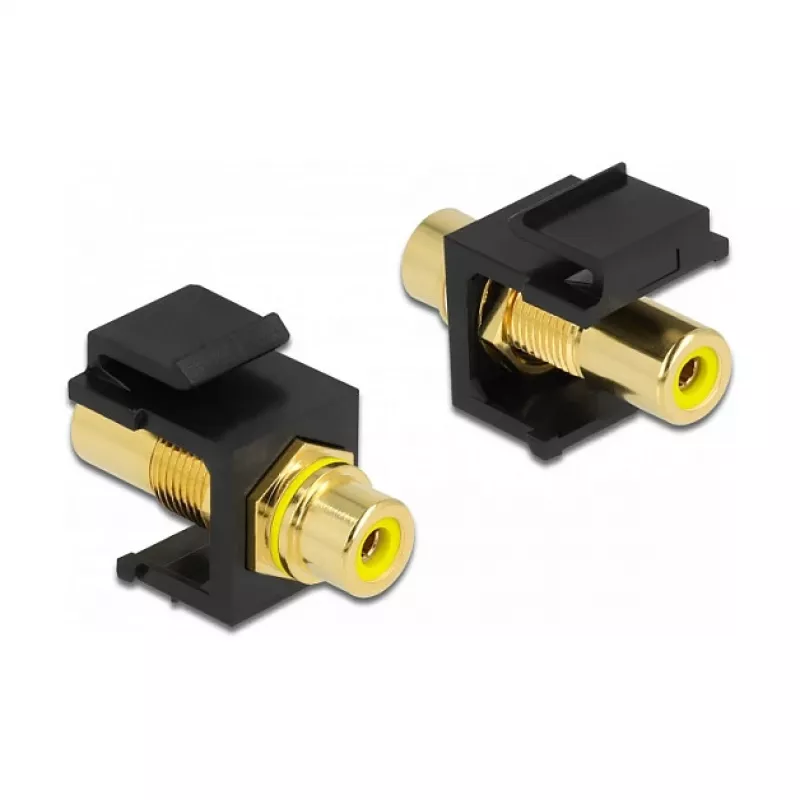

The DeLOCK 86743 keystone module provides a compact, flat solution for extending audio connections with a standard RCA connector. Finished in black, the module measures 16.3 mm wide, 33.2 mm deep and 22.3 mm high and is supplied as a single unit for integration into keystone-compatible panels, faceplates or surface-mount boxes.

Advantages

The flat, standardized housing allows simple snap-in installation into Keystone patch panels and faceplates. The RCA connector ensures compatibility with common audio/video cables and devices. Its compact dimensions save space in installations while providing a reliable, single-port connection point.

Suitable for

• Extending an RCA stereo cable
• Installation in Keystone patch panels
• Mounting in faceplates or surface-mount boxes

Key specifications

• Brand: DELOCK
• Model: 86743
• Connector: RCA (female)
• Colour: Black
• Dimensions (W×D×H): 16.3 × 33.2 × 22.3 mm
• Packaging: Single unit
• Category: Audio / Video cables
• MPN: 86743
• EAN: 4043619867431

How to use

Insert the module into a compatible Keystone opening until it snaps into place. Connect the RCA cable or device to the module’s RCA jack. For surface-mount boxes or faceplates, align the module with the cutout and press firmly until secured. Verify the connection by playing audio to confirm signal continuity.

Recommendations

Use this keystone module in dry, indoor environments and avoid excessive mechanical stress on connected cables. Ensure the host panel or faceplate supports keystone-style modules and that cables are connected and routed to prevent strain on the RCA connector.
