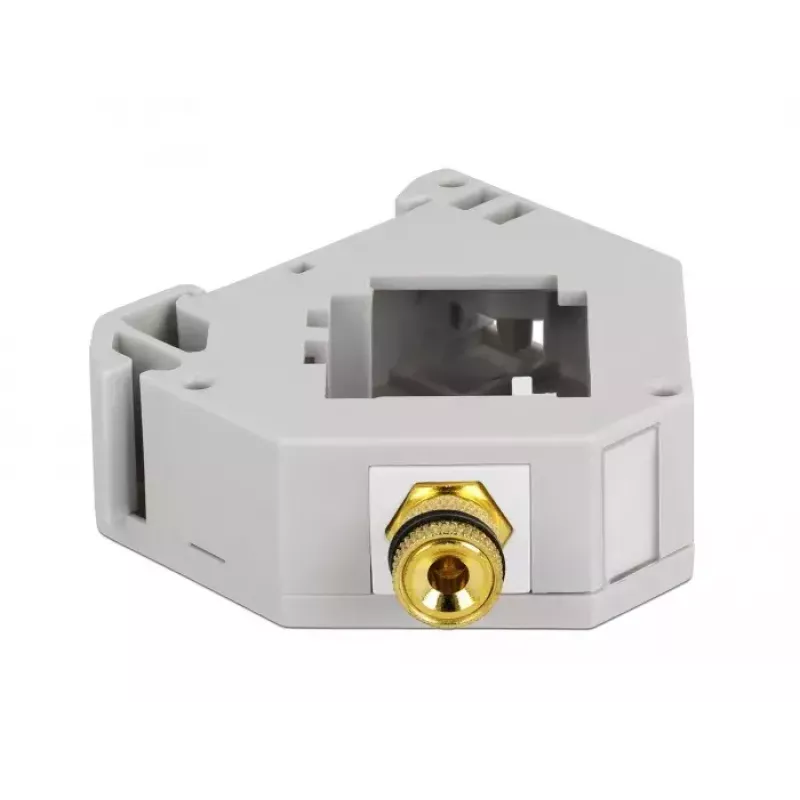

Modulo Keystone DELOCK 87162 — morsetto a morsetto, grigio/bianco, 60,1 × 59,4 × 21,6 mm

DELOCK 87162 keystone module provides a compact binding post to binding post connection designed for panel or faceplate mounting. The insert measures 60.1 × 59.4 × 21.6 mm and is finished in grey and white. It accepts speaker cables and banana plugs, offers a built-in labelling field, and can be used to organise low-voltage or audio connections in test benches, racks or wall plates.

Advantages

The module combines two binding posts in a standard keystone form factor, enabling quick replacement or reconfiguration of faceplates and panels without custom machining. Its compact dimensions and neutral colour make it suitable for integration into equipment racks, wall plates and lab enclosures. The included labelling field simplifies identification of connections. The unit supports banana plugs and bare speaker wire, which ensures compatibility with common audio and test equipment connectors.

Suitable for

• Panel and faceplate installations for audio connections
• Test bench and laboratory low-voltage routing
• Equipment racks and DIN rail-mounted enclosures
• Speaker cable connections and banana plug coupling

Key specifications

• Form factor: keystone module insert for panel/faceplate mounting
• Connection type: binding post to binding post (supports banana plugs and bare wire)
• Material and finish: grey/white housing suitable for visible installations
• Dimensions: 60.1 × 59.4 × 21.6 mm

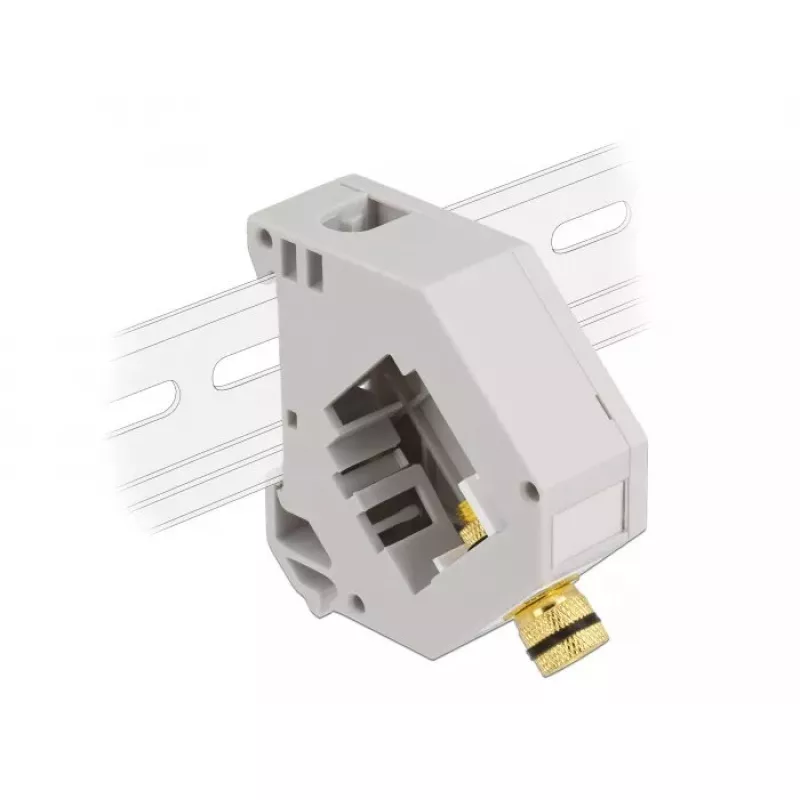

• Mounting options: panel/faceplate and 35 mm DIN rail compatibility
• Identification: integrated small labelling field for marking connections

How to use

Install the keystone module into a compatible panel or faceplate opening sized for standard keystone inserts, ensuring the module snaps or secures into place. For DIN rail mounting, attach the adapter to a 35 mm wide DIN rail following the enclosure or rail manufacturer's guidance for secure fixing. Connect speaker wire by loosening the binding post, inserting the bare conductor and retightening, or insert banana plugs into the post as required. Use the labelling field to mark the function or channel for easy identification during use.

Recommendations

For reliable low-voltage and audio connections, ensure connectors are tightened securely and wires are free of frayed strands. Avoid using the module for mains voltage applications; it is intended for speaker-level and low-voltage test connections. When mounting multiple modules, label each insertion field consistently to simplify wiring and maintenance.
