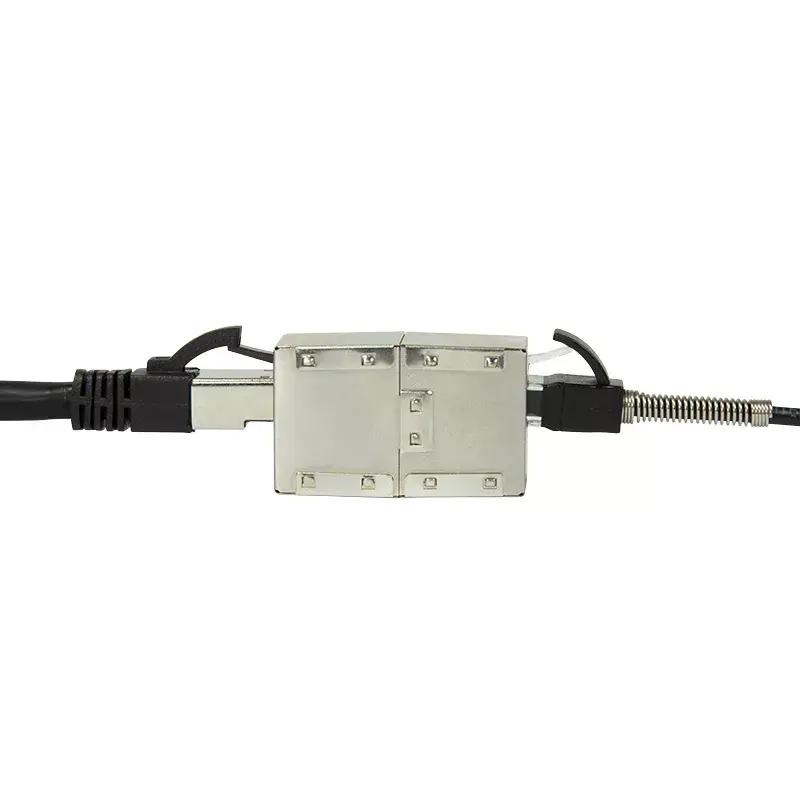

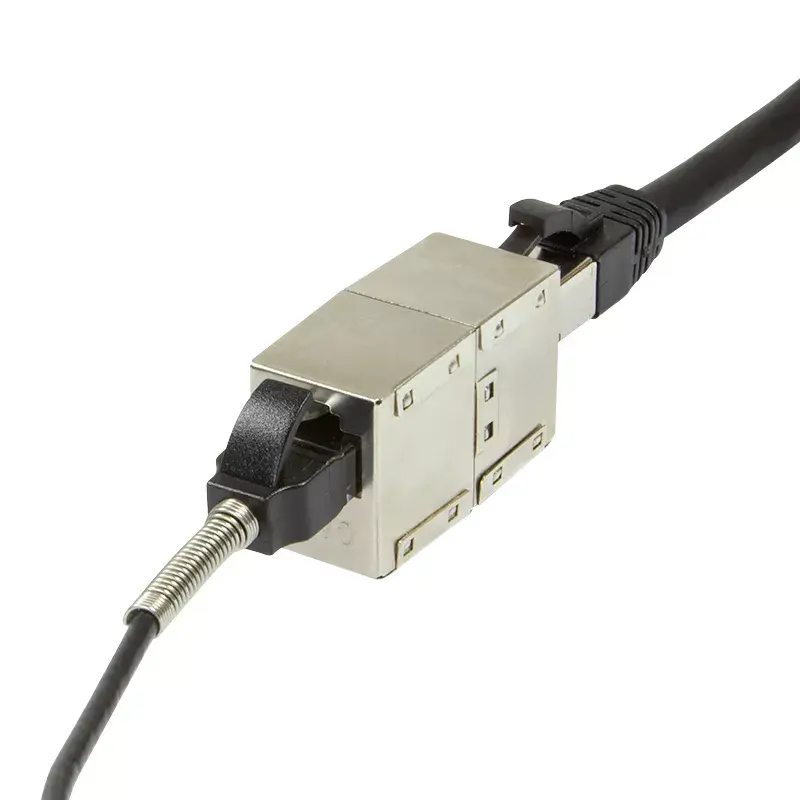

Modulo keystone LogiLink NP0058

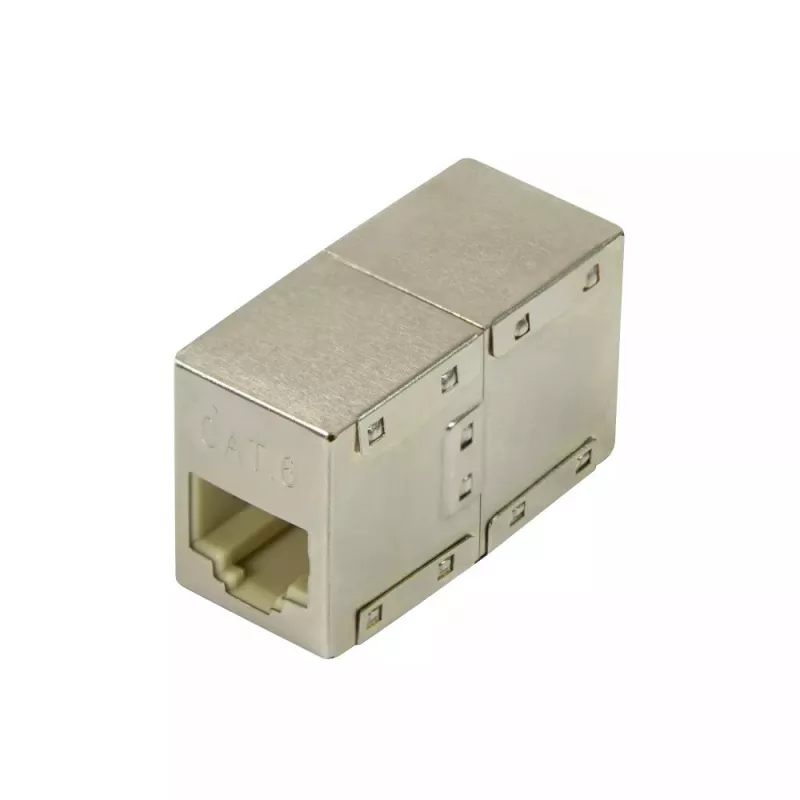

The LogiLink NP0058 flat keystone module is designed for RJ-45 network connections within structured cabling installations. Its compact metallic-finish housing provides a low-profile outlet for patch panels, wall plates and keystone frames. The module's small footprint and standard keystone form factor allow straightforward insertion and secure seating in compatible faceplates and patch panels.

Advantages

The metallic finish offers mechanical durability and consistent aesthetic integration with metal or modern plastic installation frames. Its flat, slim design reduces protrusion from faceplates and keeps cabling installations neat in dense or shallow mounting spaces. The module accepts standard RJ-45 jacks and provides a stable contact point for Ethernet patch cords, facilitating reliable signal transmission when installed correctly.

Suitable for

• Home and small office Ethernet wall outlets
• Patch panels in rack-mounted or modular cabinets
• Keystone wall plates and surface-mount boxes
• Renovation projects where a low-profile connector is required

Key specifications

• Connector type: RJ-45 keystone module compatible with standard keystone ports
• Housing finish: metallic
• Dimensions: width 32.2 mm, depth 23 mm, height 25 mm
• Mounting: fits standard keystone faceplates, panels and snap-in frames
• Pack size: single module

How to use

Prepare the keystone faceplate or patch panel by ensuring the slot is free of debris. Terminate the network cable on an RJ-45 connector or use an appropriate IDC termination where required, following the network wiring standard in use (T568A or T568B). Insert the keystone module into the compatible opening until it snaps into place and secure the faceplate or panel. After installation, connect patch cords to verify link integrity and perform any necessary network tests to confirm correct wiring and signal quality.

Recommendations

For best results, use the module with compatible keystone frames and standardized RJ-45 terminations. Verify cable category and connector type compatibility before installation, and avoid excessive bending or strain on patched cables to maintain performance.
