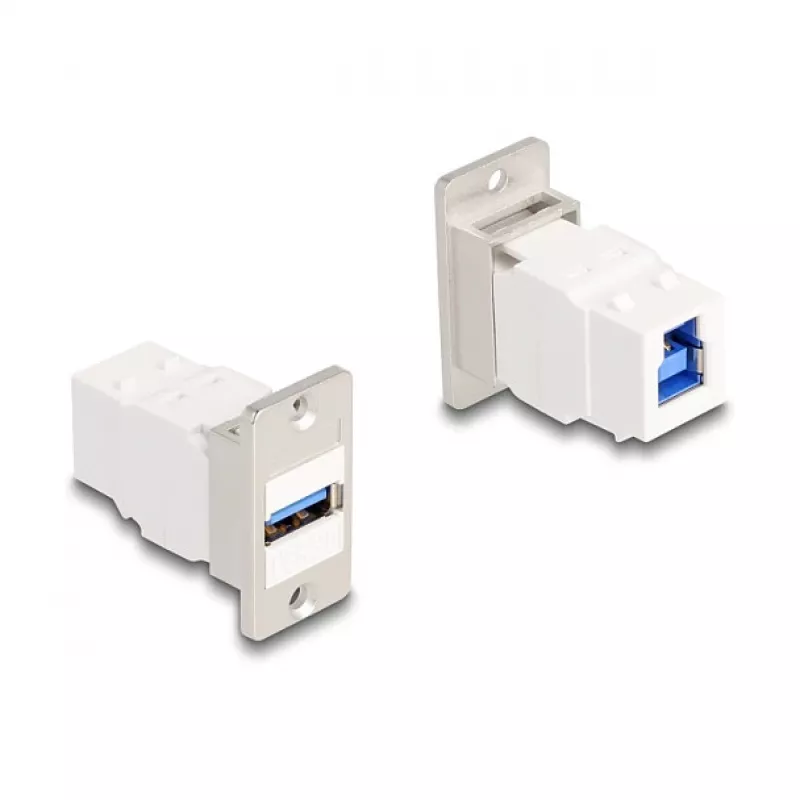

Modulo Keystone per montaggio a pannello DeLOCK USB 5 Gbps Type-A femmina su Type-B femmina

The DeLOCK Panel Mount Keystone Module provides a USB 5 Gbps Type-A female to Type-B female connection in a flat keystone format for installation in housings or switch cabinets. With a compact footprint and a silver-and-white design, the module is designed to extend USB cables and create a reliable panel-mounted USB interface in network and equipment enclosures. Dimensions: 19.2 mm (W) x 37.7 mm (D) x 35.5 mm (H).

Advantages

The flat keystone design allows simple installation into standard keystone cutouts, while the Type-A female to Type-B female pairing supports USB data transfer up to 5 Gbps. The silver and white housing provides a neutral appearance suitable for equipment panels. Compact dimensions make it suitable for limited-space applications.

Suitable for

• Extending USB connections through panel cutouts
• Installation in housings, switch cabinets and equipment racks
• Creating a panel-mounted USB interface for peripherals and devices

Key specifications

• Connector: USB Type-A female to USB Type-B female
• Data rate: up to 5 Gbps
• Form factor: flat keystone module
• Color: silver, white
• Quantity: 1 piece
• Dimensions: 19.2 mm (W) x 37.7 mm (D) x 35.5 mm (H)
• Brand: DELOCK, MPN: 67164, EAN: 4043619671649

How to use

Insert the keystone module into a compatible keystone cutout in the panel or enclosure until it snaps into place. Connect a USB Type-A cable to the Type-A female port and a USB Type-B cable to the Type-B female port to route USB signals through the panel. Ensure secure cable routing and strain relief inside the housing or cabinet to prevent mechanical stress on the connectors.

Recommendations

For optimal performance, use high-quality USB cables rated for 5 Gbps and ensure the connected devices and host controllers support USB 3.0/3.1 data rates. Avoid excessive bending or tension at the connector interfaces and install the module in a compatible keystone opening to ensure a secure fit.
