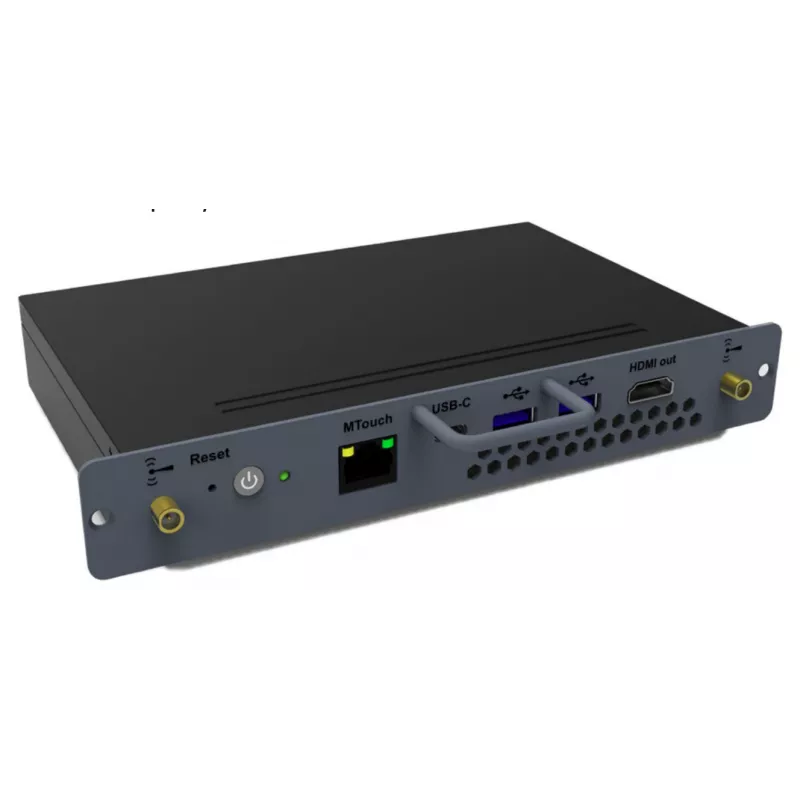

Modulo OPS Windows per la serie MeetingBoard, Yealink Mcore-OPS — Intel i5-1135G7, 8GB DDR4, 128GB SSD, Intel Iris Xe, Wi‑Fi 6

Yealink MCore-OPS is a modular Windows computing module designed for interactive whiteboards and compatible with the MeetingBoard MB65/86 OPS interface. It ships with a customized Microsoft Teams Rooms image and provides onboard processing and storage to run meeting-room software as a secondary system for the display.

Advantages

The module integrates Intel® Core™ i5 processing and Intel Iris Xe integrated graphics to handle conferencing and collaboration applications. It includes 8 GB DDR4 RAM and a 128 GB SSD for responsive performance and local storage. Built-in support for modern standards such as Wi‑Fi 6, TPM 2.0 for platform security, and CEC for display control simplifies connectivity and management when paired with a MeetingBoard.

Suitable for

• Meeting rooms and huddle spaces using Yealink MeetingBoard MB65/86
• Microsoft Teams Rooms deployments requiring a Windows-based OPS module
• Environments needing local processing for conferencing, screen sharing, and annotation

Key specifications

• Processor family: Intel® Core™ i5 (i5-1135G7)
• Memory: 8 GB DDR4 (configured as 2 × 4 GB)
• Storage: 128 GB SSD
• Graphics: Intel Iris Xe integrated graphics (up to 1300 MHz dynamic frequency)
• Wireless: Wi‑Fi 6 (802.11ax) support
• Security and control: TPM 2.0 support and CEC compatibility

How to use

Insert the MCore-OPS module into the OPS slot of a compatible MeetingBoard MB65/86. The module runs a preinstalled Teams Rooms Windows image and can be configured via standard Windows and Teams Rooms setup procedures. Connect power, network (wired or Wi‑Fi 6), and any peripherals required for audio or video; then follow on-screen configuration to join the module to your room account and policies.

Recommendations

For reliable performance in conference settings, use a wired Ethernet connection when available, keep the firmware and Teams Rooms image updated, and ensure adequate ventilation around the OPS slot to maintain optimal operating temperature.
