Modulo presa VGA + 3,5 mm Bachmann 917.150 nero

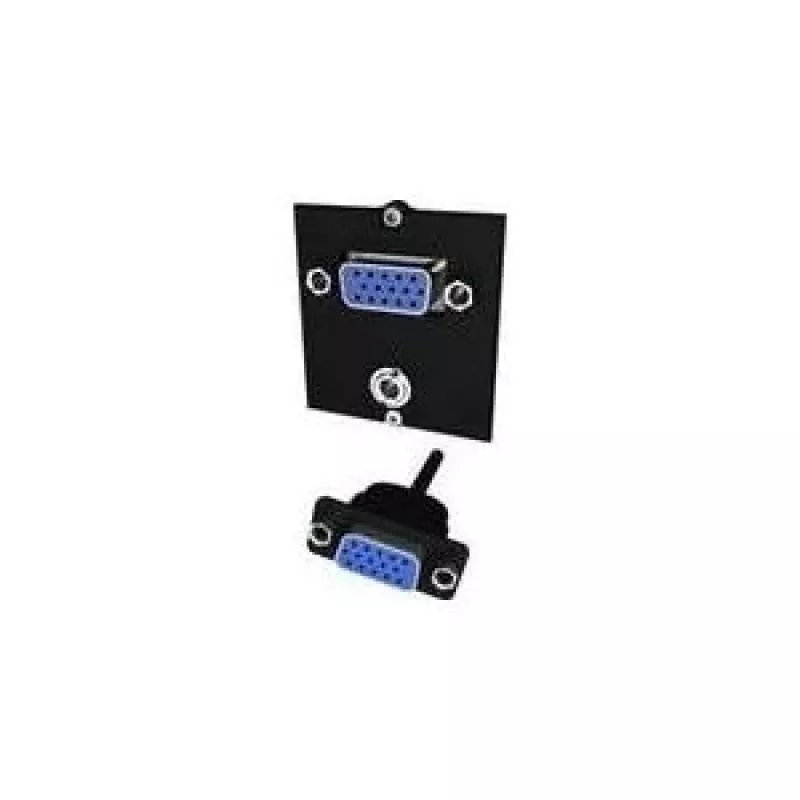

The Bachmann 917.150 Socket outlet VGA + 3.5 mm in black combines a VGA connector and a 3.5 mm audio jack in a compact module designed for fixed installation. The front side offers a VGA socket and a miniature jack, while the rear side provides a VGA plus a miniature jack each on an approx. 0.2 m cable. The unit requires an installation depth of approximately 50 mm and is intended for integration into walls, furniture or conference tables to enable convenient audio–video connections.

Advantages

The module integrates video and analog audio in a single outlet, reducing the need for separate wall plates. Pre-mounted rear cables simplify installation and cable routing. The compact black design fits modern interiors and the 50 mm installation depth suits standard mounting locations.

Suitable for

• Conference rooms and meeting spaces
• Classrooms and lecture halls
• Home theaters and media cabinets
• Workstations and presentation areas

Key specifications

• Manufacturer: Bachmann
• Model / MPN: 917.150
• EAN: 4016514039517
• Connectors (front): VGA socket and 3.5 mm miniature jack
• Rear: VGA + 3.5 mm miniature jack on approx. 0.2 m cable each
• Color: Black
• Required installation depth: approx. 50 mm

How to use

Install the outlet into a compatible mounting box or panel with at least 50 mm depth. Route the pre-attached rear cables to the corresponding devices or distribution points and secure the module in place according to mounting instructions. Connect the VGA and 3.5 mm cables to the source or destination equipment to establish video and analog audio transmission.

Recommendations

For optimal signal quality, keep VGA cable lengths as short as practical and avoid running cables parallel to strong electromagnetic sources. Use good-quality shielded extension cables if longer runs are required.
