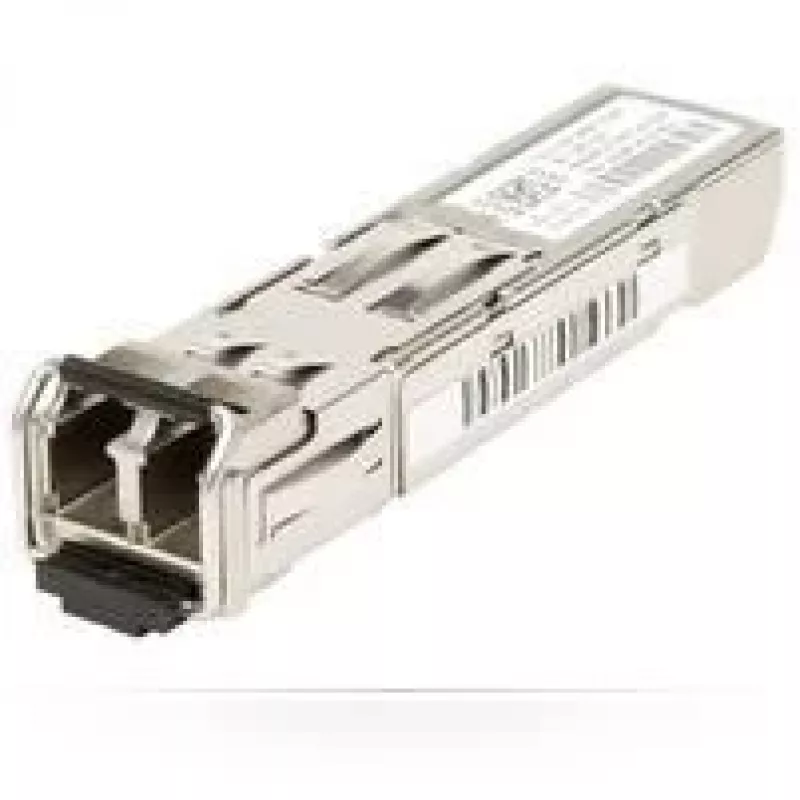

Modulo ricetrasmettitore di rete Lanview MO-SFP2216CS 1000 Mbit/s SFP 850 nm

The Lanview MO-SFP2216CS is a MicroOptics 1000BASE-SX SFP transceiver module designed for gigabit Ethernet links. It supports 1000 Mbit/s data transfer at an 850 nm wavelength and uses a dual LC/PC connector for multimode fiber connections. The module is listed as 100% Cisco compatible and supports an extended operating temperature range and DOM (Digital Optical Monitoring), making it suitable for standard and industrial networking environments.

Advantages

This SFP module provides reliable 1000BASE-SX performance with an LC connector and DOM support for real-time monitoring of optical parameters. Its extended operating temperature range improves stability in wider environmental conditions, and confirmed Cisco compatibility ensures interoperability with many switches and routers from the Catalyst series.

Suitable for

• Gigabit Ethernet links over multimode fiber
• Upgrading or expanding network switches and routers with SFP ports
• Environments requiring DOM monitoring and extended temperature operation

Key specifications

• Brand: MicroOptics (Lanview MO-SFP2216CS)
• Model / MPN: SFP-GE-S
• Interface type: SFP
• Maximum data transfer rate: 1000 Mbit/s
• Wavelength: 850 nm
• Connector: Dual LC/PC
• Features: 100% Cisco compatible, DOM support, extended operating temperature range

How to use

Insert the MO-SFP2216CS module into an available SFP port on a compatible switch or router until it locks into place. Connect multimode fiber cables with LC/PC connectors to the module’s dual LC ports, observing correct polarity. After installation, verify link status through the device management interface and, if available, check DOM values for optical power and temperature to confirm correct operation.

Recommendations

Use the module with compatible SFP ports from supported vendors (for example, Cisco Catalyst series). Ensure multimode fiber of appropriate grade (e.g., OM1–OM4) is used for 850 nm 1000BASE-SX links, and follow equipment vendor guidelines when operating in extended temperature environments.
