Modulo SFP InLine 32335I 1310nm monomodale 40km 2.5Gb/s

Long range for fibre optic connections:With a range of up to 40 km, ideal for long-distance and backbone applications.
High compatibility thanks to MSA standard:Supports the Multi-Source Agreement (MSA) standard for flexible integration into existing SFP slots of common network devices.
Stable data transmission at 2.5 Gb/s:Optimised for reliable transmission on single-mode fibre in the 1310 nm wavelength range.
Easy integration thanks to LC duplex connection:The LC connector enables fast and secure connection with minimal space requirements.
Hot-plug capable for uninterrupted installation:Replacement or integration during operation without system restart possible.

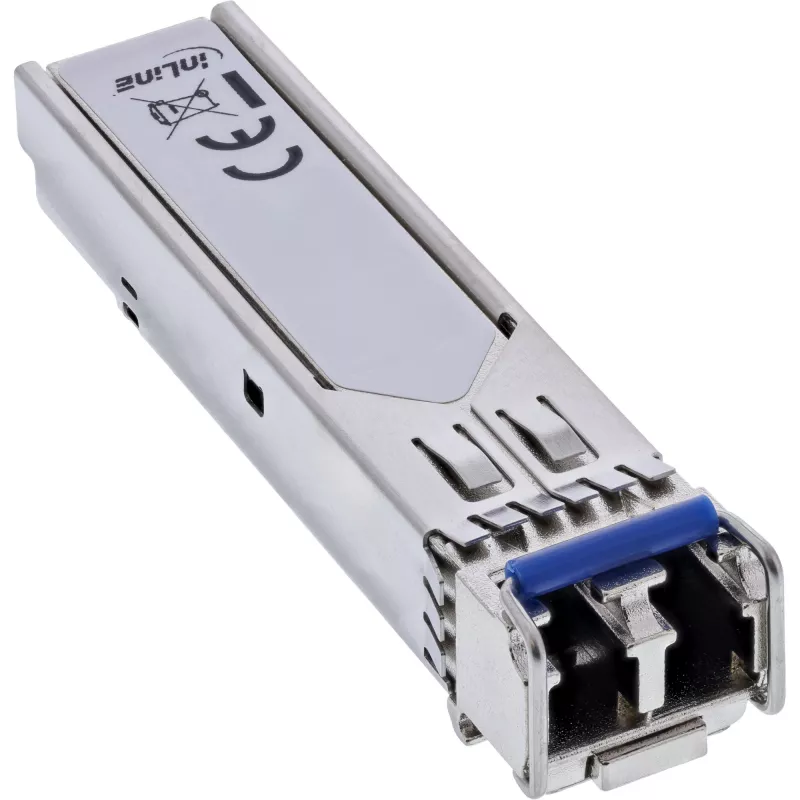

The InLine® SFP Module 32335I is a powerful 2.5G 1310nm LX transceiver for use in professional fibre optic applications over single-mode fibres. With a transmission distance of up to 40 km, the module offers a reliable solution for long-distance connections in data centres, company campuses or industrial networks.
The transceiver is MSA-compliant and supports the SFP form factor according to SFF-8472. It is suitable for applications such as STM-16, SDH/SONET, ATM switches or fibre channel connections. The combination of LC duplex connection, hot-plug capability and industrial temperature range from 0°C to 70°C enables flexible and robust integration into existing systems.
The transmitter unit with DFB laser operates at 1310 nm and delivers -2 to +3 dBm power, while the receiver unit uses a PIN-TIA detector with -20 dBm sensitivity – for a strong, interference-free fibre optic connection with up to 2.5 Gb/s.

Form factor: SFP (Small Form Factor Pluggable)
Transmitter wavelength: 1310 nm
Receiver wavelength: 1260–1610 nm
Compatibility: SFF-8472, MSA
Laser class: Class 1, according to IEC-60825
Extinction ratio: typ. 8.2 dB
Supply voltage: 3.3 V ±5%
Operating temperature: 0 °C to +70 °C
Current consumption: max. 300 mA
Compatible applications: STM-16, Fibre Channel, SDH/SONET, ATM

Note on coding:
Our SFP modules are factory-coded – whether for Cisco, Intel or other systems, which may limit your choice.
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.

InLine 32335I. SFP transceiver type: Fiber optic, Maximum data transfer rate: 2500 Mbit/s, Interface type: SFP. Compliance certificates: CE, TÜV mark. Width: 59 mm, Depth: 0.17 mm, Height: 13 mm. Package width: 60 mm, Package depth: 90 mm, Package height: 20 mm. Dimensions (WxDxH): 59 x 0.17 x 13 mm

How to use

Install the SFP module into an available SFP port on compatible network equipment while the host device is powered on or off according to the device manual; the hot-pluggable design permits live replacement in most systems. Connect a singlemode LC duplex patch cable between the module and the remote optical device. Verify link status and data rate in the host device management interface and confirm optical parameters such as received power and alarms if the device provides monitoring. Ensure fiber polarity and connectors are correct before powering on active endpoints.

Recommendations

For reliable operation, use singlemode fiber compliant with relevant ITU-T standards and high-quality LC duplex patch cords. Keep transceiver dust caps on when not in use, avoid excessive bending of the fiber, and confirm host device compatibility with 2.5 Gb/s SFP modules. If link margin or distance is critical, verify attenuation and consider fiber testing to ensure the 40 km reach under installed conditions.
