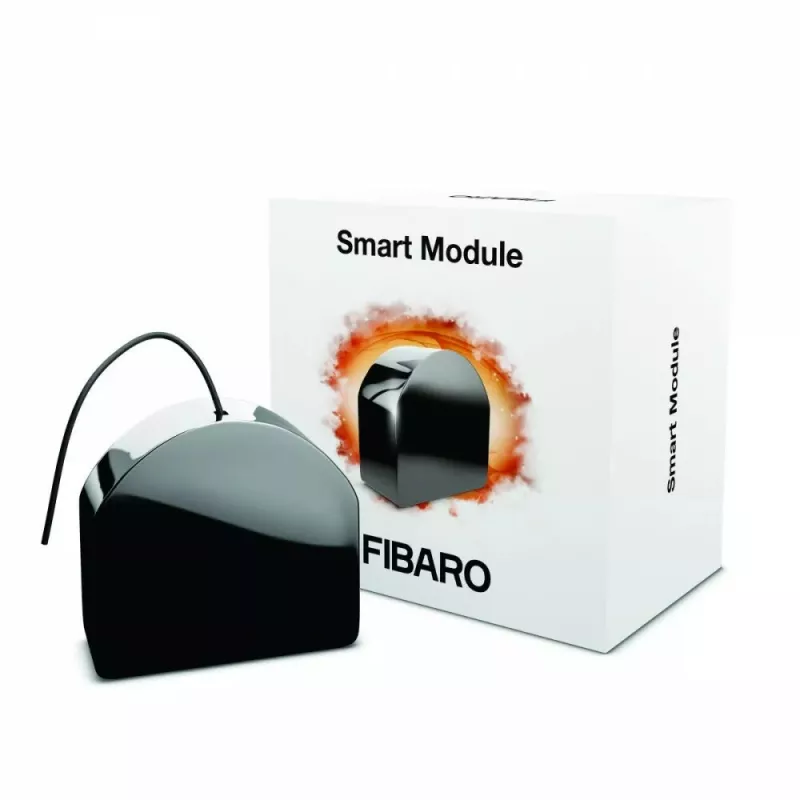

Modulo smart Fibaro FGS-214 Z-Wave Plus EU – modulo relè per montaggio su guida DIN/parete, max. 2,5 kW

Fibaro FGS-214 is a Z-Wave Plus smart relay module for remote control and automation of electrical circuits. Designed for installation in junction boxes or DIN-style housings, the module supports both wireless control via a Z-Wave network and local control with physical buttons. It fits into tight spaces thanks to compact dimensions and is suitable for switching lighting and small household loads up to 2.5 kW.

Advantages

The Smart Module offers a compact form factor that allows installation inside existing device housings or junction boxes. It supports secure Z-Wave communication (S0 and S2 Authenticated) and can act as a Z-Wave signal repeater to extend network range. The device is compatible with a wide range of switches and buttons, supports resistive and incandescent loads, and provides recommended wiring and operating parameters for reliable performance.

Suitable for

• Remote switching of lighting circuits
• Control of small household appliances
• Integration into home automation scenes with Z-Wave hubs
• Installation inside junction boxes or DIN-mount housings

Key specifications

• Power supply: 100–240 V
• Maximum load per channel: Smart Module (FGS-214) up to 2.5 kW; Double Smart Module (FGS-224) 6 A per channel, 9.5 A total (reference)
• Compatible load types: resistive or incandescent
• Recommended wire cross-section: 0.2–2.0 mm²; maximum wire length: 3 m
• Operating temperature: 0–35 °C; ambient humidity: 0–95 %
• Radio protocol: Z-Wave (500 series chip), frequency bands 868.0–868.6 MHz and 869.7–870.0 MHz
• Max. transmitting power: +5 dBm; range: up to 50 m outdoors, up to 40 m indoors
• Dimensions (H×W×D): 42.5 × 38.25 × 20.3 mm
• Net weight: 0.03 kg; gross weight: 0.06 kg; packing quantity: 1 pc
• Compliance: EU directives 2011/65/EU, 2015/863, 2014/53/EU
• Warranty: 24 months

How to use

Install the Fibaro FGS-214 inside a junction box or compatible DIN-style housing, following local electrical regulations. Connect supply and load wires using the recommended cross-section (0.2–2.0 mm²) and keep wire lengths within specified limits. Pair the module with a Z-Wave controller according to the controller’s inclusion procedure to enable remote control and scene integration. Local buttons can be wired directly to the module to allow manual switching in addition to wireless control.

Recommendations

For reliable operation, use the module with compatible Z-Wave Plus controllers and ensure wiring and load types match the device specifications. Do not exceed the rated load; install the module in ventilated junction boxes and observe the operating temperature and humidity ranges.
