Relè per guida DIN Wave Pro 1, max. 16 A, 1 fase, 1x 16 A, Z-Wave

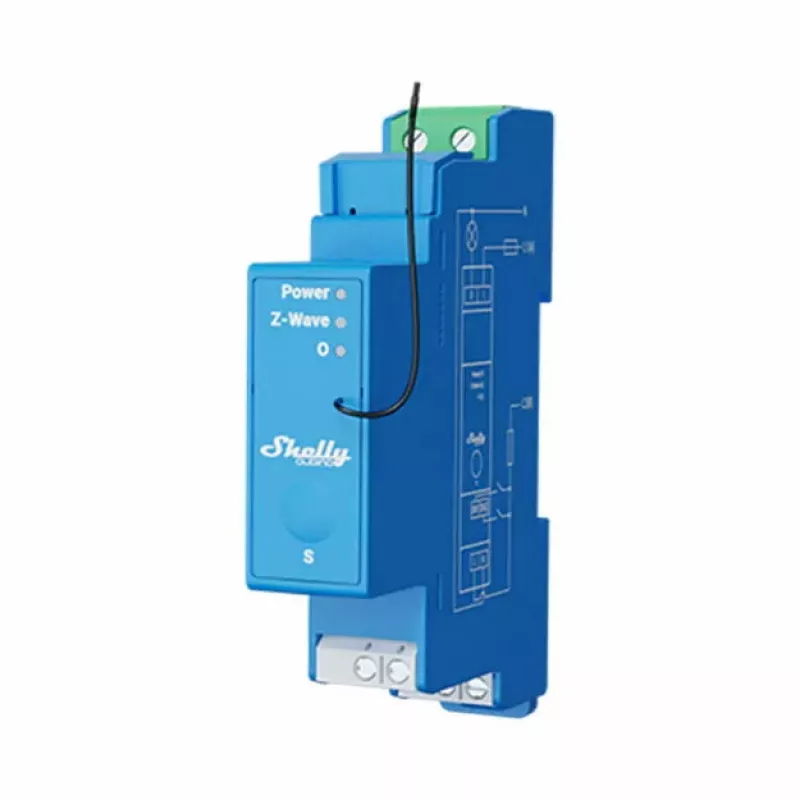

The Shelly Qubino Wave Pro 1 is a professional 1-channel DIN-rail Z-Wave solid-state relay with potential-free (dry) contacts, designed for home and facility automation. It supports one-phase loads up to 16 A and operates at 110–240 V AC, making it suitable for lighting and appliance control in residential, commercial, and industrial settings. The device is DIN-rail mountable for installation inside a breaker box and uses the latest Z-Wave S800 chip for wide compatibility with certified Z-Wave gateways and devices.

Advantages

Wave Pro 1 offers voltage-independent dry contacts for flexible integration with various AC systems, secure Z-Wave S2 Authenticated communication, and DIN-rail form factor for neat installation inside distribution boards. The relay supports associations for direct device-to-device actions, automated schedules and scenes for energy optimization, and built-in protections such as temperature, overpower and overvoltage safeguards, plus automatic shutdown on overheating with notification.

Suitable for

• Automated lighting control in homes, offices, stores, and common areas
• Switching sockets and appliances to reduce standby energy consumption
• Integration into commercial or industrial distribution boards (DIN-rail)
• Scenarios requiring secure Z-Wave connectivity and device associations

Key specifications

• Brand: Shelly (Qubino)
• Model / MPN: WavePro1
• Type: Solid-state relay, 1 channel
• Output: Dry (potential-free) contacts
• Maximum load: 16 A
• Operating voltage: 110–240 V AC
• Mounting: DIN-rail (breaker box)
• Z-Wave chipset: S800 (Z-Wave S2 support)
• EAN: 3800235269091

How to use

Install the Wave Pro 1 on a standard DIN rail inside the breaker or distribution box following local electrical regulations. Connect the incoming supply and the load to the device using the dry contact terminals; because the outputs are potential-free, you can switch different voltage circuits as required. Include the device in your Z-Wave network with a compatible Z-Wave gateway, configure associations, scenes, schedules or direct device-to-device actions as needed, and control the relay remotely from your hub or mobile app.

Recommendations

For reliable and safe operation, have the device installed by a qualified electrician, ensure the load does not exceed 16 A, and use Z-Wave S2-compatible gateways to enable encrypted communication. Use schedules and motion-triggered associations to optimize energy consumption in common areas and set protective thresholds for temperature, overpower and overvoltage where applicable.
