Modulo UPS OnLine DIGITUS 2000VA / 2000W

Modulo UPS OnLine DIGITUS 2000VA / 2000W
Modulo UPS OnLine DIGITUS 2000VA / 2000W
Modulo UPS OnLine DIGITUS 2000VA / 2000W
Modulo UPS OnLine DIGITUS 2000VA / 2000W
Modulo UPS OnLine DIGITUS 2000VA / 2000W
Modulo UPS OnLine DIGITUS 2000VA / 2000W
Modulo UPS OnLine DIGITUS 2000VA / 2000W
Modulo UPS OnLine DIGITUS 2000VA / 2000W
Modulo UPS OnLine DIGITUS 2000VA / 2000W
Modulo UPS OnLine DIGITUS 2000VA / 2000W
500,25 €
PDF
PDF
Stock 2 Codice 300091 Modello DN-170095 Garanzia 2 anni

Spedizioni e resi

Consegna stimata mercoledì 2 dicembre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Fai una domanda – l'assistente AI risponde subito.

Descrizione

The OnLine UPS is an ideal backup solution for your demanding power requirements and offers high reliability in various industrial applications.

- High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
- High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

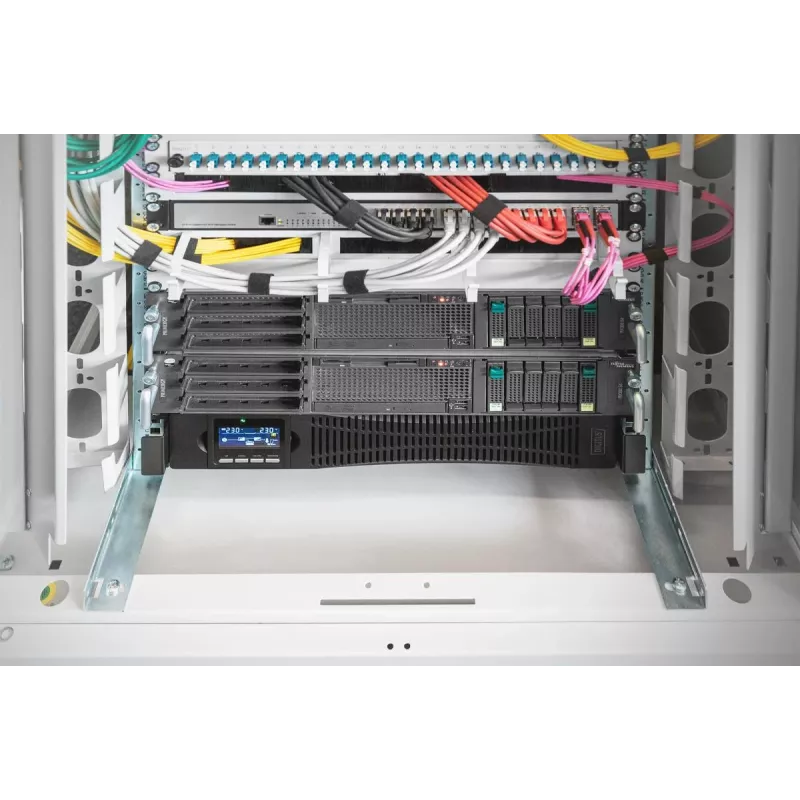

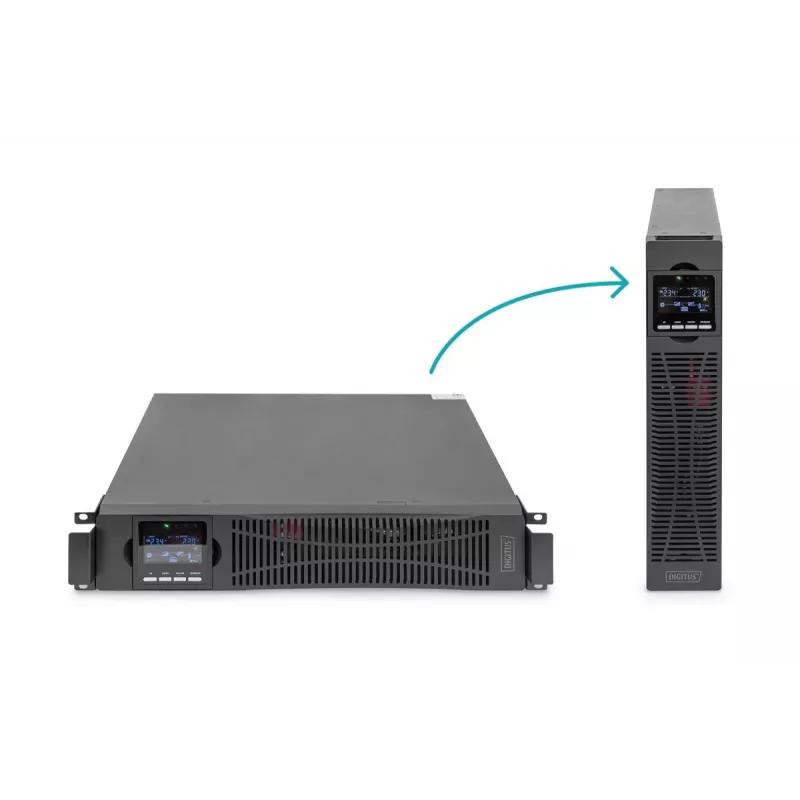

- Compact rack/tower design optimizes the installation space in the rack and enables flexible installation.
- Minimize device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation.
- External battery modules allow the runtime to be extended.
- High number of outlets (8 x C13) for optimum power distribution to the consumers.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system.
- Automatic battery self-test and fan speed control increase the service life of the components.
- The REPO function (Remote Emergency Power Off) switches the UPS off in the event of an emergency. If an emergency occurs, the REPO switch turns off the rectifier and the inverter and immediately stops the power supply to the load. The UPS stops charging.

The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and unity power factor, the UPS meets your critical application requirements.

Punti salienti
  • Online double conversion system (VFI-SS-111)
  • Input: IEC60320 C20 socket, 208/220/230/240 Vac

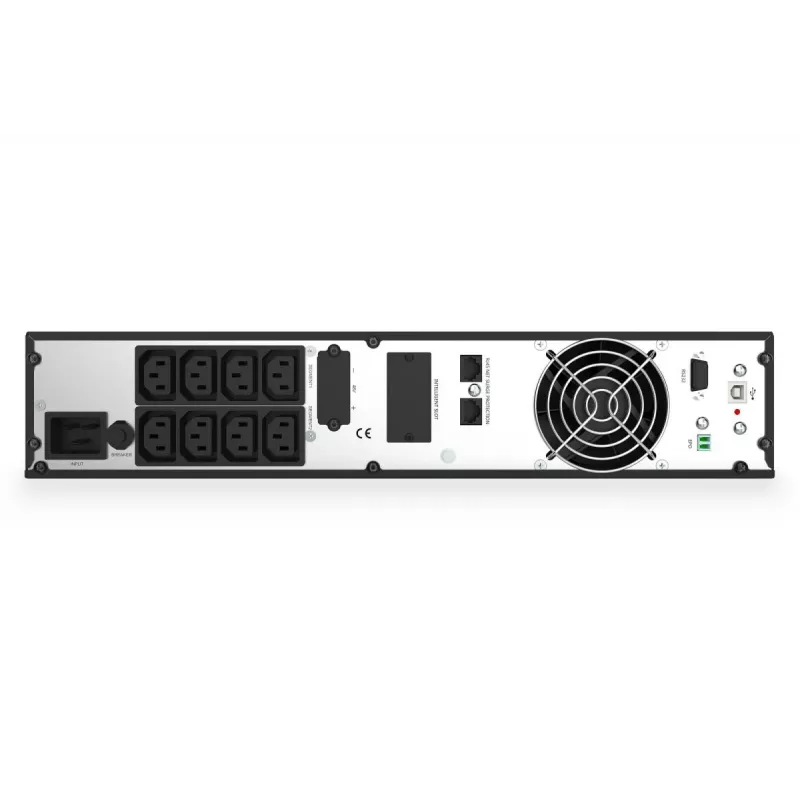

  • Output: 8 x IEC60320 C13, max. 10A per socket outlet
  • Nominal system power: 2000 VA / 2000 W, power factor 1.0
  • AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %.
  • Internal battery pack can be replaced during operation.
  • Battery: Valve-protected, non-spillable lead-acid battery
  • Battery quantity: 4 x 12V x 9.0 Ah
  • Charging: 4 hours to 90% capacity after full discharge
  • Network connection: Optional SNMP/Webcard (part number DN-170100) enables the UPS to be monitored remotely.
  • Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
  • Emergency Power-off (EPO) contact for switching off the UPS in an emergency
  • Maximum operating temperature: 0 - 40 °C
  • Storage temperature: -25 - 55 °C
  • Relative humidity: 20 - 90% non-condensing
  • Operating altitude: < 1500 m
  • Product dimensions WxDxH (mm): 440 (19") x 460 x 86.5 (2U)
  • Product weight: 19.5 kg
  • Shipping dimensions WxDxH (mm): 560 x 590 x 200
  • Shipping weight: 23.7 kg
  • Safety standards: IEC/EN62040-1,IEC/EN60950-1
  • EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
  • Optionally available: 19" UPS mounting kit (profile rails), article number DN-170109
  • IP protection class: IP21
  • Heat dissipation: 614 BTU/h
  • Noise level in online mode: approx. 50 dB(A) at a distance of 1 m (may vary slightly depending on load and ambient temperature).

Specifiche

Specifiche
Altezza
86.5 mm
Altezza confezione
200 mm
Altitudine di esercizio
0 - 1500 m
Capacità della batteria
9 Ah
Capacità di potenza in uscita
1,5 kVA
Cavi inclusi
RS-232, cavo USB
Cavo di alimentazione staccabile
Sì
Codice tariffario doganale UK
85044085
Colore del prodotto
Nero
Connettore spegnimento di emergenza (EPO)
Sì
Corrente massima
10 A
Dimensioni (pollici)
48.3 cm (19")
Efficienza
93%
Efficienza (modalità ECO)
98%
Fattore di potenza
1
Formato
Rackmount
Kit di montaggio a rack
Sì
Larghezza
440 mm
Larghezza confezione
555 mm
Manuale
Sì
Numero di batterie supportate
4
Numero di porte seriali
1
Numero di prese CA
8 prese CA
Paese di origine
China
Peso
19.5 kg
Peso confezione
22.9 kg
Porta USB
Sì
Porte Ethernet LAN (RJ-45)
2
Potenza di uscita
2000 W
Profondità
460 mm
Profondità confezione
595 mm
Spina di alimentazione
accoppiatore C20
Temperatura di esercizio (T-T)
0 - 40 °C
Temperatura di stoccaggio (T-T)
-25 - 55 °C
Tempo di ricarica della batteria (90%)
4 h
Tensione della batteria
12 V
Tensione di esercizio in ingresso (max.)
240 V
Tensione di esercizio in ingresso (min.)
208 V
Tipi di prese CA
accoppiatore C13
Tipo di connettore USB
USB Type-B
Tipo di display
LCD
Tipo di fonte di alimentazione
AC
Tipo di interfaccia seriale
RS-232
Tipo di raffreddamento
Attivo
Topologia UPS
A doppia conversione (online)
Umidità relativa di esercizio (H-H)
20 - 90%
Umidità relativa di stoccaggio (H-H)
20 - 90%
Ventola integrata
Sì
Volume della confezione
66705.5 cm³
