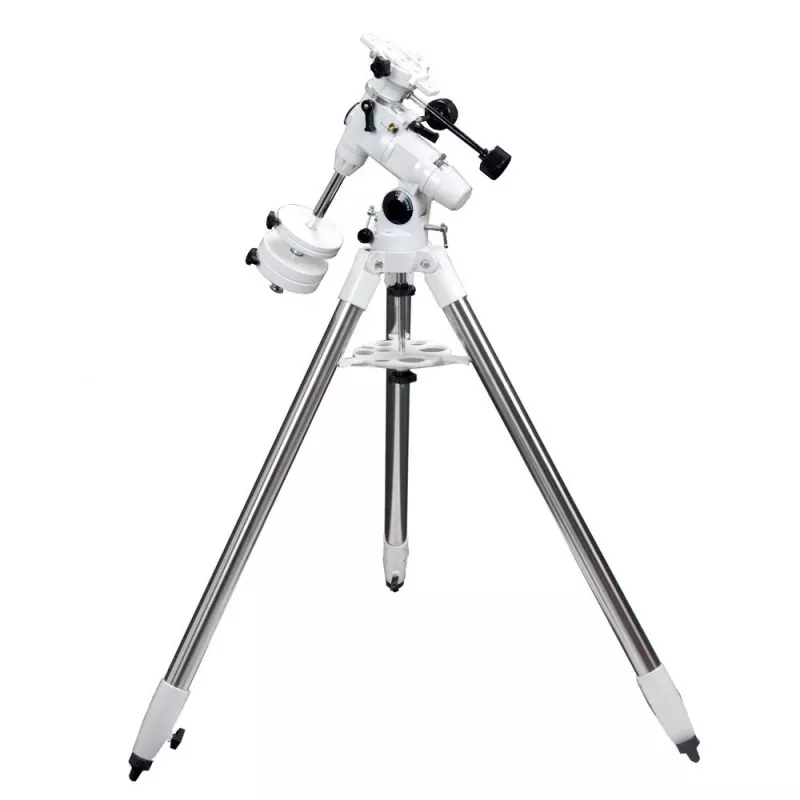

Montatura equatoriale EQ3-2 con treppiede in acciaio, Sky-Watcher SW-4132

Equatorial Mount EQ3-2 with Steel Tripod, Sky-Watcher SW-4132 is a motor-capable equatorial telescope mount supplied with a robust steel tripod. Designed for amateur astronomy, the mount enables polar alignment to track celestial objects with improved accuracy compared to alt-azimuth setups. It accepts a range of small to medium optical tubes and accessories, and it is suitable for visual observing and basic astrophotography when paired with compatible motors and cameras.

Advantages

The mount offers a stable steel tripod that reduces vibration and provides steady support for typical amateur telescope tubes. Polar alignment capability allows more accurate tracking of stars and planets, while the motor-ready design enables the addition of drive units for automatic right ascension tracking. The construction balances portability with rigidity, making it practical for backyard observing and field use.

Suitable for

• Visual observation of the Moon, planets and brighter deep-sky objects
• Beginner-level astrophotography with short exposure times and guide support
• Portable backyard or field astronomy sessions
• Use with small to medium optical tubes and common accessories

Key specifications

• Mount type: German equatorial mount with polar alignment capability
• Tripod: steel construction for improved stability
• Drive capability: motor-ready right ascension axis for automatic tracking
• Payload: suitable for small to medium amateur optical tubes (see manufacturer compatibility)
• Adjustment controls: manual slow-motion or setting circles for target tracking and pointing
• Portability: designed for field use with foldable tripod legs and manageable weight

How to use

Set up the steel tripod on firm, level ground and secure the mount head to the tripod. Balance the optical tube on the mount’s saddle and lock the axes. Perform coarse polar alignment by pointing the polar axis toward the celestial pole using the mount’s latitude adjustment. Fine-tune alignment using polar scope or drift method if available. If a motor drive is installed, connect and configure it according to the drive unit instructions to enable automatic right ascension tracking. Use slow-motion controls or setting circles for manual tracking and target centering during observation sessions.

Recommendations

For stable imaging and longer exposures, add a compatible motor drive and, where appropriate, an autoguider. Always balance the optical tube before locking the axes to reduce strain on bearings. Transport the mount with care and tighten all knobs before observing to maintain alignment and prolong component life.
