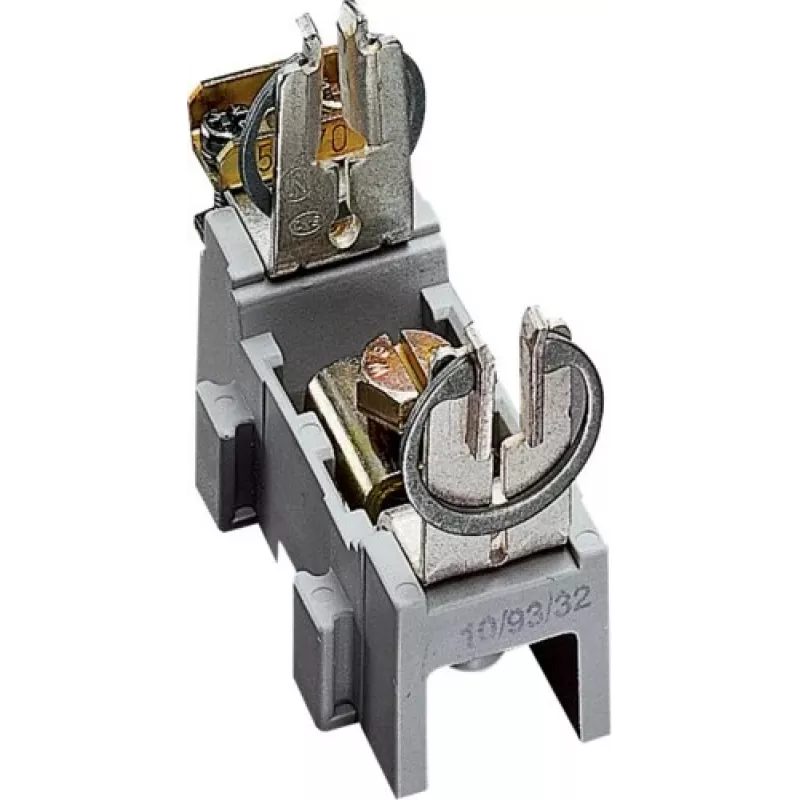

Morsetto neutro Hager L01R 14 vie 100A 400V blu

With a rated operational current of 100 A and a 25 mm² main conductor capacity, the Hager L01R neutral conductor terminal block is built to handle demanding electrical distribution tasks with confidence. This 14-way block provides a central, reliable point for neutral connections in consumer units and enclosures, ensuring safe and tidy wiring.

Overview

The Hager L01R is a 1-pole neutral conductor terminal block engineered for DIN rail or direct mounting. It features 14 screw terminals: one main terminal accepting rigid conductors up to 25 mm² and 13 branch terminals accepting up to 16 mm² each. The block is rated for 400 V AC and complies with IEC 60947-7-1, making it suitable for indoor, dry environments. Its blue insulating plastic body and brass terminals combine durability with clear identification.

What stands out

• High current capacity: 100 A rated operational current for robust performance.
• Generous conductor sizes: 1 x 25 mm² main and 13 x 16 mm² branch connections.
• Secure screw terminals ensure vibration-resistant, maintenance-free connections.
• Compact DIN rail design saves space in distribution boards.
• Blue colour coding for quick identification of neutral conductors.

Technical details

• Terminal type: Neutral conductor terminal block
• Number of connections: 14
• Main conductor cross-section (rigid): 1 x 25 mm²
• Branch conductor cross-section (rigid): 13 x 16 mm²
• Connection method: Screw terminal
• Rated operational current (Ie): 100 A
• Rated operational voltage (Ue): 400 V AC
• Mounting: DIN rail / direct mounting
• Colour: Blue
• Material (body): Insulating plastic
• Material (terminals): Brass
• Degree of protection: IP20 (when installed)
• Standard compliance: IEC 60947-7-1
• Number of poles: 1
• Application environment: Indoor, dry locations
• Compatibility: Designed for Hager consumer units and enclosures

Our verdict

The Hager L01R is a reliable and robust choice for electricians needing a high-capacity neutral terminal block. Its straightforward screw connections and solid construction make installation quick and secure, while the 100 A rating ensures it meets the demands of modern electrical installations.
