Morsetto per canale portacavi con funzionalità OBO Bettermann LKM KF 60100 (6249881)

Hot-dip galvanised steel clamp for cable trays with 60 mm height and 100 mm width, tested to DIN 4102-12 for functional integrity in fire conditions up to E90.

Overview

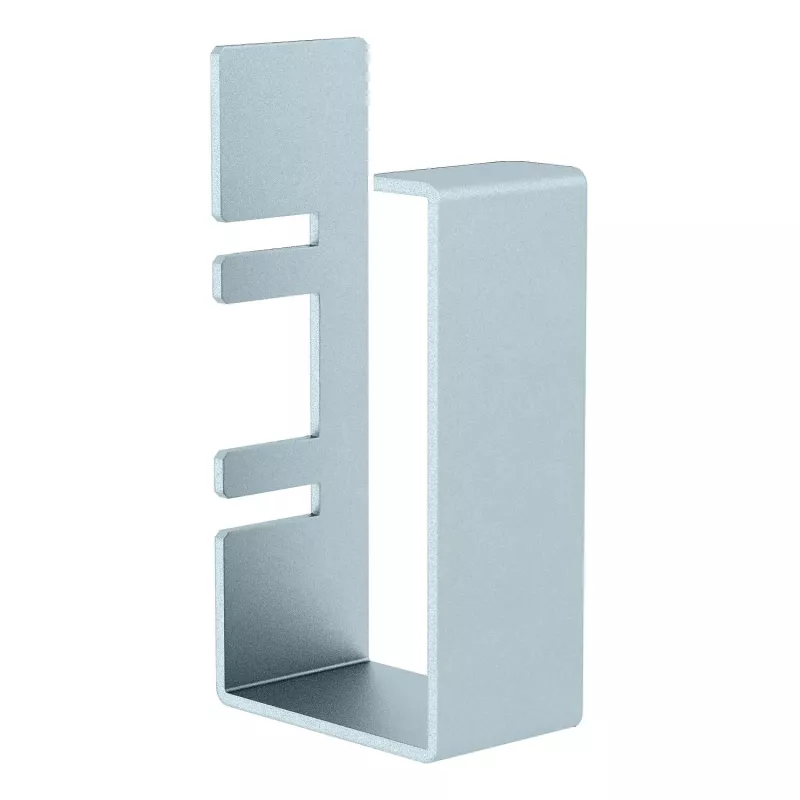

The OBO Bettermann LKM KF 60100 is a vertical cable tray clamp designed for wall and ceiling mounting, ensuring the functional integrity of cable support systems during fire. Its hot-dip galvanised finish provides corrosion protection, making it suitable for outdoor use and harsh environments.

What stands out

• Fire resistance tested according to DIN 4102-12, achieving E30, E60, or E90 when part of a certified system.
• Robust steel construction with hot-dip galvanisation for long-term durability.
• Compatible with cable trays of 60 mm height and 100 mm width.
• Halogen-free and UV resistant, suitable for a wide temperature range from -50 to +150 °C.

Technical details

• Material: Steel
• Surface treatment: Hot-dip galvanised
• Compatible cable tray height: 60 mm
• Compatible cable tray width: 100 mm
• Fire resistance standard: DIN 4102-12
• System fire resistance class: E30, E60, E90
• Mounting type: Wall and ceiling
• Temperature range: -50 to +150 °C
• Halogen-free: Yes
• UV resistant: Yes
• Suitable for outdoor use: Yes

Our verdict

A reliable component for functional integrity systems, this clamp ensures cable trays remain secure during fire, meeting stringent safety standards.
