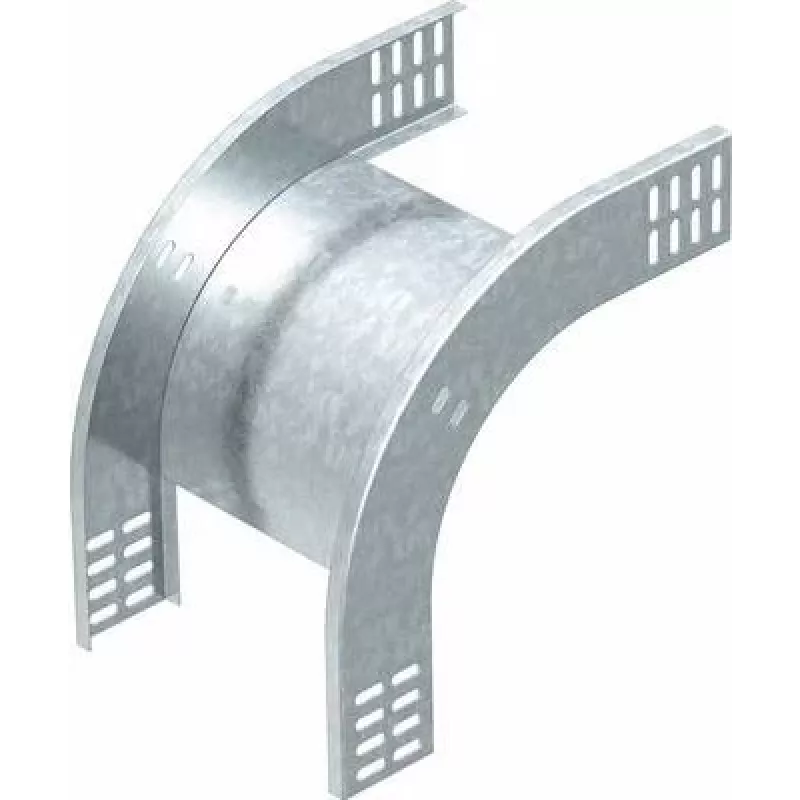

OBO Bettermann curva verticale RBV 610 F FS 90° verso il basso 60x100mm zincato a caldo 7007055

Vertical bend for cable tray systems, engineered to provide a reliable 90° downward change in direction for cable routing. This OBO Bettermann component ensures smooth cable transition while maintaining system integrity and corrosion resistance.

Advantages

The hot-dip galvanized finish conforms to DIN EN ISO 1461, offering exceptional protection against corrosion and UV radiation, making it suitable for both indoor and outdoor installations. Its precise 90° downward bend with a 300 mm radius minimizes cable stress and facilitates neat, organized cable management. The steel construction delivers high mechanical strength and long-term durability.

Suitable for

• Industrial cable tray installations requiring vertical downward transitions
• Outdoor environments exposed to weather and UV
• Projects demanding high corrosion resistance per DIN EN ISO 1461
• OBO Bettermann cable tray systems with 60 mm side height and 100 mm width

Key specifications

• Product type: Vertical bend
• Bend angle: 90°
• Bend direction: Downward (fallend)
• Compatible cable tray side height: 60 mm
• Compatible cable tray width: 100 mm
• Bend radius: 300 mm
• Material: Steel
• Surface protection: Hot-dip galvanized
• Galvanization standard: DIN EN ISO 1461
• Colour: Metallic (silver-grey)
• Mounting type: Screw connection to cable tray

Recommendations

For optimal performance, pair this vertical bend with OBO Bettermann cable trays of matching dimensions and secure with appropriate fasteners. Ensure proper alignment to maintain cable bend radius and avoid excessive tension.
