Motore Eurolite 50301503 carico massimo 10 kg diametro massimo sfera 50 cm

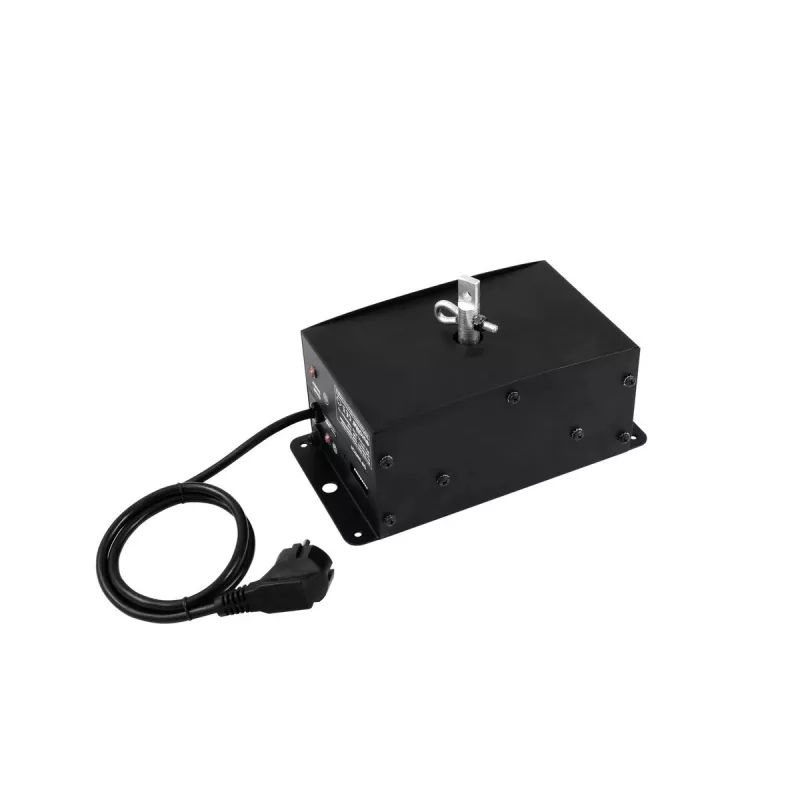

The Eurolite 50301503 mirror ball motor supports up to 10 kg, suitable for mirror balls with a maximum diameter of 50 cm. The compact AC-driven unit consumes 13 W and is delivered ready to use with safety plug and power cord. It includes patented mechanical drop protection and a second eyelet for a safety chain and complies with DIN EN ISO 12100 and relevant accident prevention regulations, making it suitable for discotheques and public events.

Advantages

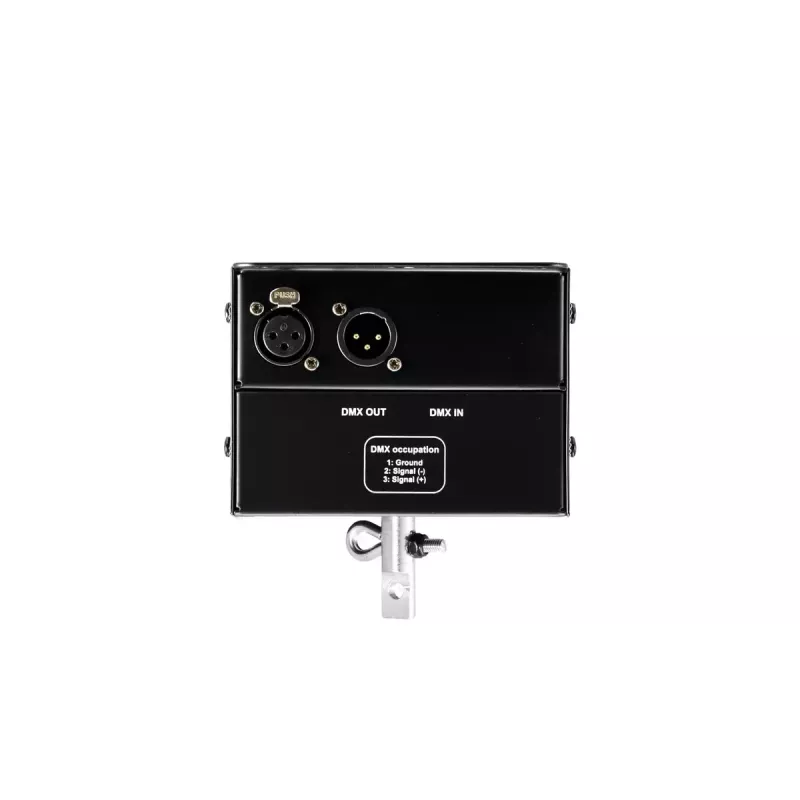

The motor features adjustable speed for slow or faster rotation, selectable rotation direction, and control via DIP switches or any standard DMX controller. It allows master-slave operation for synchronized multi-device setups without external control. Built-in safety elements—patented drop protection and a dedicated safety-chain eyelet—plus production quality checks ensure reliable performance under professional use.

Suitable for (tasks / use cases)

Key specifications

How to use

Install the motor securely to a suitable truss or rigging point, attach the mirror ball to the axis, and fix a safety chain to the secondary eyelet. Connect the power plug to AC mains and switch the unit on. Adjust rotation speed and direction using the DIP switches or connect to a DMX controller for remote operation. For synchronized operation of multiple motors, set master-slave mode as required.

Recommendations

Verify the mirror ball weight and diameter before installation to ensure they do not exceed 10 kg / 50 cm. Regularly inspect the mechanical drop protection, safety eyelet, and power cord. Use certified rigging points and follow local safety regulations for installations in public venues.
